2025 Yamaha MT09 (MT09SL) Steering Handle & Cable Diagram

← All diagrams

Find the part on the Steering Handle & Cable diagram for your 2025 Yamaha MT09 (MT09SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

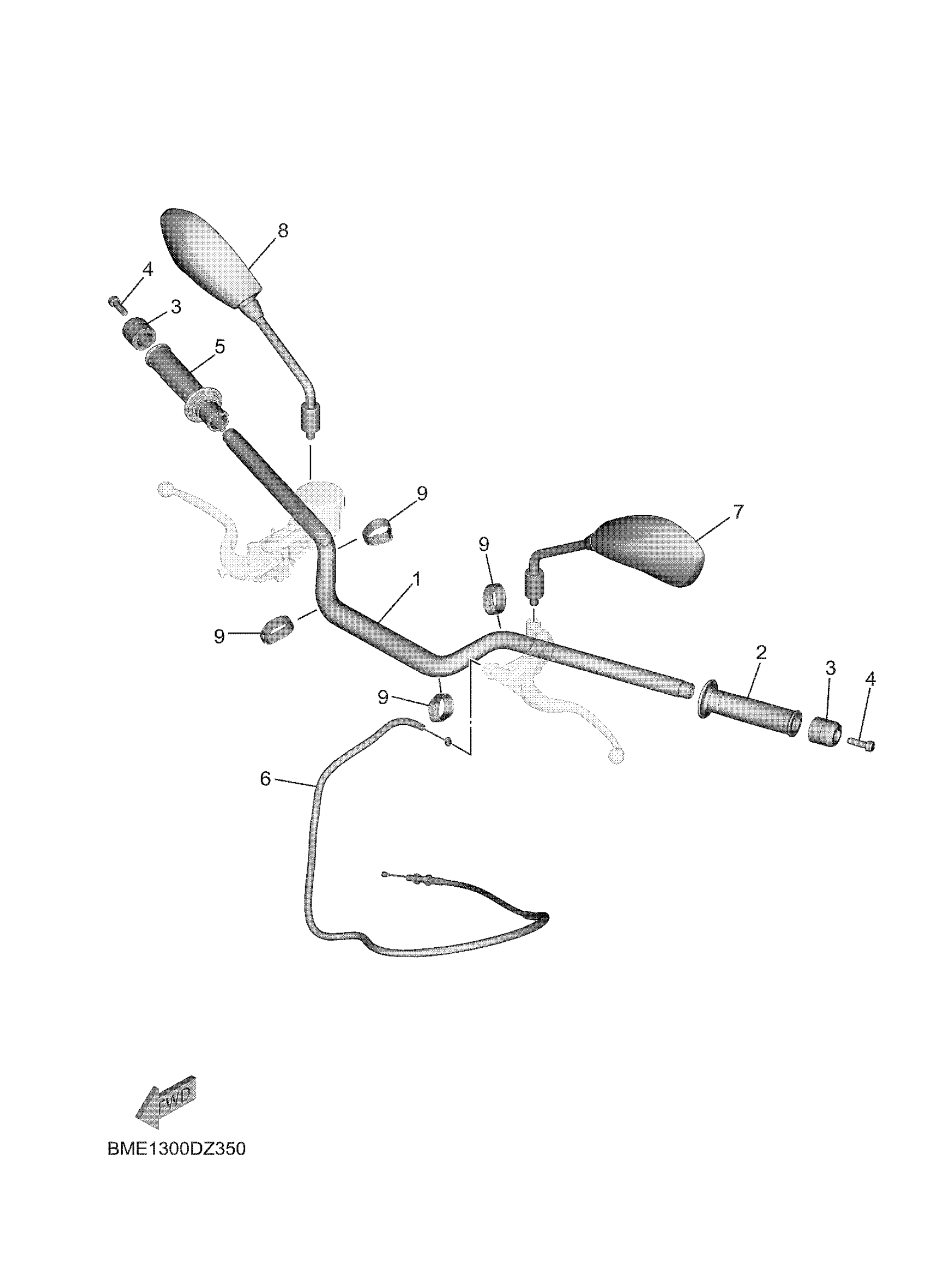

2025 Yamaha MT09 (MT09SL) Steering Handle & Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

BME-26111-00-00

1
Out of stock

2

GRIP

2C0-26241-00-00

—
Out of stock

3

END, GRIP 2

BME-2624B-00-00

—
Out of stock

4

BOLT, SOCKET

91317-08025-00

1
Out of stock

5

GRIP ASSY

BME-26240-00-00

1
Out of stock

6

WIRE, CLUTCH

BME-26335-00-00

1
Out of stock

7

REAR VIEW MIRROR ASSY (LEFT)

BME-F6280-00-00

1
Out of stock

8

REAR VIEW MIRROR ASSY (RIGHT)

BME-F6290-00-00

1
Out of stock

9

BAND

B5U-82591-00-00

1
Out of stock
