2025 Yamaha MT09 (MT09SL) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2025 Yamaha MT09 (MT09SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

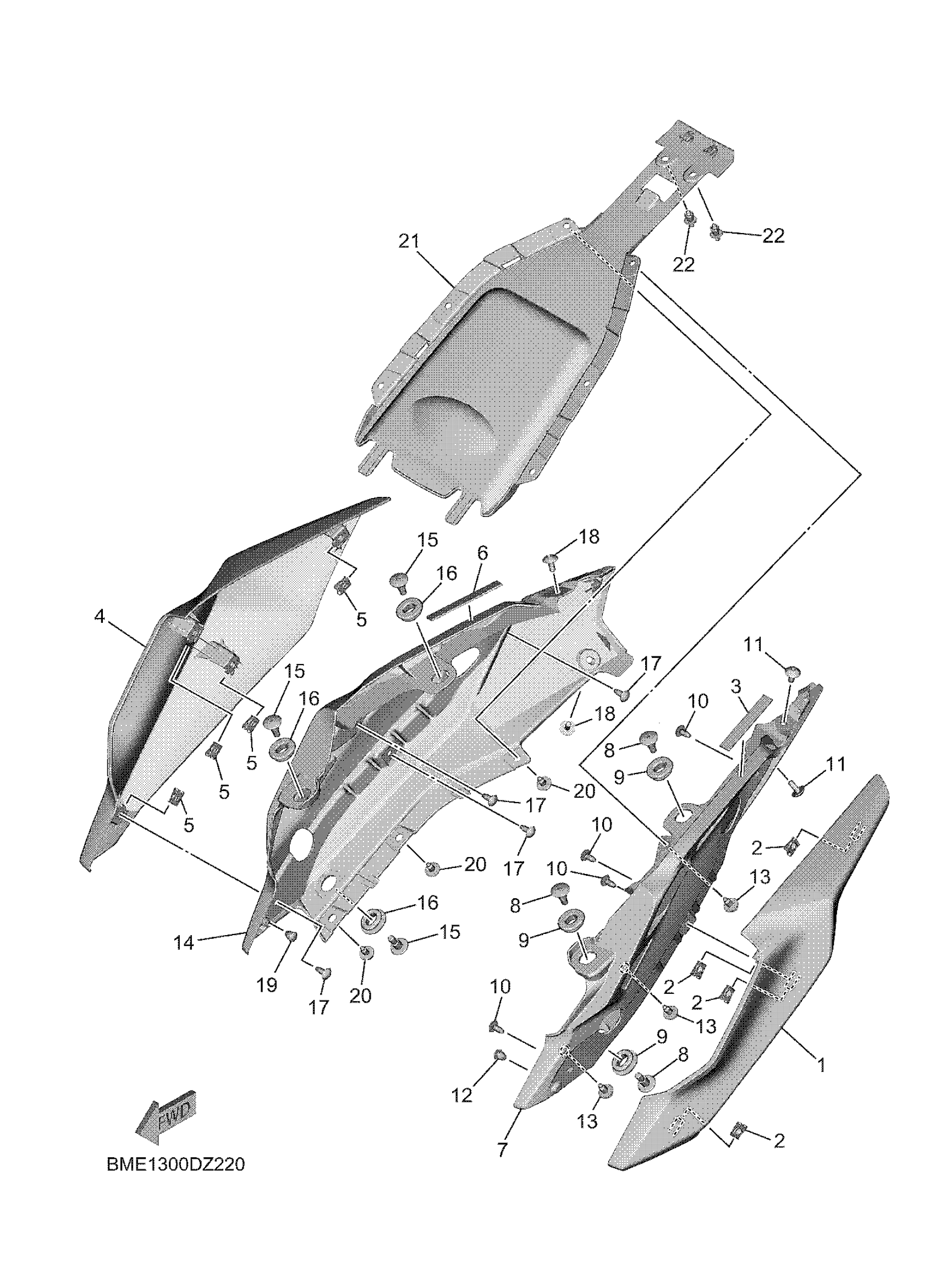

2025 Yamaha MT09 (MT09SL) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

BME-21711-00-P2

1
Out of stock

2

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

3

DAMPER, PLATE

90520-02011-00

—
Out of stock

4

COVER, SIDE 2

BME-21721-00-P2

1
Out of stock

5

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

6

DAMPER, PLATE

90520-02011-00

—
Out of stock

7

COVER, SIDE 3

BME-21731-00-00

—
Out of stock

8

BOLT

90109-06336-00

1
Out of stock

9

GROMMET(4BH)

90480-01559-00

1
Out of stock

10

SCREW, TRUSS TAP.

97707-50012-00

1
Out of stock

11

BOLT

90111-05002-00

1
Out of stock

12

PLUG(1NL)

90338-07180-00

1
Out of stock

13

RIVET

90269-06081-00

1
Out of stock

14

COVER, SIDE 4

BME-21741-00-00

—
Out of stock

15

BOLT

90109-06336-00

1
Out of stock

16

GROMMET(4BH)

90480-01559-00

1
Out of stock

17

SCREW, TRUSS TAP.

97707-50012-00

1
Out of stock

18

BOLT

90111-05002-00

1
Out of stock

19

PLUG(1NL)

90338-07180-00

1
Out of stock

20

RIVET

90269-06081-00

1
Out of stock

21

COVER, REAR FENDER

BME-21651-00-00

—
Out of stock

22

RIVET

90269-06008-00

—
Out of stock
