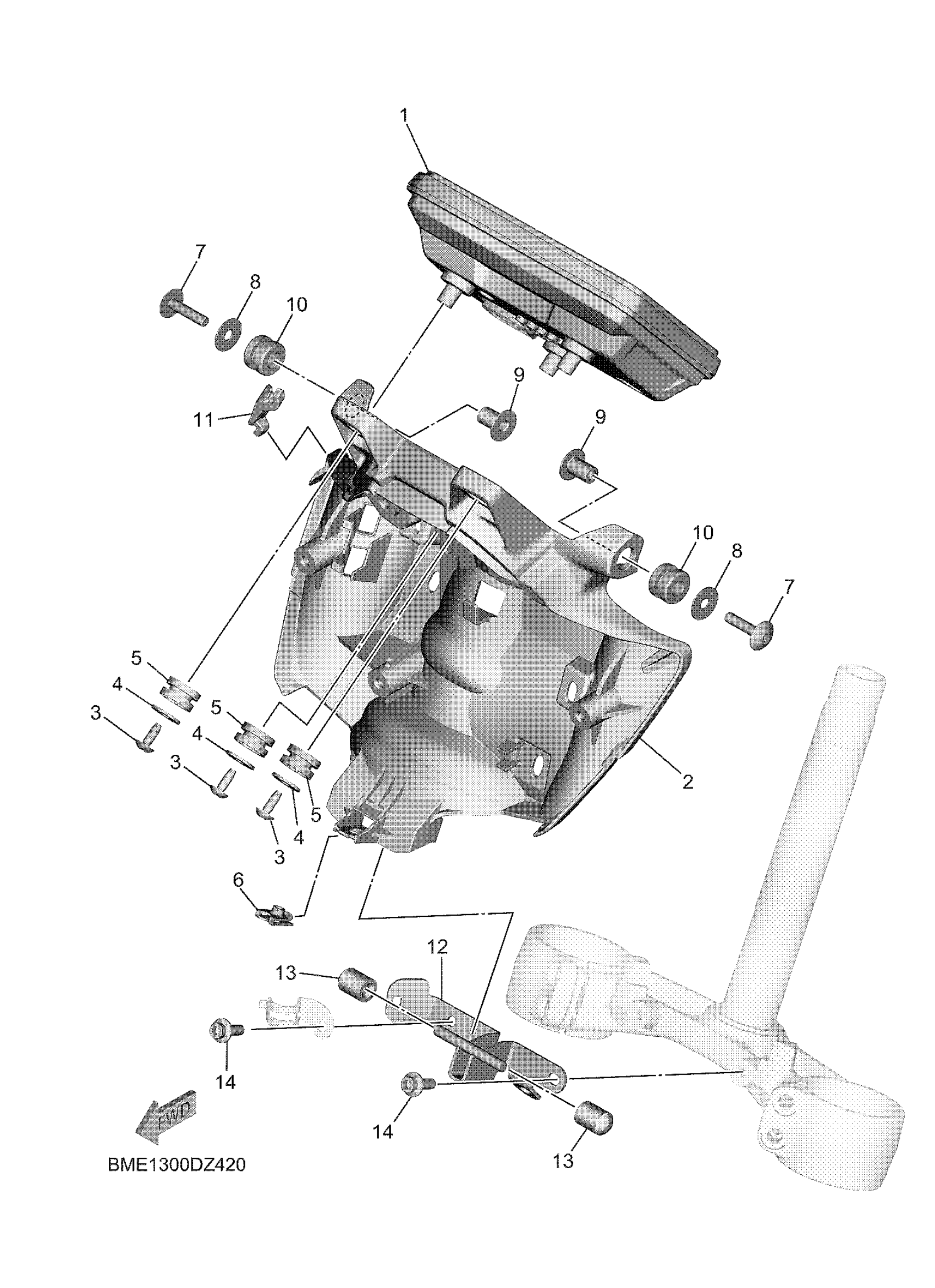

Yamaha MT09SL (MT09) BMEK 2025 METER Diagram

#

Description
Price

1

CONNECTED METER ASSY.

BME-83220-21-00

$1,124.99

2

BRACKET, METER

BME-83519-00-00

$77.94

3

SCREW, ROUND TAPPING

90160-05017-00

$1.24

4

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

5

DAMPER

4XV-83513-00-00

$5.98

6

NUT, SPRING(4ES)

90183-06069-00

$5.69

7

BOLTHEX. SOCKET BUTTON

90111-06189-00

$2.26

8

WASHER, PLATE

90201-06095-00

$5.87

9

COLLAR

90387-06136-00

$5.30

10

GROMMET 839774310000

90480-14023-00

$4.34

11

CAP

BME-83365-00-00

$6.42

12

STAY, SETTING

BME-8431R-00-00

Unavailable

13

DAMPER

1WS-84527-00-00

$1.48

14

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable
