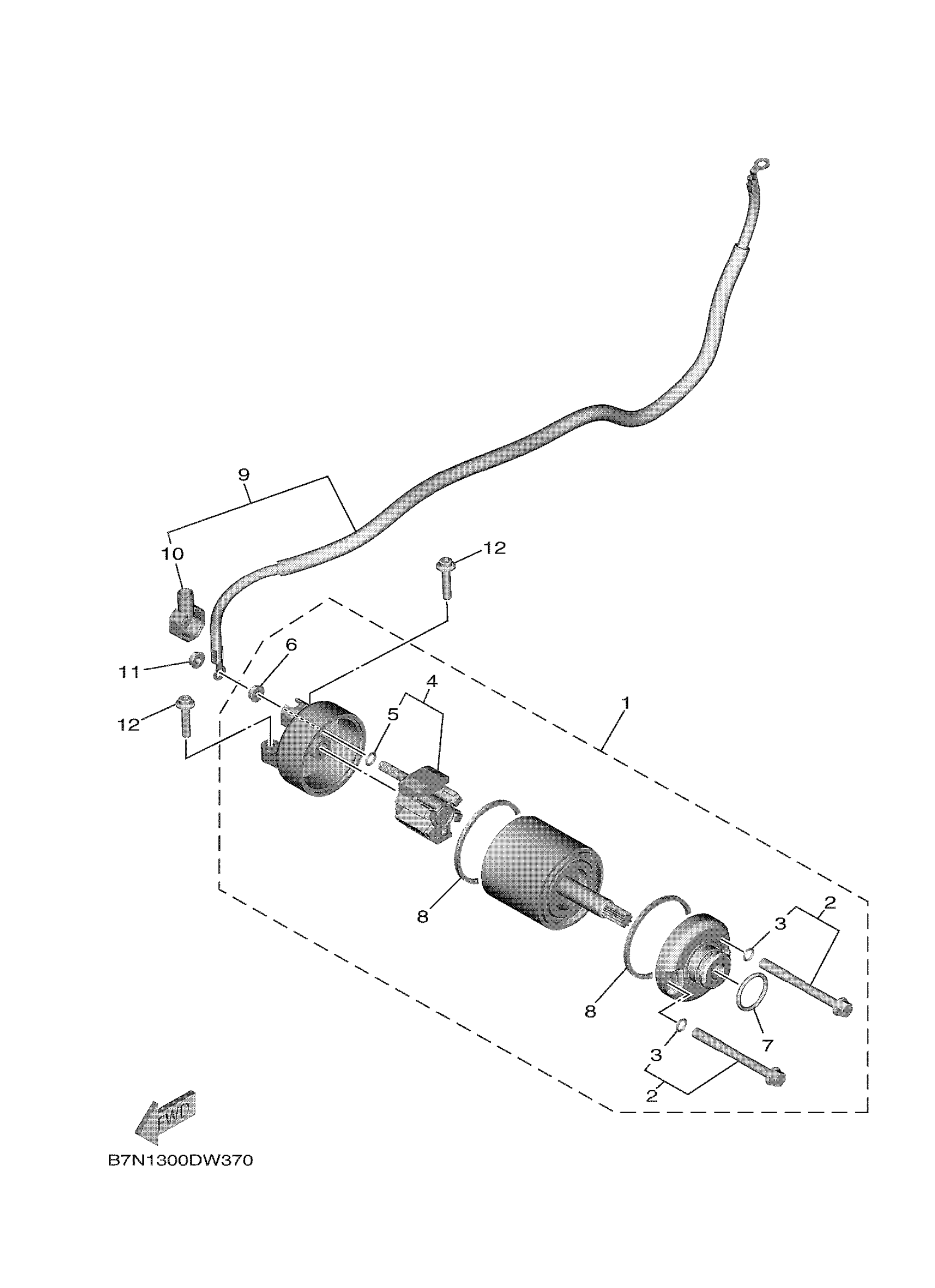

Yamaha MT09PL (MT09) B7NP 2023 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

BFD-81890-00-00

$259.59

2

BOLT

28P-81826-00-00

Unavailable

3

.. O-RING

3TB-81847-00-00

$2.27

4

BRUSH HOLDER ASSY

4B5-81840-00-00

$94.12

5

.. O-RING

3TB-81847-00-00

$2.27

6

NUT

4XV-8182A-00-00

$5.86

7

O-RING (437)

93210-24235-00

$5.34

8

GASKET

35C-81844-00-00

Unavailable

9

CORD, STARTER MOTO

B7N-81815-10-00

$35.02

10

CAP

4B5-81871-00-00

Unavailable

11

NUT

4XV-8182A-00-00

$5.86

12

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57
