2023 Yamaha MT09 (MT09PL) Stand & Footrest Diagram

← All diagrams

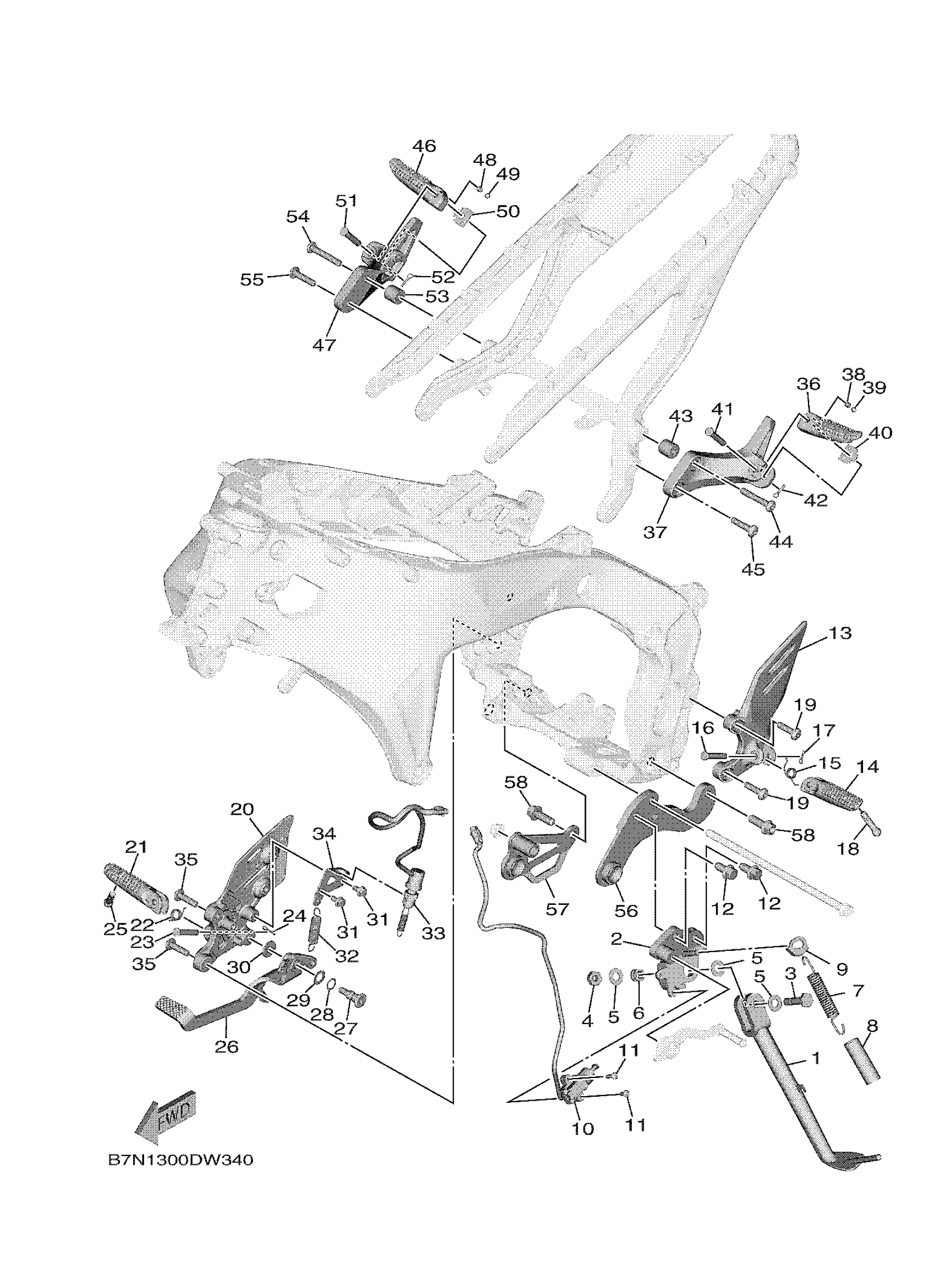

Find the part on the Stand & Footrest diagram for your 2023 Yamaha MT09 (MT09PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT09 (MT09PL) Stand & Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE

B7N-27311-00-00

1
Out of stock

2

BRACKET, SIDE STAN

B7N-27321-00-00

1
Out of stock

3

BOLT

90101-10034-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10012-00

1
Out of stock

5

WASHER, PLATE

90201-10075-00

1
Out of stock

6

COLLAR

90387-10020-00

1
Out of stock

7

SPRING TENSION

90506-26014-00

1
Out of stock

8

HOSE (L60)

90445-197J2-00

1
Out of stock

9

LINK, SIDE STAND

B7N-27315-00-00

1
Out of stock

10

SWITCH, SIDE STAND

B7N-82566-01-00

1
Out of stock

11

SCREW

90149-05038-00

1
Out of stock

12

BOLT, FLANGE

95817-10020-00

1
Out of stock

13

BRACKET 2

B7N-27442-00-00

1
Out of stock

14

FOOTREST 3

B7N-27451-00-00

—
Out of stock

15

SPRING, TORSION

90508-18134-00

1
Out of stock

16

PIN, CLEVIS

91702-08040-00

—
Out of stock

17

PIN, COTTER

91490-25020-00

—
Out of stock

18

BOLT

90109-08202-00

—
Out of stock

19

BOLT (3XF1)

90110-08220-00

—
Out of stock

20

BRACKET 3

B7N-27443-00-00

—
Out of stock

21

FOOTREST 4

B7N-27461-00-00

—
Out of stock

22

SPRING, TORSION

90508-18135-00

—
Out of stock

23

PIN, CLEVIS

91702-08040-00

—
Out of stock

24

PIN, COTTER

91490-25020-00

—
Out of stock

25

BOLT

90109-08202-00

—
Out of stock

26

PEDAL, BRAKE

B7N-27211-00-00

—
Out of stock

27

BOLT

4BP-27434-11-00

—
Out of stock

28

WASHER, WAVE (17W)

90206-12074-00

—
Out of stock

29

WASHER, PLATE

90201-12051-00

—
Out of stock

30

WASHER, PLATE

90201-08053-00

—
Out of stock

31

BOLT, FLANGE DEEP

95D02-06012-00

—
Out of stock

32

SPRING, TENSION

90506-18022-00

—
Out of stock

33

STOP SWITCH ASSY

B7N-82530-01-00

—
Out of stock

34

STAY STOP SWITCH

B7N-2144G-00-00

—
Out of stock

35

BOLT (3XF1)

90110-08220-00

—
Out of stock

36

FOOTREST, REAR 1

B7N-27431-00-00

—
Out of stock

37

BRACKET 4

B7N-2741L-00-00

—
Out of stock

38

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

39

BALL

93501-04011-00

—
Out of stock

40

WASHER, SPECIAL

5VX-27437-00-00

—
Out of stock

41

PIN, CLEVIS

91702-08040-00

—
Out of stock

42

PIN, COTTER

91490-25020-00

—
Out of stock

43

COLLAR

90387-08124-00

—
Out of stock

44

BOLT

90111-08005-00

—
Out of stock

45

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

—
Out of stock

46

FOOTREST, REAR 2

B7N-27441-00-00

—
Out of stock

47

BRACKET 5

B7N-2742L-00-00

—
Out of stock

48

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

49

BALL

93501-04011-00

—
Out of stock

50

WASHER, SPECIAL

5VX-27437-00-00

—
Out of stock

51

PIN, CLEVIS

91702-08040-00

—
Out of stock

52

PIN, COTTER

91490-25020-00

—
Out of stock

53

COLLAR

90387-08124-00

—
Out of stock

54

BOLT

90111-08005-00

—
Out of stock

55

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

—
Out of stock

56

STAY, MUFFLER 1

B7N-21445-10-00

—
Out of stock

57

STAY, MUFFLER 2

B7N-21446-10-00

—
Out of stock

58

BOLT, FLANGE

90105-10189-00

—
Out of stock
