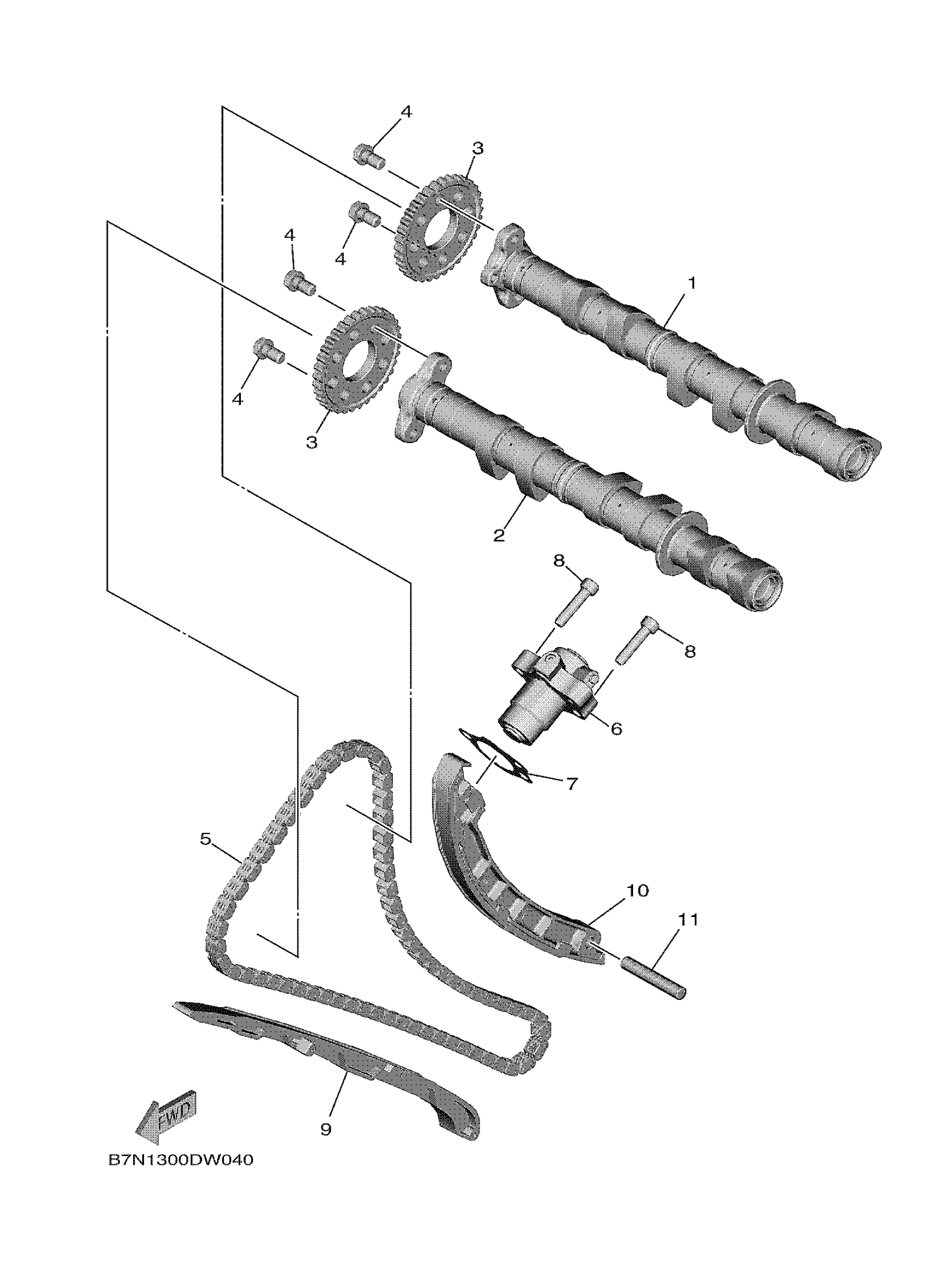

Yamaha MT09PL (MT09) B7NP 2023 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B7N-12170-00-00

$281.88

2

CAMSHAFT ASSY 2

B7N-12180-00-00

$282.54

3

SPROCKET, CAM CHAI

B7N-12176-00-00

$48.25

4

BOLT, FLANGE

90105-07006-00

$5.84

5

CHAIN

94591-78128-00

$54.31

6

TENSIONER ASSY, CAM CHAIN

B7N-12210-01-00

$196.72

7

GASKET, TENSIONER CASE

14B-12213-00-00

$6.37

8

BOLT,SOCKET

91317-06025-00

$1.96

9

DAMPER, CHAIN 1

1RC-12251-00-00

$24.23

10

CHAIN DAMPER ASSY

B7N-12250-00-00

$38.75

11

PIN, DOWEL

93607-44002-00

$4.06
