2022 Yamaha MT09 (MT09NL) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 2022 Yamaha MT09 (MT09NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

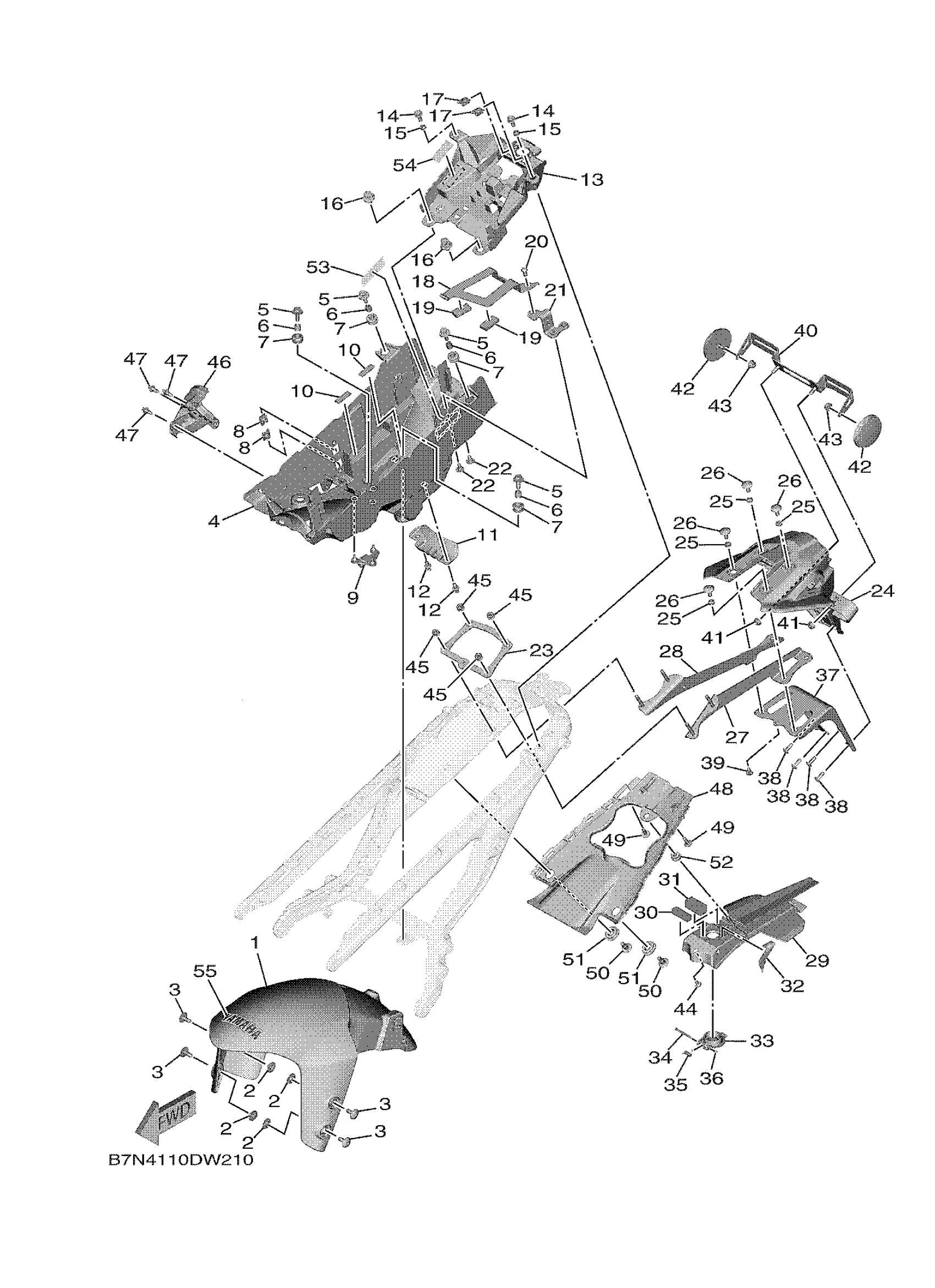

2022 Yamaha MT09 (MT09NL) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

B7N-21511-00-P1

1
Out of stock

2

COLLAR (3L1)

90387-07717-00

1
Out of stock

3

BOLTHEX. SOCKET BUTTON

90111-06191-00

1
Out of stock

4

BOX, BATTERY 1

B7N-8212B-01-00

—
Out of stock

5

BOLT WITH WASHER

90119-06313-00

—
Out of stock

6

COLLAR

90387-06113-00

1
Out of stock

7

GROMMET

90480-14035-00

1
Out of stock

8

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

9

COVER

B7N-2135F-00-00

1
Out of stock

10

DAMPER

B7N-21649-00-00

1
Out of stock

11

LID

B7N-2160F-00-00

—
Out of stock

12

RIVET

90269-06018-00

1
Out of stock

13

BOX

B7N-2160E-01-00

1
Out of stock

14

BOLT, FLANGE DEEP RECESS

95D32-06016-00

1
Out of stock

15

COLLAR(2NL)

90387-060U2-00

1
Out of stock

16

RIVET(4JH)

90269-07076-00

—
Out of stock

17

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

18

BAND, BATTERY

B7N-82137-00-00

—
Out of stock

19

DAMPER PLATE

90520-06009-00

—
Out of stock

20

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

21

BRACKET, REAR STAY

B7N-21688-00-00

—
Out of stock

22

BOLT,HEX. SOCKET BUTTON

90111-05049-00

—
Out of stock

23

BRACKET, REAR FEND

B7N-21261-00-00

—
Out of stock

24

GUARD, MUD

B7N-21629-00-00

—
Out of stock

25

COLLAR

90387-06106-00

—
Out of stock

26

BOLT,HEX. SOCKET BUTTON

90111-06190-00

—
Out of stock

27

STAY 1

B7N-2164F-00-00

—
Out of stock

28

STAY 2

B7N-2164G-00-00

—
Out of stock

29

COVER, REAR FENDER 2

B7N-2163E-01-00

—
Out of stock

30

DAMPER

2D1-21649-00-00

—
Out of stock

31

DAMPER

3P6-21649-00-00

—
Out of stock

32

BAND

B7N-21646-00-00

—
Out of stock

33

CAP, ROTOR

B7N-2465B-01-00

—
Out of stock

34

PIN

90249-03002-00

—
Out of stock

35

SPRING, TORSION

90508-09007-00

—
Out of stock

36

CIRCLIP (604)

93430-02001-00

—
Out of stock

37

STAY, PLATE

B7N-21682-00-00

—
Out of stock

38

SCREW, ROUND TAPPING

90160-05012-00

—
Out of stock

39

RIVET(81E)

90269-05055-00

—
Out of stock

40

BRACKET, LICENSE

1RC-84751-00-00

—
Out of stock

41

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

42

REFLECTOR, REAR 1

449-85131-02-00

—
Out of stock

43

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

44

RIVET(81E)

90269-05055-00

—
Out of stock

45

NUT, U FLANGE

95604-06200-00

—
Out of stock

46

COVER, REAR FENDER

B7N-2163A-00-00

—
Out of stock

47

RIVET

90269-06001-00

—
Out of stock

48

COVER, REAR FENDER

B7N-21651-01-00

—
Out of stock

49

BOLT,HEX. SOCKET BUTTON

90111-05021-00

—
Out of stock

50

BOLT

90109-06336-00

—
Out of stock

51

GROMMET(4BH)

90480-01559-00

—
Out of stock

52

GROMMET

90480-10003-00

—
Out of stock

53

LABEL, CAUTION

3JJ-28446-A2-00

—
Out of stock

54

LABEL, CAUTION

3TB-24877-A1-00

—
Out of stock

55

EMBLEM, YAMAHA

99247-00080-00

—
Out of stock
