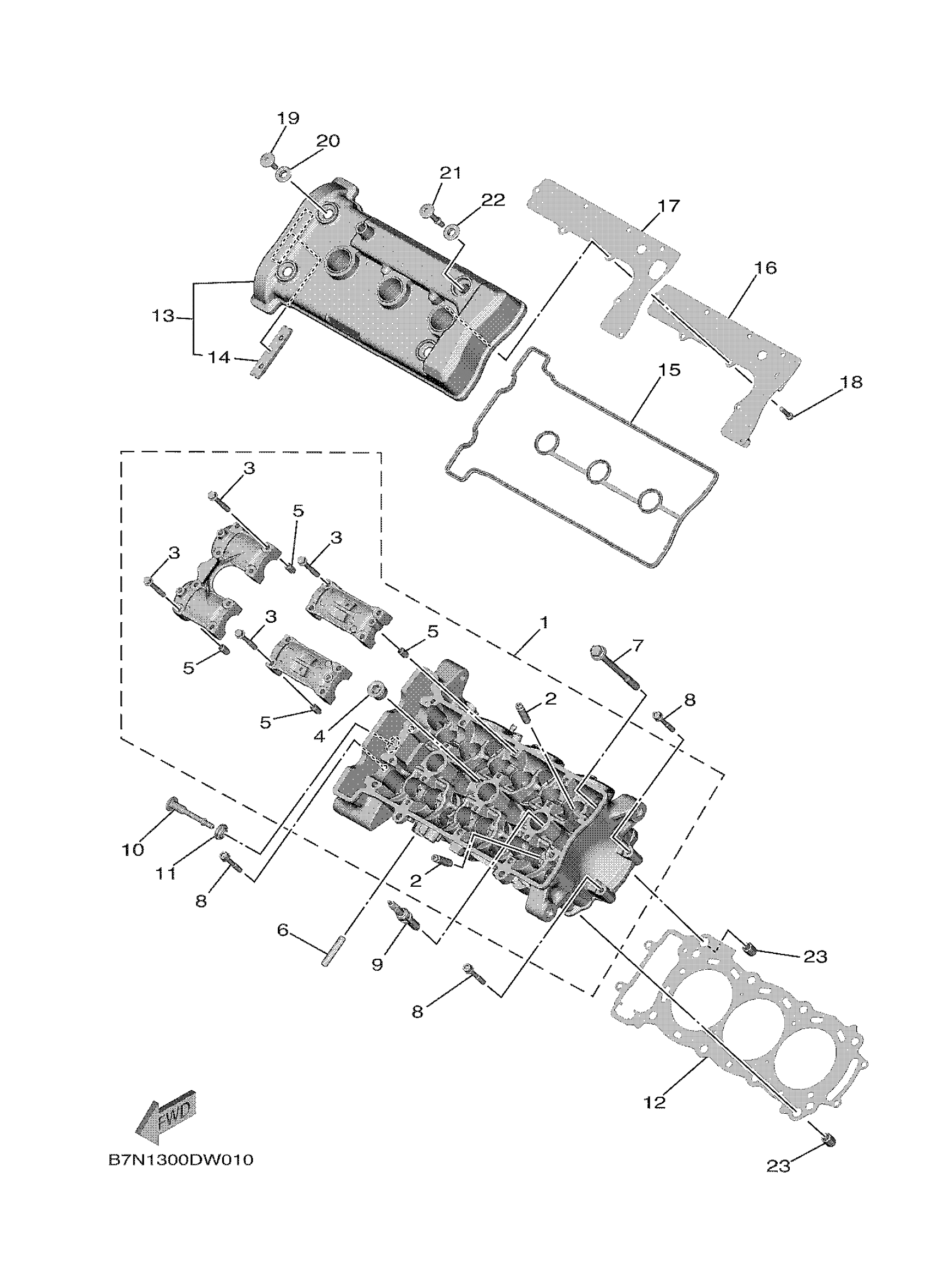

Yamaha MT09NL (MT09) B7NF 2022 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B7N-11101-09-00

Unavailable

2

GUIDE, VALVE 1

2C0-11133-11-00

$53.86

3

BOLT, WASHER BASED

90105-06027-00

$5.80

4

PLUG, STRAIGHT SCREW

90340-18002-00

$8.95

5

PIN, DOWEL(3XW)

91808-16023-00

$5.26

6

BOLT, STUD

95612-08625-00

$4.37

7

BOLT WITH WASHER

90119-09019-00

$9.34

8

BOLT

90109-061F7-00

$2.79

9

PLUG, SPARK (NGK LMAR9A-9)

94701-00446-00

$15.55

10

BOLT

90109-06293-00

$12.20

11

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

12

GASKET CYLINDER HEAD 1

B7N-11181-00-00

$37.78

13

COVER CYLINDER HEAD 1

B7N-11191-00-00

$136.03

14

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

15

GASKET, HEAD COVER

B7N-11193-00-00

$15.55

16

PLATE, BREATHER

B7N-11165-00-00

Unavailable

17

GASKET, BREATHER C

B7N-11169-00-00

Unavailable

18

SCREW

90149-05038-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

21

BOLT

90109-06271-00

Unavailable

22

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

23

PIN, DOWEL

99530-12016-00

Unavailable
