2021 Yamaha MT09 (MT09ML) Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2021 Yamaha MT09 (MT09ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

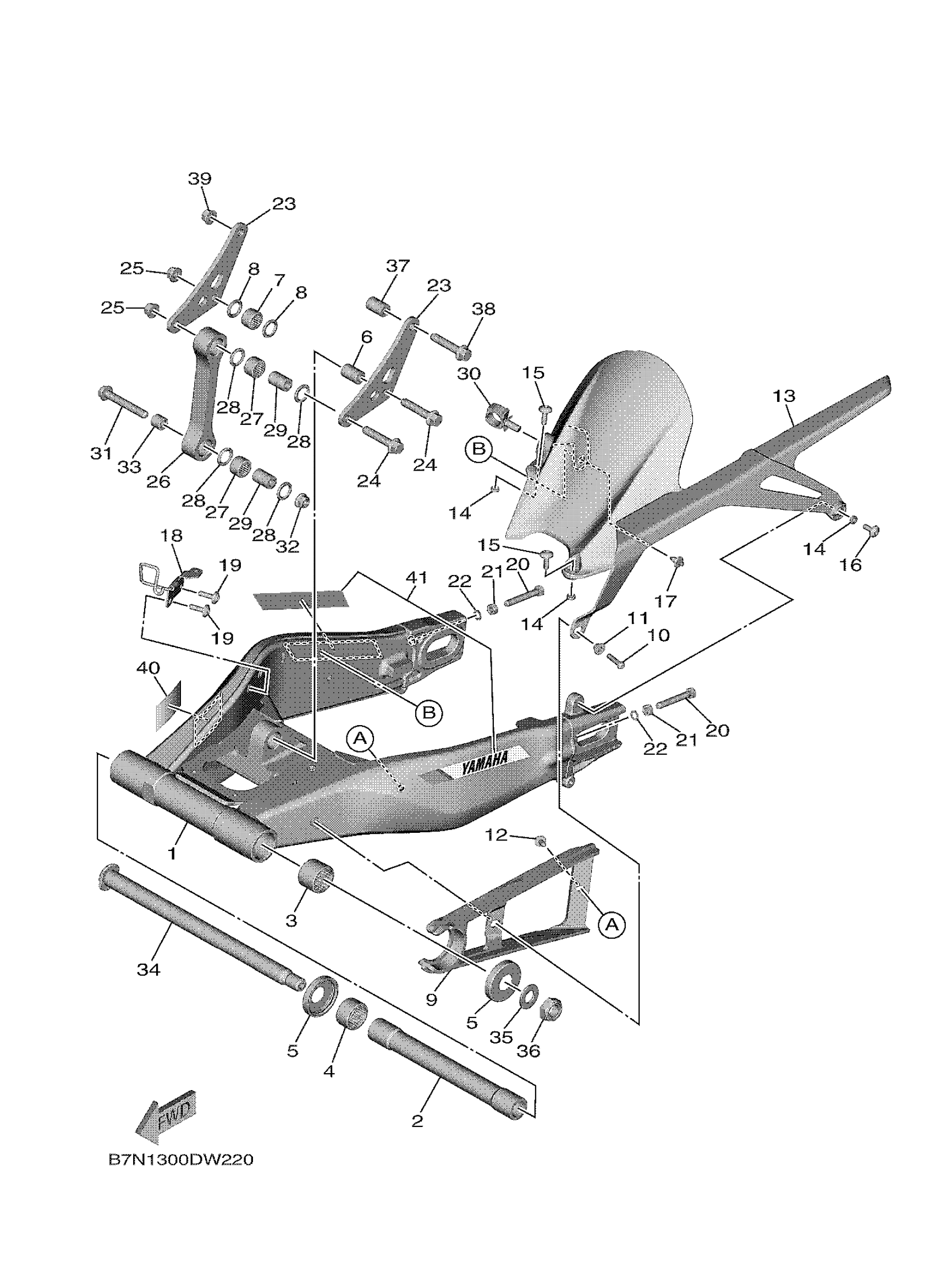

2021 Yamaha MT09 (MT09ML) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

B7N-22110-10-00

1
Out of stock

2

COLLAR

90387-22037-00

—
Out of stock

3

BEARING

93317-330A0-00

1
Out of stock

4

BEARING

93317-330A1-00

1
Out of stock

5

COVER, THRUST 1

5VY-22128-00-00

1
Out of stock

6

COLLAR

90387-1012A-00

1
Out of stock

7

BEARING

93315-31758-00

1
Out of stock

8

OIL SEAL

93109-17071-00

1
Out of stock

9

SEAL, GUARD

B7N-22151-00-00

1
Out of stock

10

BOLT, BUTTON HEAD

92012-06025-00

1
Out of stock

11

C0LLAR (3JB1)

90387-062X0-00

1
Out of stock

12

RIVET

90269-07007-00

1
Out of stock

13

REAR FENDER COMP.

B7N-21650-01-00

—
Out of stock

14

COLLAR

90387-06106-00

1
Out of stock

15

SCREW

90149-06104-00

1
Out of stock

16

BOLT,HEX. SOCKET BUTTON

90111-06151-00

—
Out of stock

17

RIVET

90269-07007-00

1
Out of stock

18

STAY

B7N-22538-00-00

—
Out of stock

19

SCREW

90149-06104-00

1
Out of stock

20

BOLT

90101-08013-00

—
Out of stock

21

NUT

95302-08600-00

—
Out of stock

22

WASHER, PLATE

90201-08052-00

—
Out of stock

23

ARM, RELAY

B7N-2217A-00-00

—
Out of stock

24

BOLT, FLANGE

90105-10030-00

—
Out of stock

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

26

ARM 1

B7N-2217M-00-00

—
Out of stock

27

BEARING

93315-31758-00

1
Out of stock

28

OIL SEAL

93109-17071-00

1
Out of stock

29

COLLAR

90387-1012A-00

1
Out of stock

30

CLAMP

90464-20009-00

—
Out of stock

31

BOLT, FLANGE

90105-10211-00

—
Out of stock

32

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

33

COLLAR

90387-10043-00

—
Out of stock

34

SHAFT, PIVOT

B7N-22141-00-00

—
Out of stock

35

WASHER, PLATE

90201-18013-00

—
Out of stock

36

NUT, SELF-LOCKING

90185-18009-00

—
Out of stock

37

COLLAR

90387-10125-00

—
Out of stock

38

BOLT, FLANGE

90105-10030-00

—
Out of stock

39

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

40

LABEL, TIRE

14B-21668-01-00

—
Out of stock
