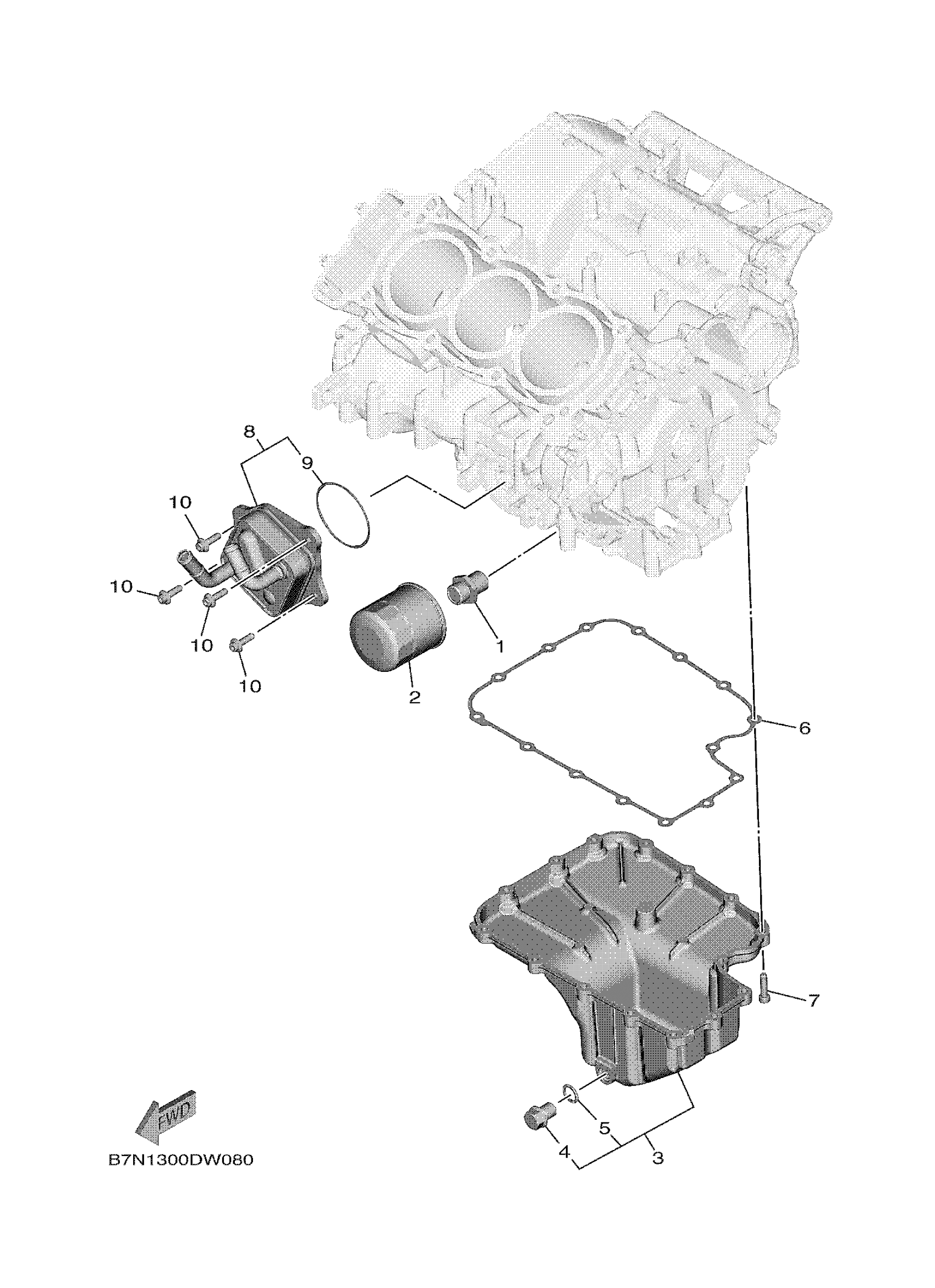

Yamaha MT09ML (MT09) B7N4 2021 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20012-00

$15.63

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

STRAINER COVER ASS

B7N-13400-01-00

$155.53

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

5

GASKET

214-11198-01-00

$2.53

6

GASKET, STRAINER COVER

B7N-13414-01-00

$14.93

7

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$2.21

8

OIL COOLER ASSY

BS2-13470-10-00

$157.72

9

O-RING

2HC-13473-00-00

$6.20

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15
