2021 Yamaha MT09 (MT09ML) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2021 Yamaha MT09 (MT09ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

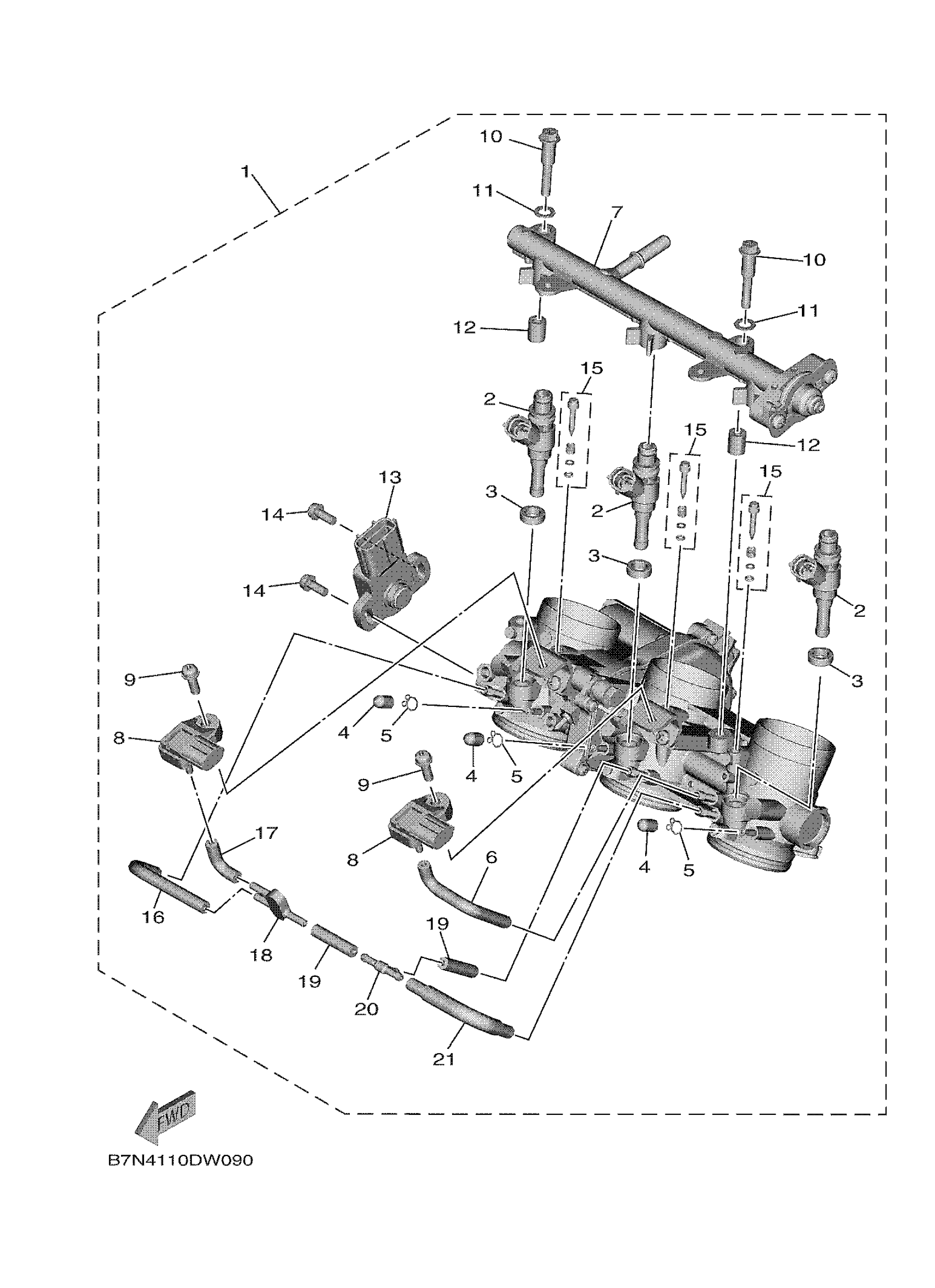

2021 Yamaha MT09 (MT09ML) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

B7N-13750-12-00

1

$1,268.99

In stock

2

INJECTOR

B7N-13761-00-00

—

$86.20

In stock

3

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

4

CAP

895-14169-00-00

1

$4.02

In stock

5

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

6

. HOSE, VACUUM SENSING 4

68V-13533-00-00

1

$11.52

In stock

7

PIPE INLET ASSEMBL

B7N-13930-00-00

1

$210.11

In stock

8

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

9

SCREW

2C0-14216-00-00

1

$3.03

In stock

10

BOLT 1

8HG-13573-00-00

—

$9.78

In stock

11

WASHER

8GL-13571-00-00

1

$3.37

In stock

12

COLLAR

8HG-14534-00-00

1

$27.02

In stock

13

THROTTLE SENSOR AS

B3L-85885-01-00

1

$94.24

In stock

14

SCREW

8CC-14216-10-00

1

$7.12

In stock

15

PILOT SCREW SET

2C0-14105-00-00

1

$30.55

In stock

16

. PIPE 1

5FL-14348-00-00

1

$17.41

In stock

17

PIPE

8FP-14349-00-00

—

$9.80

In stock

18

NIPPLE

3XV-14251-00-00

—

$25.12

In stock

19

PIPE 1

5FL-14348-10-00

—

$4.00

In stock

20

. PIPE, JOINT 1

68V-24376-00-00

1

$15.04

In stock

21

HOSE, VACUUM SENSI

B7N-13542-00-00

—

$14.75

In stock
