2020 Yamaha MT09 (MT09LL) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2020 Yamaha MT09 (MT09LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

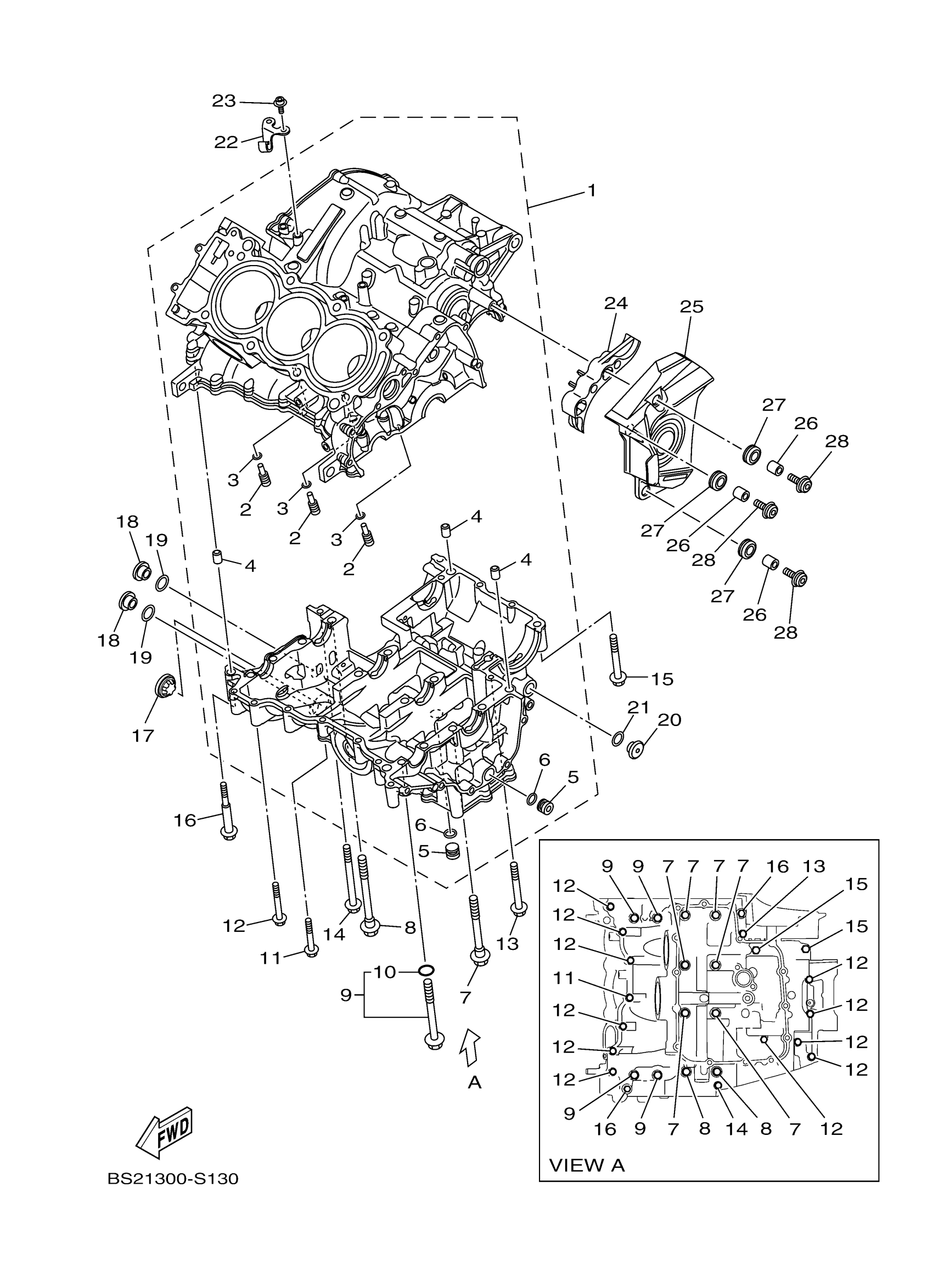

2020 Yamaha MT09 (MT09LL) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

BS2-15100-09-00

1

$2,995.99

In stock

2

NOZZLE 3

5EB-15155-00-00

1

$12.27

In stock

3

O-RING (210)

93210-04092-00

1

$2.88

In stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

PLUG

90338-16262-00

1

$11.18

In stock

6

O-RING(3LD)

93210-12790-00

1

$5.75

In stock

7

BOLT, WITH WASHER

90119-09013-00

1

$10.68

In stock

8

BOLT, WITH WASHER

90119-09010-00

1

$11.47

In stock

9

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

1

$9.52

In stock

10

O-RING (11M)

93210-07540-00

1

$5.77

In stock

11

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

12

BOLT, FLANGE

95812-06050-00

1

$1.51

In stock

13

BOLT, FLANGE

95812-06065-00

—

$5.14

In stock

14

BOLT, FLANGE

90105-06202-00

1

$1.58

In stock

15

BOLT, FLANGE

95817-08060-00

1

$3.28

In stock

16

BOLT

90109-06100-00

—

$7.60

In stock

17

GAUGE, LEVEL

2H7-15361-00-00

—

$84.99

In stock

18

PLUG

36Y-15189-01-00

—

$12.03

In stock

19

O-RING(1L9)

93210-16325-00

—

$5.86

In stock

20

PLUG, STRAIGHT SCREW

90340-14011-00

—

$19.71

In stock

21

O-RING (2H9)

93210-14369-00

—

$5.80

In stock

22

HOLDER, CLUTCH CABLE

1RC-15441-00-00

—

$7.80

In stock

23

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

—

$2.51

In stock

24

GUIDE, INLET

1RC-15377-00-00

—
Out of stock

25

COVER, CHAIN CASE

BS2-15418-00-00

—

$22.49

In stock

26

COLLAR

90387-06286-00

—

$1.58

In stock

27

GROMMET (462)

90480-13018-00

—

$6.25

In stock

28

BOLT,HEX. SOCKET BUTTON

90111-06130-00

—

$3.76

In stock
← Camshaft & Chain Crankcase Cover 1 →
