2018 Yamaha MT09 (MT09JR) Intake Diagram

← All diagrams

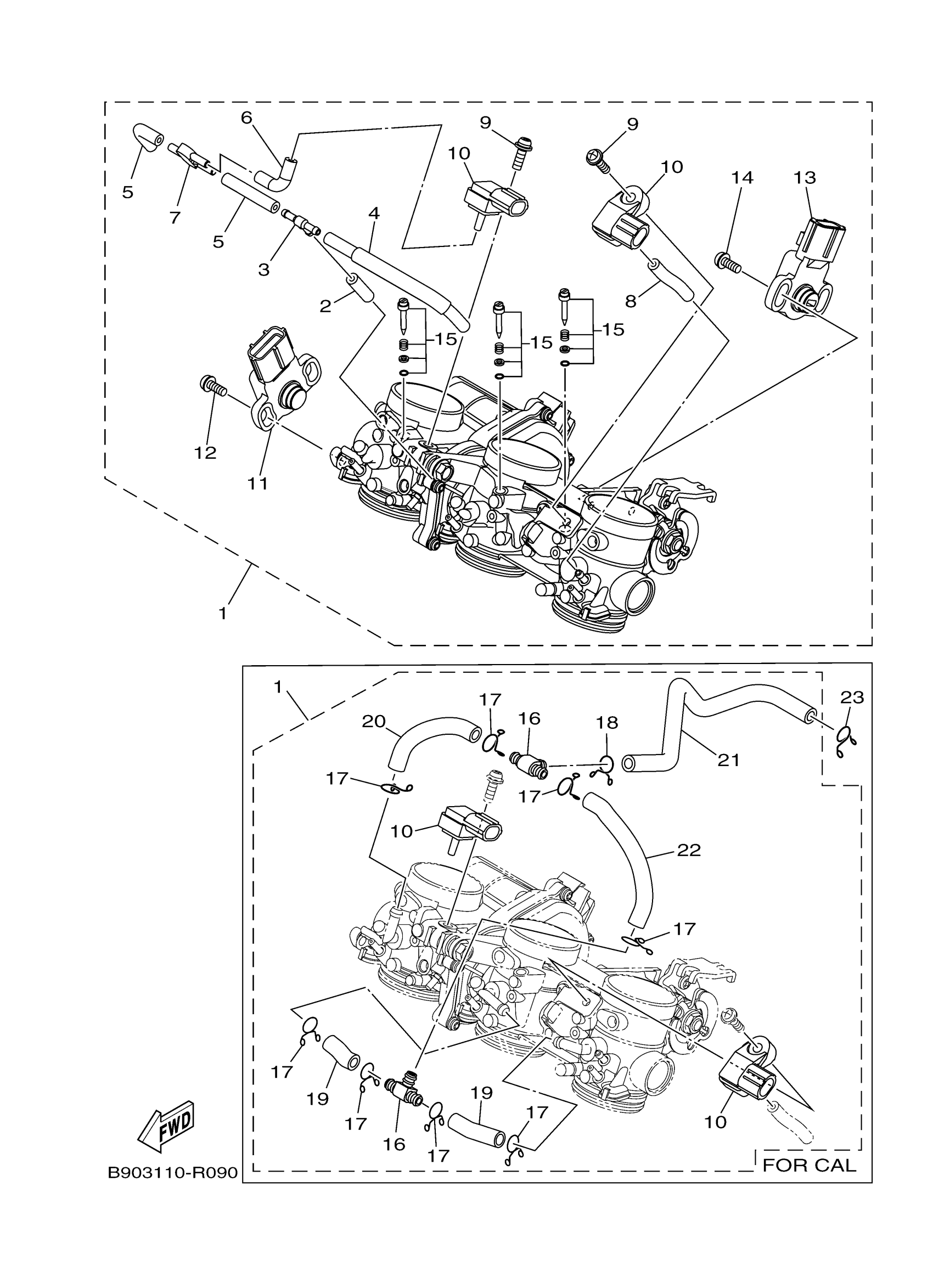

Find the part on the Intake diagram for your 2018 Yamaha MT09 (MT09JR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha MT09 (MT09JR) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

1RC-13750-01-00

—
Out of stock

2

HOSE, VACUUM SENSING 2

1RC-13544-00-00

—

$6.17

In stock

3

. PIPE, JOINT 1

68V-24376-00-00

1

$15.04

In stock

4

HOSE, VACUUM SENSING 1

1RC-13542-00-00

—

$18.57

In stock

5

PIPE

8FP-14349-20-00

1

$4.92

In stock

6

PIPE

8FP-14349-00-00

1

$9.80

In stock

7

NIPPLE

3XV-14251-00-00

1

$25.12

In stock

8

PIPE

8FP-14349-30-00

—

$4.15

In stock

9

SCREW

2C0-14216-00-00

1

$3.03

In stock

10

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

11

THROTTLE SENSOR AS

13S-85885-01-00

1
Out of stock

12

SCREW

8CC-14216-10-00

1

$7.12

In stock

13

ACCELERATOR SENSOR

1MC-85884-01-00

1

$113.85

In stock

14

SCREW

5FL-14216-00-00

1

$3.69

In stock

15

PILOT SCREW SET

2C0-14105-00-00

1

$30.55

In stock
← Fuel Tank Intake 2 →
