2025 Yamaha MT07 (MT07SL) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

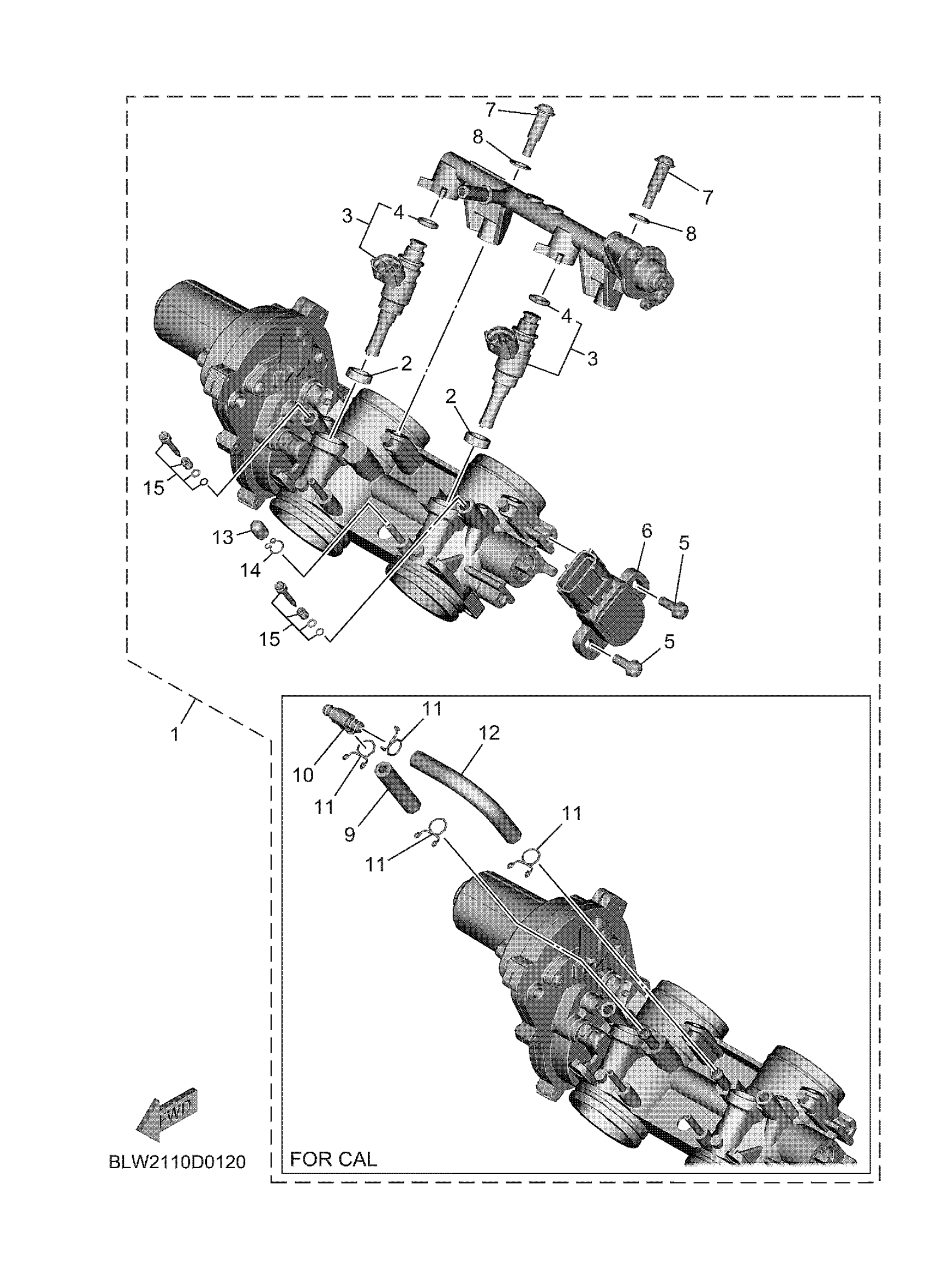

2025 Yamaha MT07 (MT07SL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

BLW-13750-10-00

1

$889.99

In stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

3

INJECTOR

1WS-13761-00-00

—

$138.59

In stock

4

O-RING

5PS-14147-00-00

1

$10.95

In stock

5

SCREW

8CC-14216-10-00

1

$7.12

In stock

6

THROTTLE SENSOR ASSY

B7M-85885-01-00

1

$111.48

In stock

7

BOLT 1

14B-13573-00-00

1

$4.82

In stock

8

GASKET

363-14198-00-00

1

$9.89

In stock

13

CAP

895-14169-00-00

1

$4.02

In stock

14

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

15

PILOT SCREW SET

2C0-14105-00-00

1

$30.55

In stock
