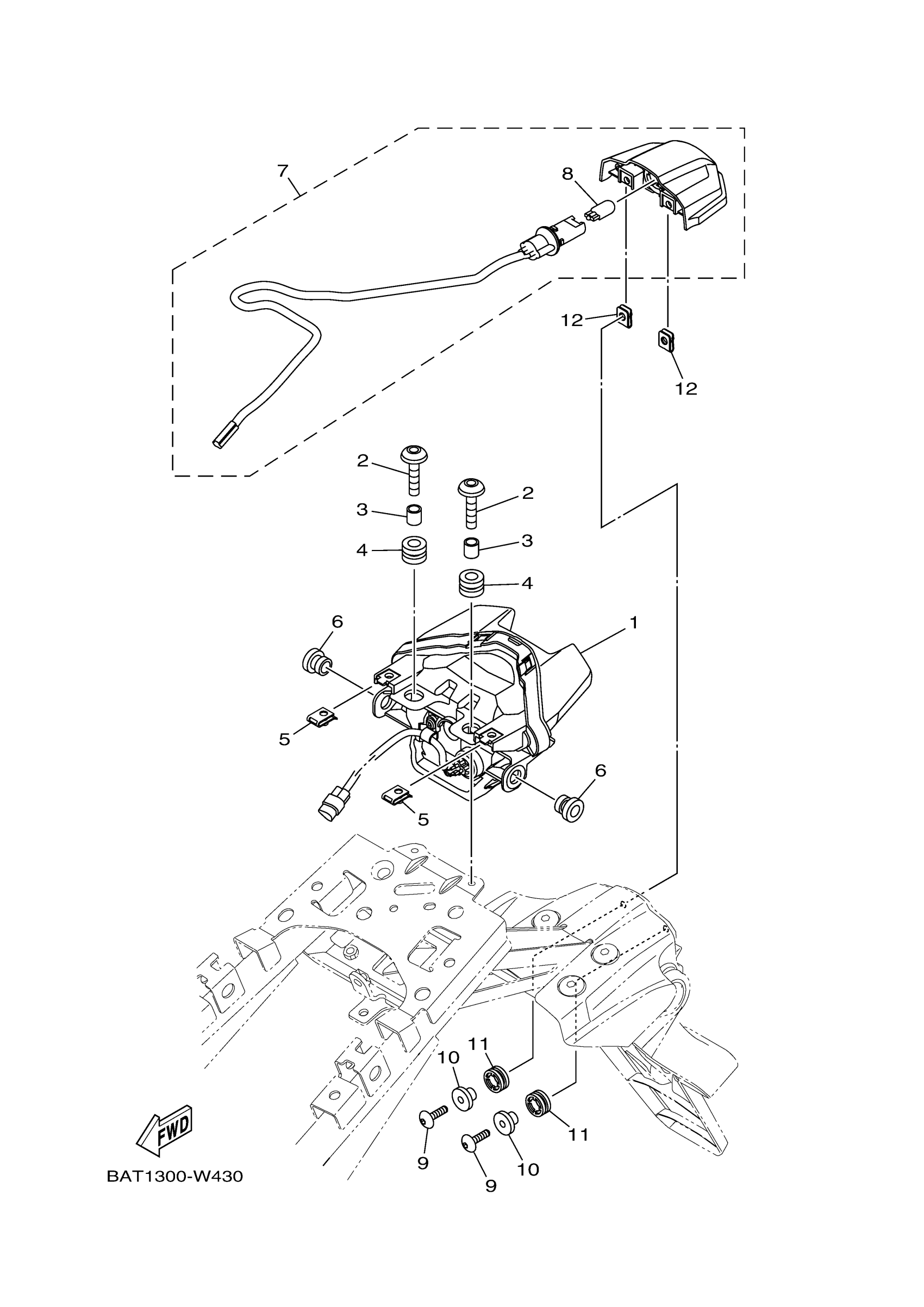

Yamaha MT07RL (MT07) BTKA 2024 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

B4C-84710-02-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$4.46

3

COLLAR

90387-067V1-00

$2.75

4

GROMMET

90480-13001-00

$0.70

5

NUT, SPRING(1YT)

90183-05042-00

$0.86

6

GROMMET

90480-10016-00

$2.83

7

LICENCE LIGHT UNIT ASSY

2PN-84745-02-00

Unavailable

8

BULB (12V-5W)

2DP-H4347-00-00

$6.33

9

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

10

COLLAR

90387-05044-00

$11.71

11

GROMMET

90480-14017-00

$4.14

12

NUT, SPRING

90183-050A6-00

$2.21
