2024 Yamaha MT07 (MT07RL) Rear Arm Diagram

← All diagrams

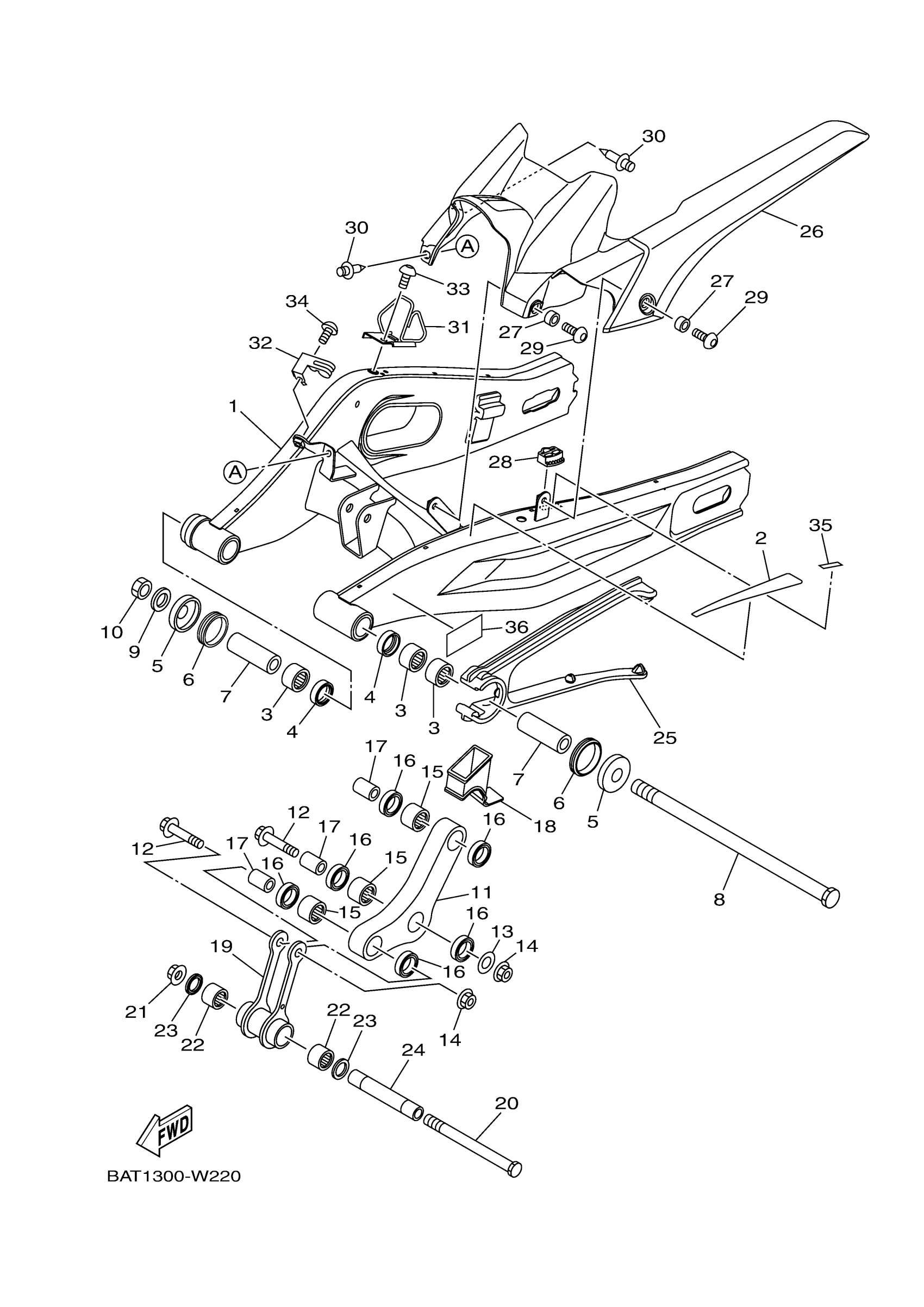

Find the part on the Rear Arm diagram for your 2024 Yamaha MT07 (MT07RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT07 (MT07RL) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

1WS-22110-11-00

1
Out of stock

2

SEAL 1

BU2-22358-00-00

1
Out of stock

3

BEARING, CYLINDRICAL(2VM)

93317-22262-00

1
Out of stock

4

OIL SEAL (23X)

93106-22019-00

1
Out of stock

5

COVER

30X-2219X-00-00

1
Out of stock

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

1
Out of stock

7

BUSH, SOLID(1LV)

90380-16158-00

1
Out of stock

8

SHAFT, PIVOT

1UY-22141-10-00

1
Out of stock

9

WASHER, PLATE(33Y)

90201-164H4-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-16002-00

1
Out of stock

11

ARM, RELAY

1WS-2217A-00-00

1
Out of stock

12

BOLT, WASHER BASED(4KD)

90105-10728-00

1
Out of stock

13

WASHER, PLATE

90201-10045-00

1
Out of stock

14

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

15

BEARING

93315-31758-00

1
Out of stock

16

OIL SEAL

93109-17071-00

—
Out of stock

17

COLLAR

90387-1012A-00

—
Out of stock

18

BOOT, RUBBER

1WS-22189-00-00

—
Out of stock

19

ROD, CONNECTING 1

1WS-2217F-00-00

—
Out of stock

20

BOLT

90101-12049-00

—
Out of stock

21

NUT, SELF-LOCKING

95602-12200-00

—
Out of stock

22

BEARING, CYLINDRICAL(3YL)

93317-31771-00

—
Out of stock

23

OIL SEAL

93109-17071-00

—
Out of stock

24

BUSH

1WS-22184-00-00

—
Out of stock

25

SEAL, GUARD

BEB-22151-00-00

—
Out of stock

26

REAR FENDER COMP.

B4C-21650-00-00

—
Out of stock

27

COLLAR

90387-06344-00

—
Out of stock

28

DAMPER, CHAIN CASE

B4C-22332-00-00

—
Out of stock

29

BOLT,HEX. SOCKET BUTTON

90111-06119-00

—
Out of stock

30

RIVET

90269-07007-00

—
Out of stock

31

HOLDER, BRAKE HOSE

BU2-25887-00-00

—
Out of stock

32

HOLDER, BRAKE HOSE

1WS-2588F-00-00

—
Out of stock

33

BOLT, BUTTON

92014-06016-00

—
Out of stock

34

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

35

SEAL 2

3P6-28228-00-00

—
Out of stock

36

LABEL, TIRE

1TP-21668-01-00

—
Out of stock
