2024 Yamaha MT07 (MT07RL) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 2024 Yamaha MT07 (MT07RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

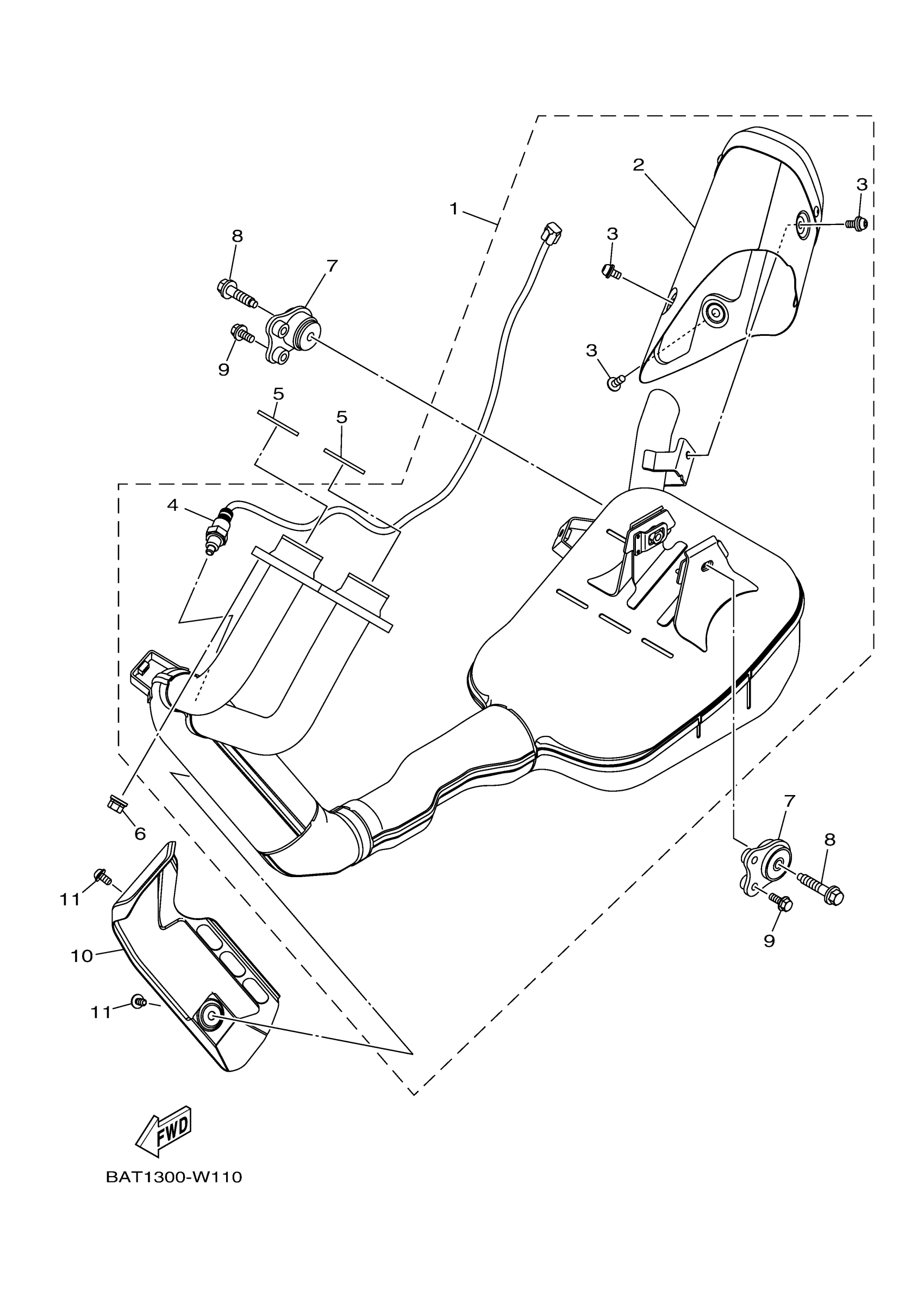

2024 Yamaha MT07 (MT07RL) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSY 1

BAT-14710-10-00

1
Out of stock

2

PROTECTOR ASSY

B4T-14708-00-00

1
Out of stock

3

BOLT

90111-06060-00

1
Out of stock

4

SENSOR, OXYGEN

B4T-8592A-00-00

—
Out of stock

5

GASKET, EXHAUST PIPE

3YF-14613-01-00

1
Out of stock

6

NUT (22U)

90179-08410-00

1
Out of stock

7

STAY, MUFFLER 1

20S-21445-01-00

1
Out of stock

8

BOLT, FLANGE

90105-08164-00

1
Out of stock

9

BOLT, FLANGE DEEP RECESS

95D34-06016-00

1
Out of stock

10

PROTECTOR, MUFFLER

B4T-1460B-20-00

1
Out of stock

11

BOLT

90111-06060-00

1
Out of stock
