2023 Yamaha MT07 (MT07PL) Handle Switch & Lever Diagram

← All diagrams

Find the part on the Handle Switch & Lever diagram for your 2023 Yamaha MT07 (MT07PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

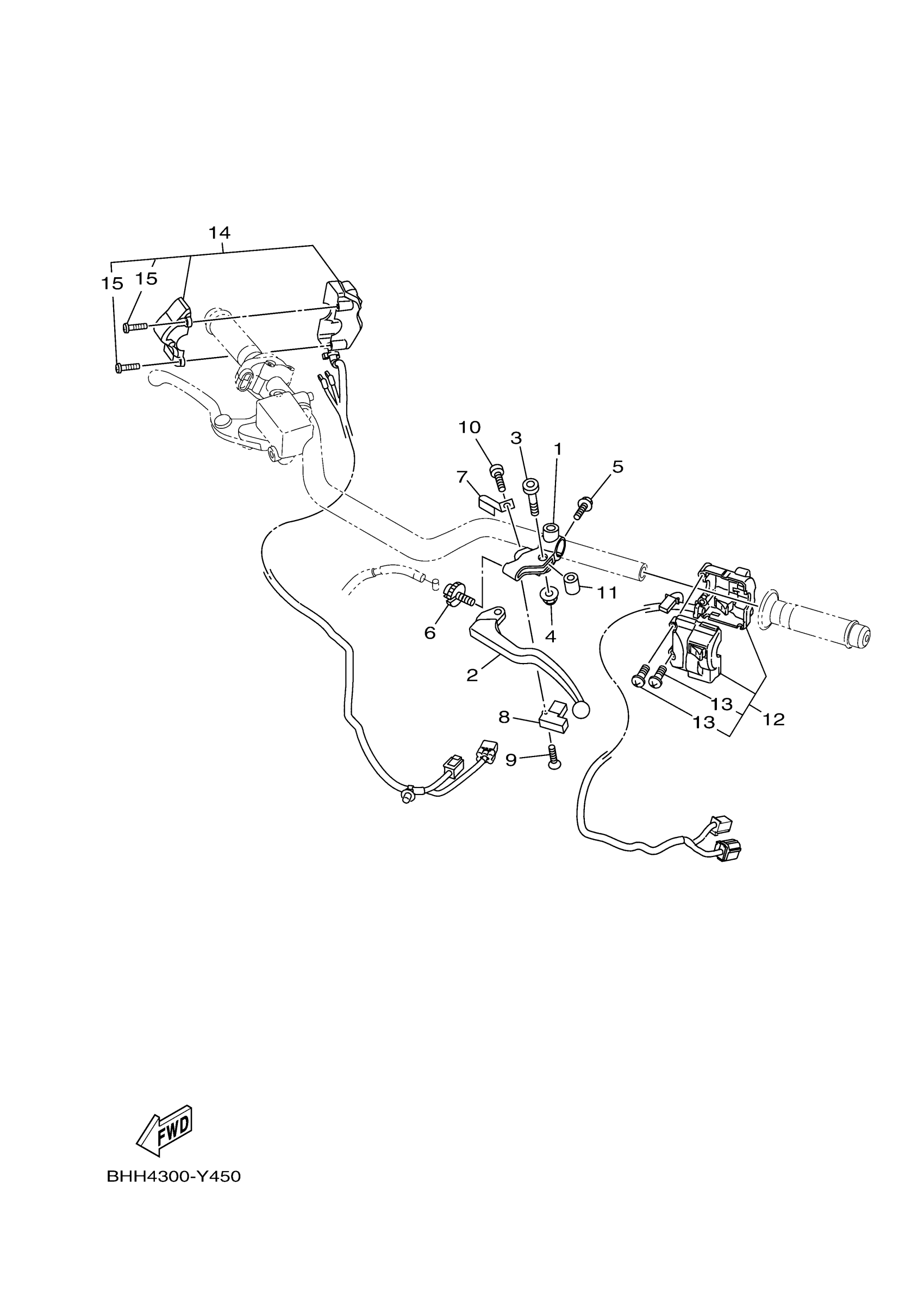

2023 Yamaha MT07 (MT07PL) Handle Switch & Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

1B3-82911-00-00

1

$34.74

In stock

2

LEVER 1

B90-83912-00-00

1

$25.31

In stock

3

BOLT, LEVER

2C0-83945-00-00

—

$9.02

In stock

4

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

5

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

1

$49.02

In stock

7

PLATE, SPRING

4XV-83929-00-00

1

$9.34

In stock

8

SWITCH

3YX-82917-01-00

1

$38.62

In stock

9

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

10

SCREW, PAN HEAD(6G8)

98507-04010-00

1

$3.26

In stock

11

COLLAR, LEVER 1

5JJ-83913-00-00

1

$7.52

In stock

12

SWITCH, HANDLE 5

BAT-83969-10-00

1

$224.88

In stock

13

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

14

SWITCH, HANDLE 3

BAT-83963-02-00

1
Out of stock

15

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock
