2020 Yamaha MT07 (MT07LL) Water Pump Diagram

← All diagrams

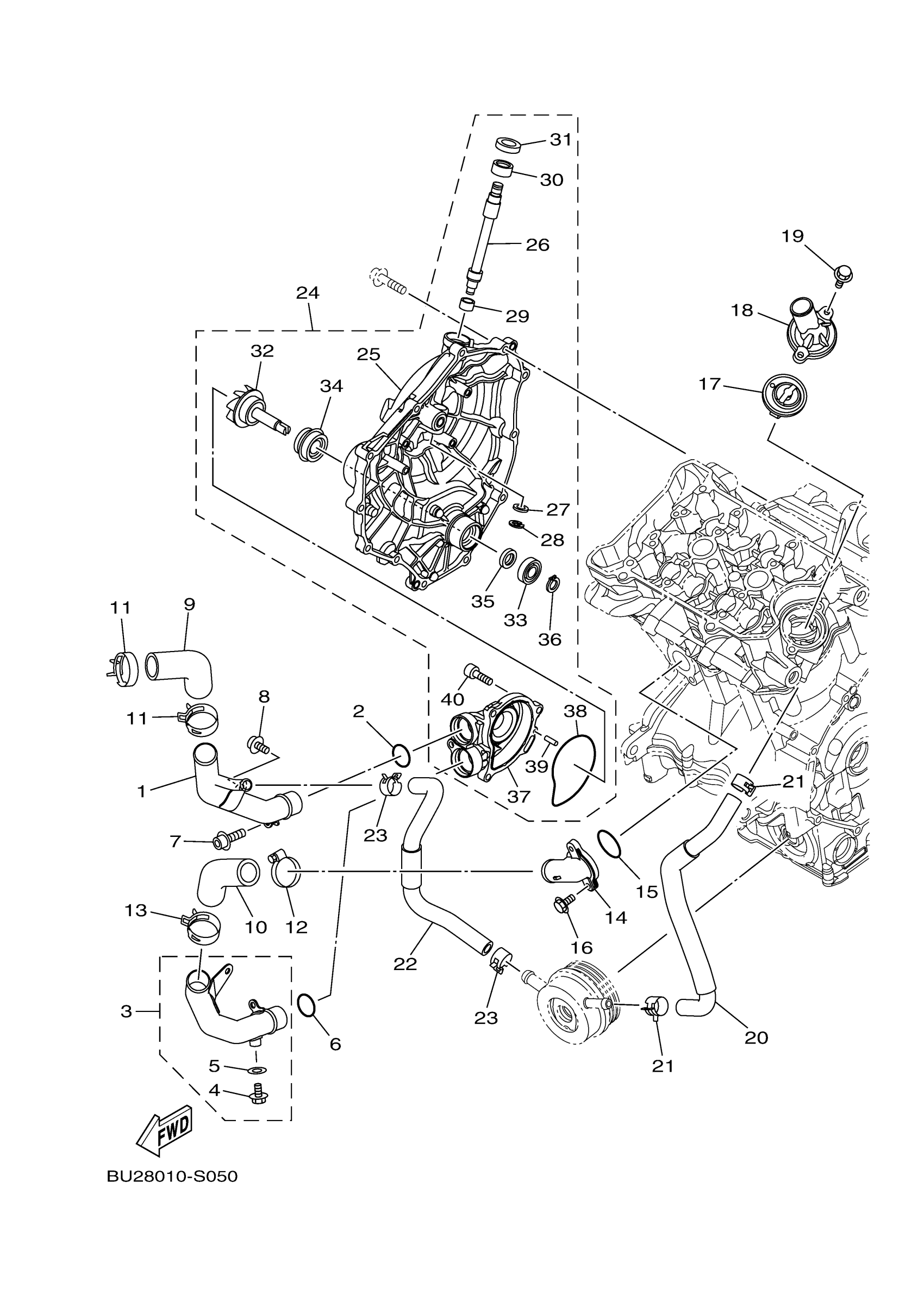

Find the part on the Water Pump diagram for your 2020 Yamaha MT07 (MT07LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha MT07 (MT07LL) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 1

1WS-12481-01-00

1

$67.35

In stock

2

O-RING

93210-235A1-00

1

$5.75

In stock

3

PIPE 2

1WS-12482-01-00

1

$76.60

In stock

4

BOLT, FLANGE

95022-06010-00

1

$5.45

In stock

5

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

6

O-RING

93210-235A1-00

1

$5.75

In stock

7

BOLT,SOCKET HEAD

91314-06014-00

1

$3.52

In stock

8

BOLT, HEXAGON SOCKET HEAD

90110-06152-00

1

$6.26

In stock

9

HOSE 1

1WS-12576-00-00

1

$8.29

In stock

10

HOSE 1

1WS-12576-00-00

1

$8.29

In stock

11

CLIP

90467-290A0-00

—

$14.64

In stock

12

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

13

CLIP

90467-290A0-00

—

$14.64

In stock

14

JOINT 1

1WS-12469-00-00

1

$29.85

In stock

15

O-RING

93210-33006-00

1

$4.85

In stock

16

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

17

THERMOSTAT ASSY

1WS-12410-01-00

—

$32.71

In stock

18

COVER, THERMOSTAT

1WS-12413-00-00

—

$42.89

In stock

19

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

20

HOSE 5

1WS-12588-00-00

—

$28.97

In stock

21

CLIP

90467-170A6-00

—

$2.29

In stock

22

HOSE 6

1WS-12589-00-00

—

$26.10

In stock

23

CLIP

90467-170A6-00

—

$2.29

In stock

24

WATER PUMP ASSY

1WS-12420-01-00

—

$329.11

In stock

25

COVER, CRANKCASE 2

1WS-15421-00-00

—

$150.47

In stock

26

AXLE, PUSH LEVER

2D1-16382-00-00

—

$72.85

In stock

27

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

28

CIRCLIP

99080-07600-00

1

$2.89

In stock

29

BEARING

93317-11096-00

—
Out of stock

30

BEARING

93315-21570-00

—

$14.64

In stock

31

OIL SEAL (3X3)

93102-15212-00

—

$7.34

In stock

32

IMPELLER SHAFT ASS

1WS-12450-00-00

—

$29.34

In stock

33

BRG,R-B 6001 28MM 28G KY

93306-00105-00

—

$25.40

In stock

34

SEAL, MECHANICAL

5VK-12438-00-00

—

$52.45

In stock

35

SEAL

2CR-13338-00-00

—

$8.70

In stock

36

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

37

COVER, HOUSING

1WS-12422-00-00

—

$60.97

In stock

38

O-RING

1WS-12439-00-00

—

$7.02

In stock

39

PIN,DOWEL (603)

93603-12007-00

—

$1.60

In stock

40

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock
