2020 Yamaha MT07 (MT07LL) Steering Handle & Cable Diagram

← All diagrams

Find the part on the Steering Handle & Cable diagram for your 2020 Yamaha MT07 (MT07LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

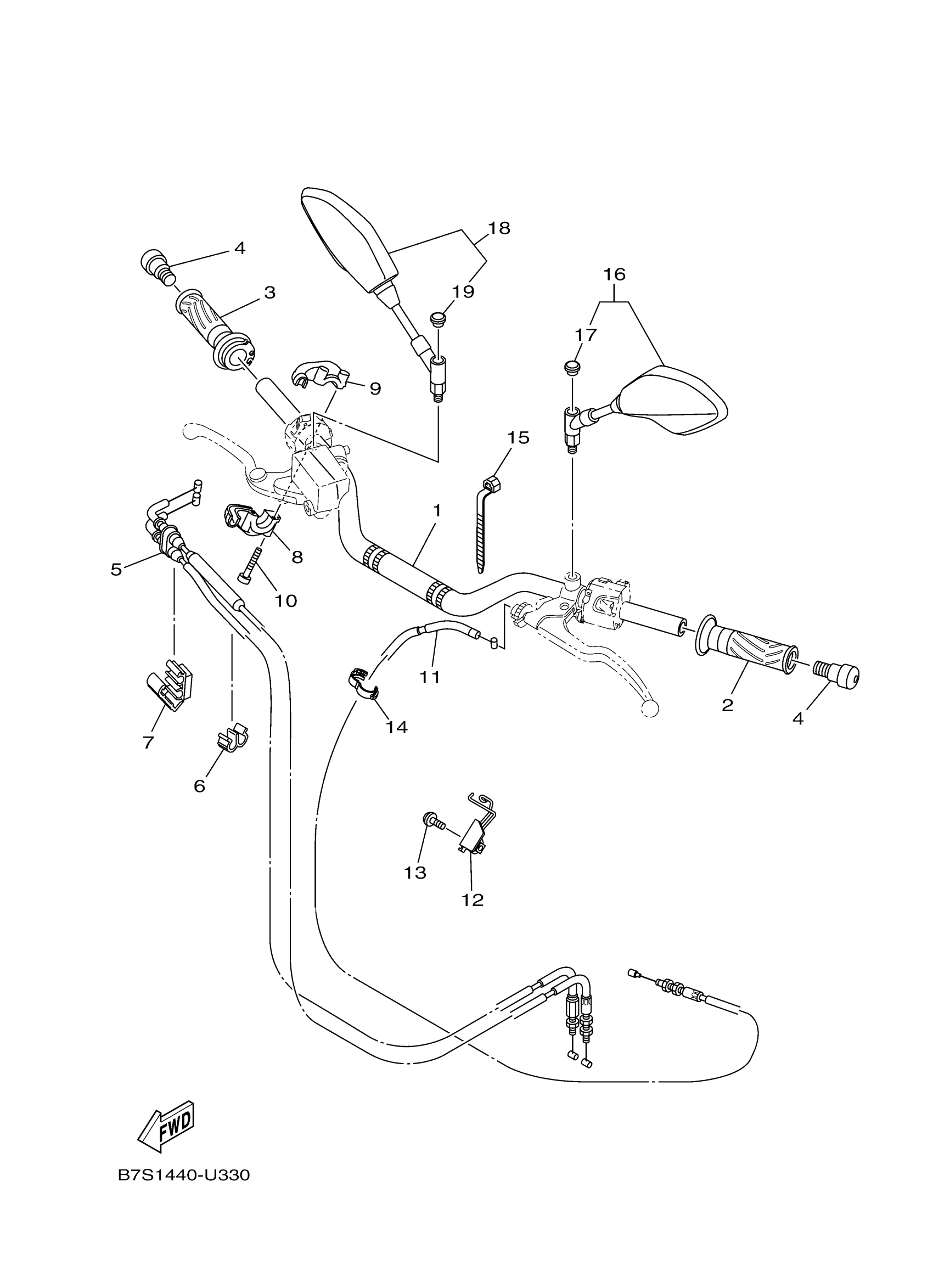

2020 Yamaha MT07 (MT07LL) Steering Handle & Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

B4C-26111-00-00

1

$72.85

In stock

2

GRIP

4YR-26241-03-00

1

$9.28

In stock

3

GRIP ASSY

1WS-26240-01-00

1

$22.71

In stock

4

END, GRIP

5RU-26246-00-00

1

$26.66

In stock

5

THROTTLE CABLE ASS

1WS-26301-00-00

—

$49.89

In stock

6

CLIP(33M)

90468-15139-00

1

$5.77

In stock

7

CLAMP,WIRE

39P-2627E-00-00

1

$4.62

In stock

8

CAP, GRIP UPPER

1WS-26281-00-00

1

$10.38

In stock

9

CAP, GRIP UNDER

1WS-26282-00-00

1

$12.27

In stock

10

BOLT, SOCKET

91317-05040-00

1

$1.95

In stock

11

CABLE, CLUTCH

1WS-26335-00-00

1

$22.83

In stock

12

BRACKET

1WS-2612E-00-00

—

$22.20

In stock

13

BOLT,HEX. SOCKET BUTTON

90111-06101-00

1

$6.31

In stock

14

CLAMP

90464-14010-00

1

$3.11

In stock

15

CLAMP

90464-25004-00

1

$2.30

In stock

16

REAR VIEW MIRROR ASSY (LEFT)

B5C-26280-09-00

—
Out of stock

17

CAP

23P-26133-00-00

—

$4.65

In stock

18

REAR VIEW MIRROR ASSY (RIGHT)

B5C-26290-09-00

—
Out of stock

19

CAP

23P-26133-00-00

—

$4.65

In stock
