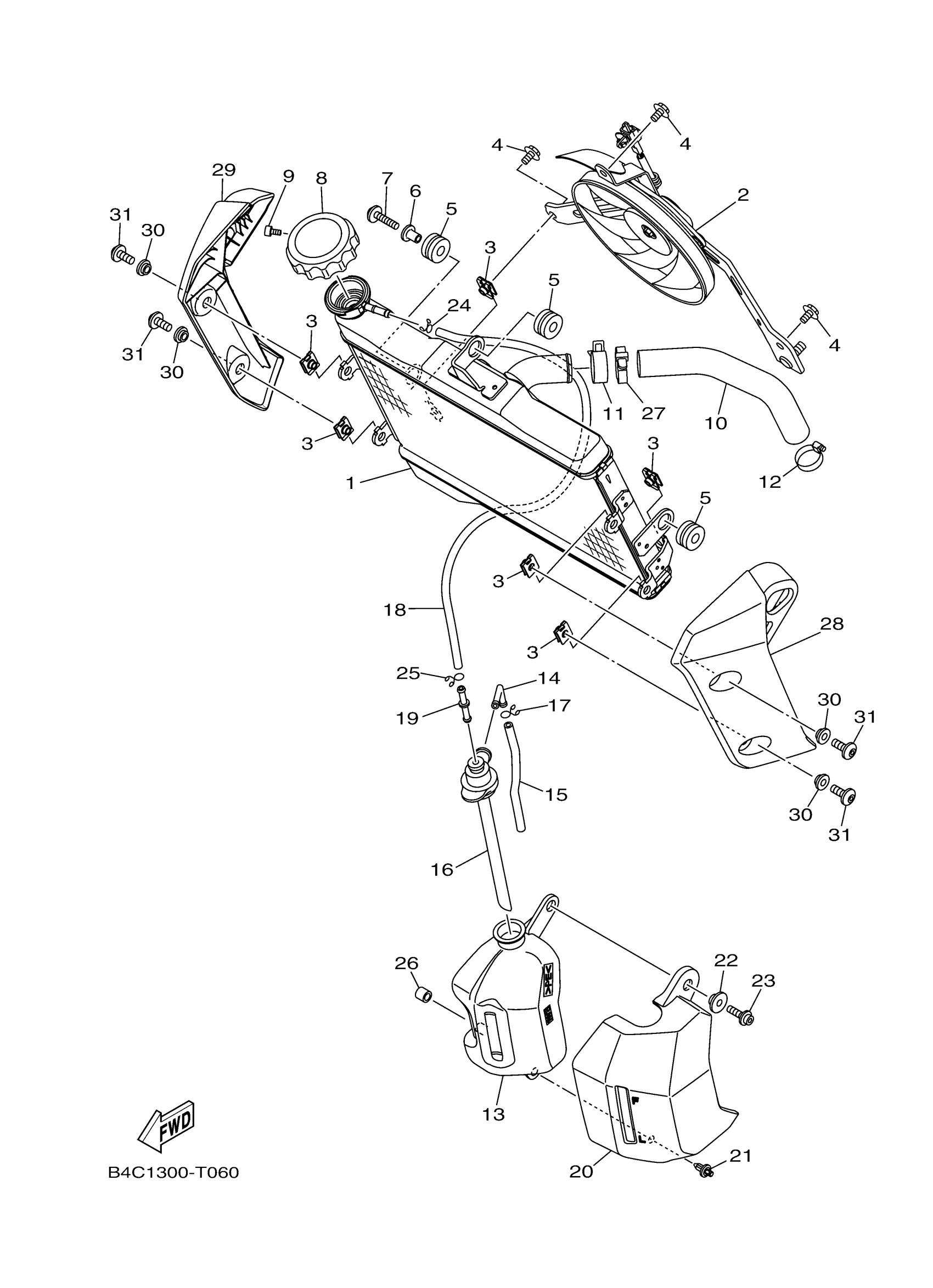

Yamaha MT07LL (MT07) B4CJ 2020 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

B34-12461-00-00

$271.94

2

BLOWER ASSY

1WS-12405-00-00

Unavailable

3

NUT 1

1WS-12671-00-00

$2.80

4

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$6.22

5

GROMMET (29L)

90480-15363-00

$5.75

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06156-00

$1.48

8

CAP, RADIATOR

3D7-12462-00-00

$36.16

9

BOLT, SOCKET

91317-03006-00

$7.03

10

HOSE 3

1WS-12578-00-00

$28.89

11

CLIP

90467-290A0-00

Unavailable

12

HOSE CLAMP ASSY

90450-35001-00

$4.90

13

TANK, RECOVERY

1WS-21871-01-00

$25.24

14

ELBOW

26H-21828-00-00

$20.48

15

HOSE

90445-08035-00

$11.11

16

CAP

3P6-21875-00-00

Unavailable

17

CLIP (16G)

90467-08021-00

Unavailable

18

PIPE 1

1WS-21816-00-00

Unavailable

19

JOINT

4XY-14568-00-00

Unavailable

20

COVER

1WS-2172W-00-00

Unavailable

21

RIVET

90269-06008-00

Unavailable

22

COLLAR (838-84757-00)

90387-06024-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

24

CLIP (16G)

90467-08021-00

Unavailable

25

CLIP 101235600

90467-08003-00

Unavailable

26

HOSE

90445-10064-00

Unavailable

27

CLAMP(6U0)

90464-07M40-00

Unavailable

28

COVER, SIDE 3

B4C-21731-00-00

Unavailable

29

COVER, SIDE 4

B4C-21741-00-00

Unavailable

30

COLLAR

90387-06130-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable
