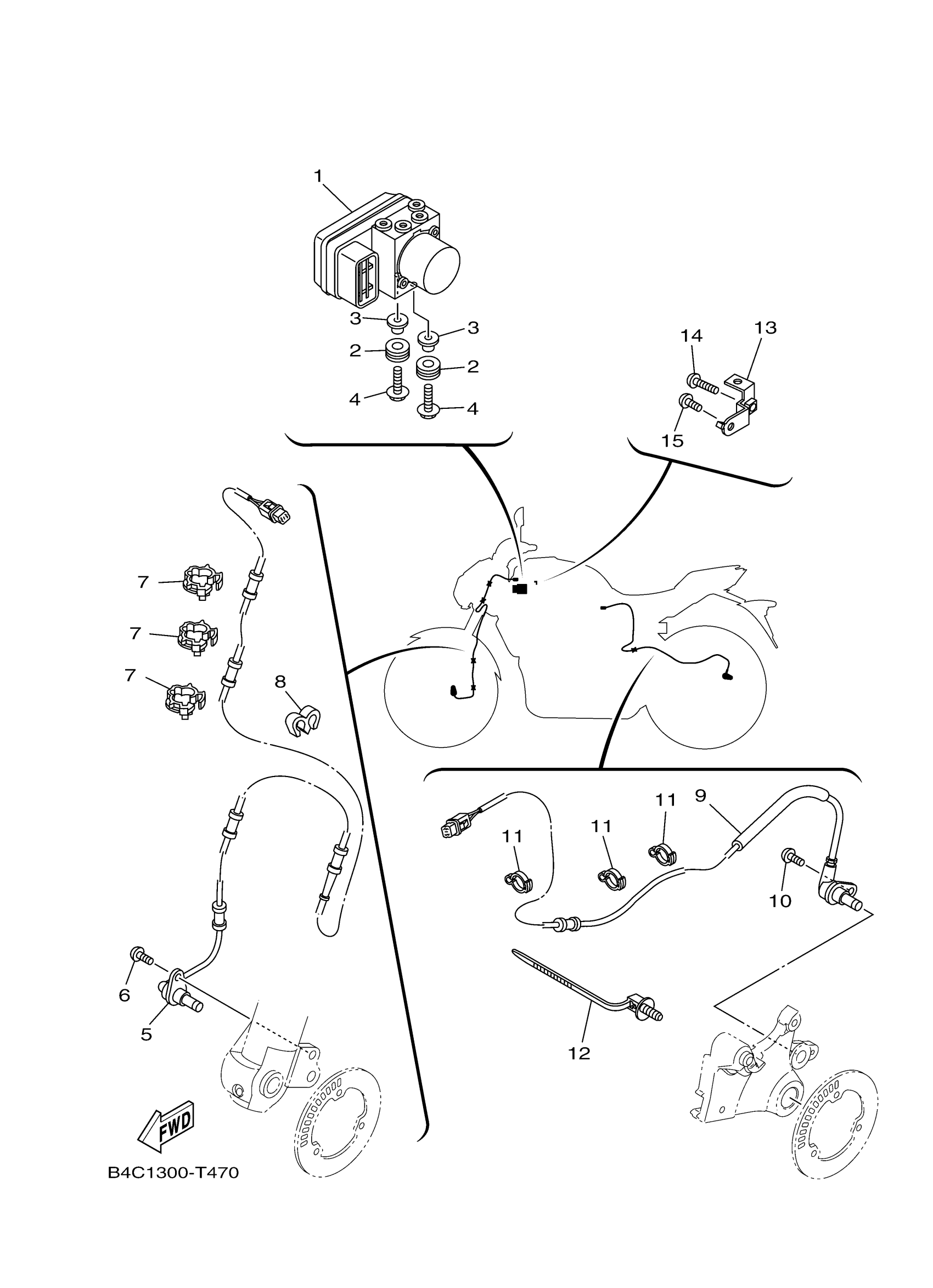

Yamaha MT07JW (MT07) B4C21 2018 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

BC6-85930-06-00

Unavailable

2

GROMET (3X3)

90480-14229-00

$5.75

3

COLLAR

90387-06M60-00

$6.37

4

BOLT, FLANGE

95817-06020-00

$2.52

5

WHEEL SENSOR ASSY,

1XB-85970-01-00

$145.39

6

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47

7

CLAMP

90464-12013-00

$6.27

8

CLAMP

90464-04001-00

$5.14

9

WHEEL SENSOR ASSY,

1XB-85980-01-00

Unavailable

10

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47

11

CLAMP(4GL)

90464-10233-00

$5.93

12

CLAMP

90464-30009-00

$3.07

13

BRACKET 1

1XB-2175T-00-00

Unavailable

14

BOLT, BUTTON HEAD

92012-06040-00

$3.11

15

BOLT, BUTTON HEAD

92012-06016-00

$5.80
