2018 Yamaha MT07 (MT07JW) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2018 Yamaha MT07 (MT07JW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

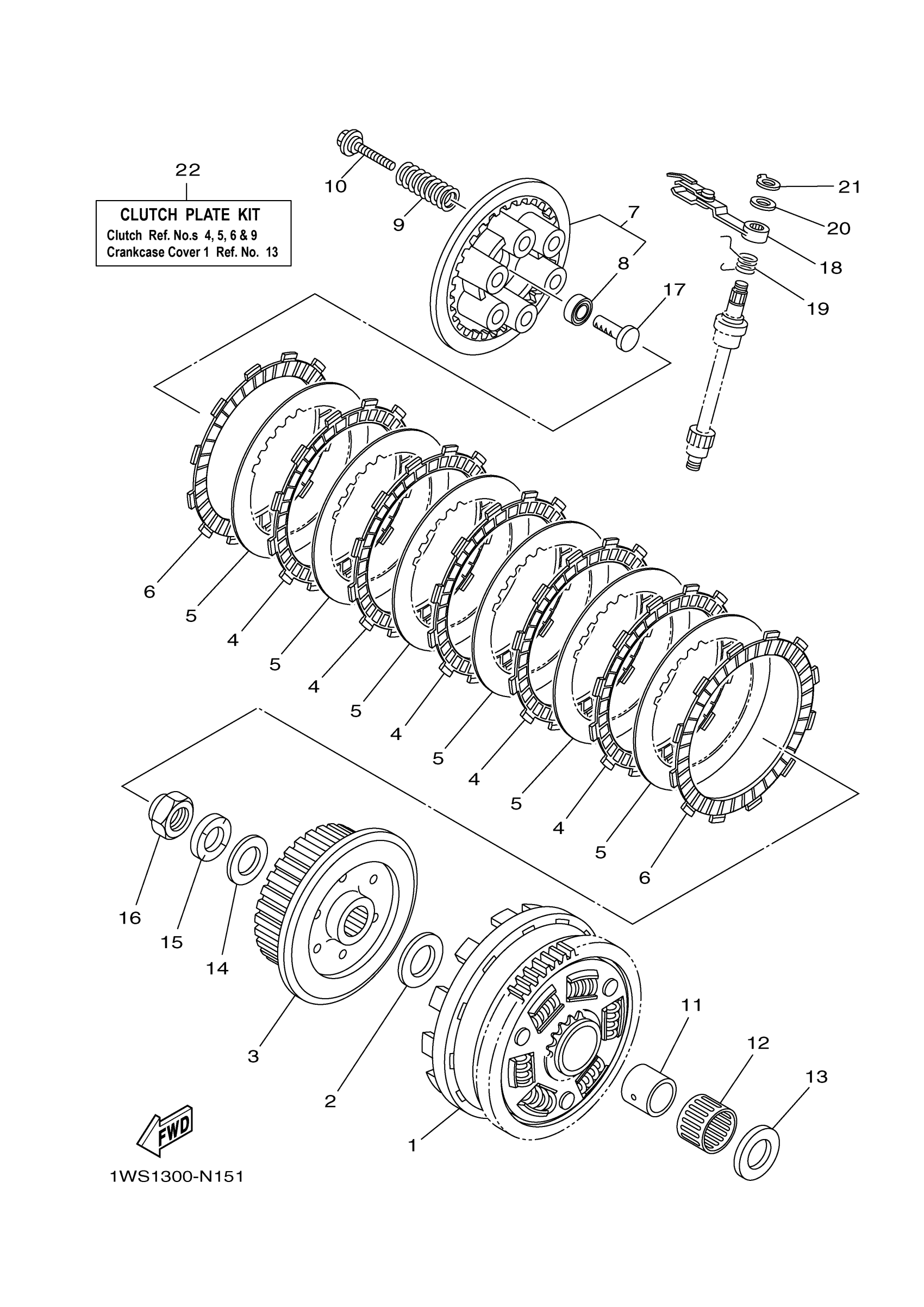

2018 Yamaha MT07 (MT07JW) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEA

1WS-16150-00-00

1
Out of stock

2

PLATE, THRUST

363-16154-00-00

1
Out of stock

3

BOSS, CLUTCH

1WS-16371-01-00

1
Out of stock

4

PLATE, FRICTION

5VY-16321-00-00

1
Out of stock

5

PLATE, CLUTCH 2

5VY-16325-20-00

1
Out of stock

6

PLATE, FRICTION

5TG-16321-00-00

1
Out of stock

7

PRESSURE PLATE ASS

1WS-16350-00-00

1
Out of stock

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1
Out of stock

9

SPRING, COMPRESSION(3GM)

90501-230E4-00

1
Out of stock

10

BOLT, WITH WASHER

90119-06263-00

1
Out of stock

11

SPACER 1

1WS-16181-00-00

1
Out of stock

12

BEARING

93310-232R9-00

1
Out of stock

13

PLATE, THRUST

363-16154-00-00

1
Out of stock

14

WASHER, PLATE

90201-20030-00

1
Out of stock

15

WASHER, CONICAL SPRING

90208-20001-00

1
Out of stock

16

NUT

90179-20022-00

—
Out of stock

17

ROD, PUSH 1

1WS-16356-00-00

—
Out of stock

18

PUSH LEVER ASSY

1WS-16340-01-00

—
Out of stock

19

SPRING, TORSION

90508-18132-00

—
Out of stock

20

WASHER, PLATE

90201-10029-00

—
Out of stock

21

CIRCLIP(10W)

99009-10400-00

—
Out of stock

22

CLUTCH PLATE KIT

BTK-W001G-00-00

—
Out of stock
