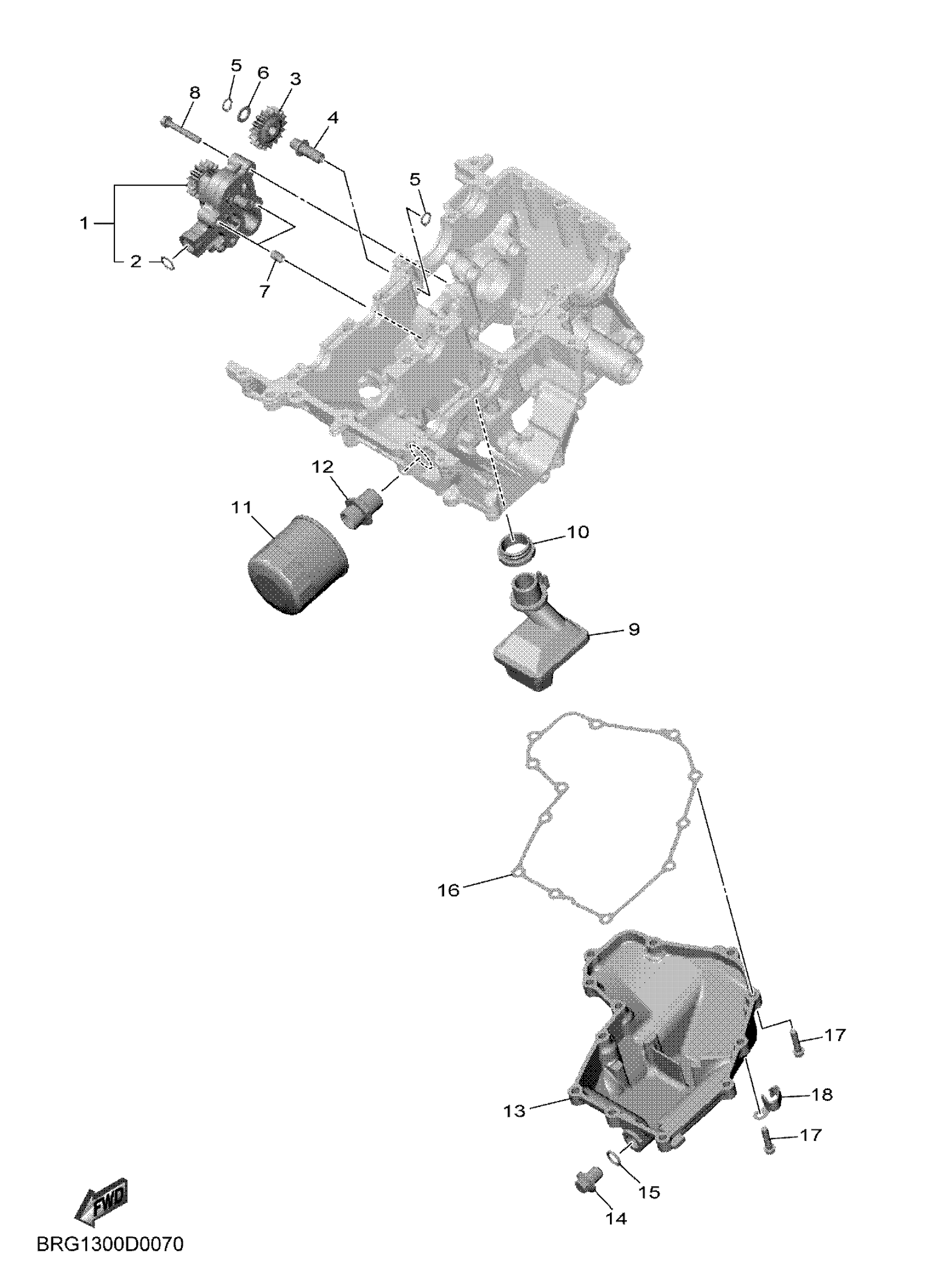

Yamaha MT03SL (MT03) BRG5 2025 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

B1X-E3300-00-00

Unavailable

2

CIRCLIP

99009-15500-00

$9.02

3

GEAR, OIL PUMP IDLE

1WD-E3341-00-00

$16.50

4

SHAFT, IDLE GEAR

1WD-E3342-00-00

$22.21

5

CIRCLIP(10W)

99009-10400-00

$3.65

6

WASHER, PLAIN(735)

90201-10119-00

Unavailable

7

PIN, DOWEL

99530-08012-00

$4.89

8

BOLT, WASHER BASED

90105-06027-00

$5.80

9

STRAINER HOUSING ASSY

1WD-E3410-00-00

$57.50

10

SEAL, OIL STRAINER

1WD-E3415-00-00

$2.80

11

ELEMENT ASSY, OIL CLEANER

1WD-E3440-21-00

Unavailable

12

BOLT, UNION

90401-20011-00

$39.11

13

COVER, STRAINER

B1X-E3417-01-00

$39.38

14

PLUG, STRAIGHT SCREW (5MX1)

90340-12808-00

$0.77

15

GASKET

812-11198-00-00

$6.03

16

GASKET, STRAINER COVER

B1X-E3414-00-00

$4.91

17

BOLT, FLANGE

95022-06025-00

Unavailable

18

CLAMP (5D91)

90462-08810-00

Unavailable
