2023 Yamaha MT-03 (MT03PL) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

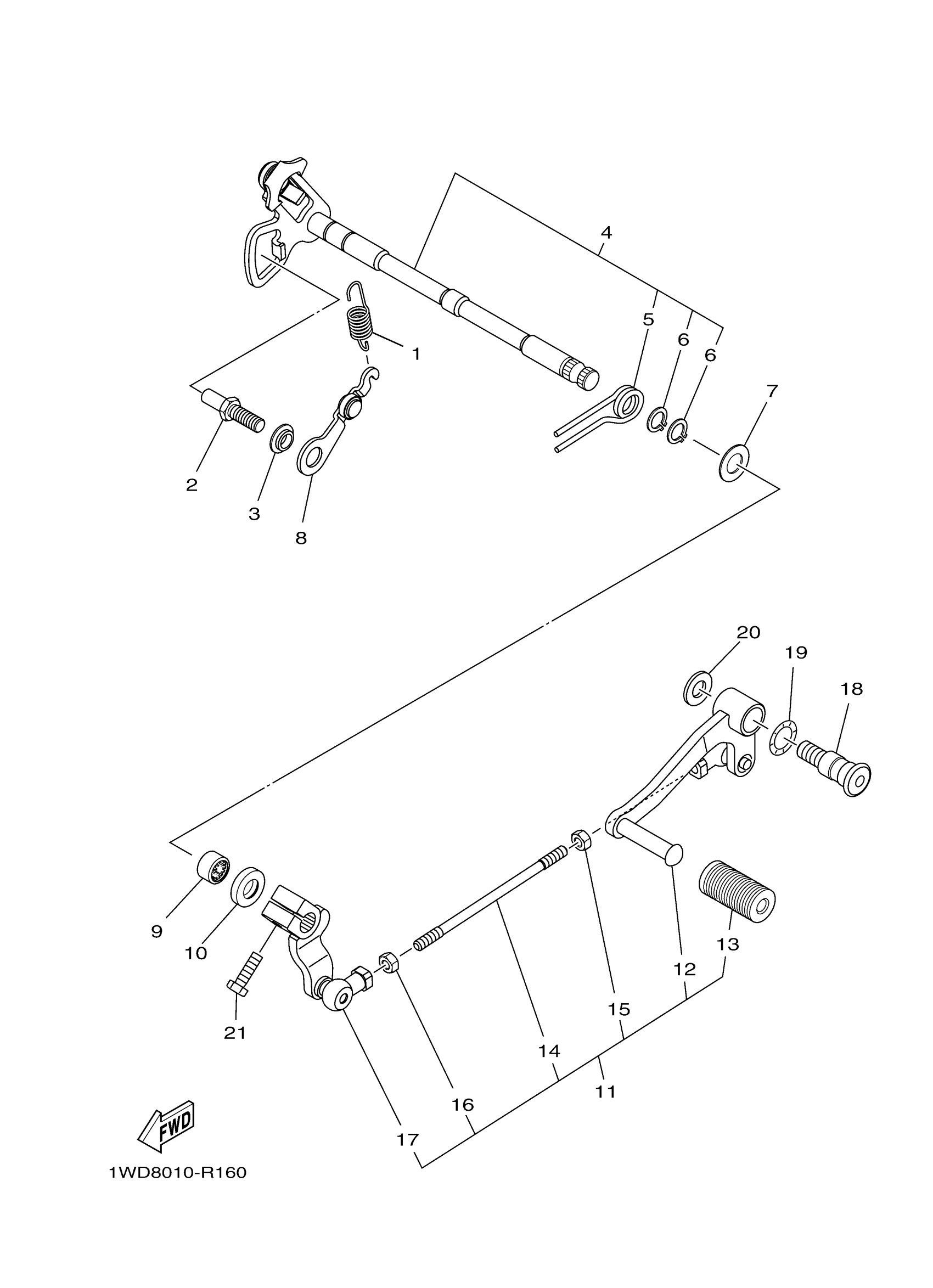

2023 Yamaha MT-03 (MT03PL) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING

1WD-E8337-00-00

1
Out of stock

2

STOPPER, SCREW

1WD-E8127-10-00

1
Out of stock

3

SPACER

1WD-E8175-00-00

—
Out of stock

4

SHIFT SHAFT ASSY

1WD-E8101-00-00

—
Out of stock

5

SPRING, TORSION

90508-29806-00

1
Out of stock

6

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

7

WASHER, PLATE (5N6)

90201-127E1-00

1
Out of stock

8

STOPPER LEVER ASSY

1WD-E8140-01-00

1
Out of stock

9

BEARING

93317-11295-00

1
Out of stock

10

OIL SEAL (12X22X5-371)

93102-12106-00

1
Out of stock

11

CHANGE PEDAL ASSY

B1X-E8110-01-00

1
Out of stock

12

PEDAL, SHIFT

1WD-E8111-00-00

1
Out of stock

13

COVER, SHIFT PEDAL

1EG-E8113-02-00

1
Out of stock

14

ROD, SHIFT

1WD-E8115-00-00

1
Out of stock

15

NUT

90170-06023-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1
Out of stock

17

ARM, SHIFT

B1X-E8112-00-00

—
Out of stock

18

SHAFT

BS8-F7261-00-00

—
Out of stock

19

WASHER, WAVE

90206-14001-00

—
Out of stock

20

WASHER, PLATE

90201-10021-00

—
Out of stock

21

BOLT, HEXAGON

97017-06020-00

—
Out of stock
