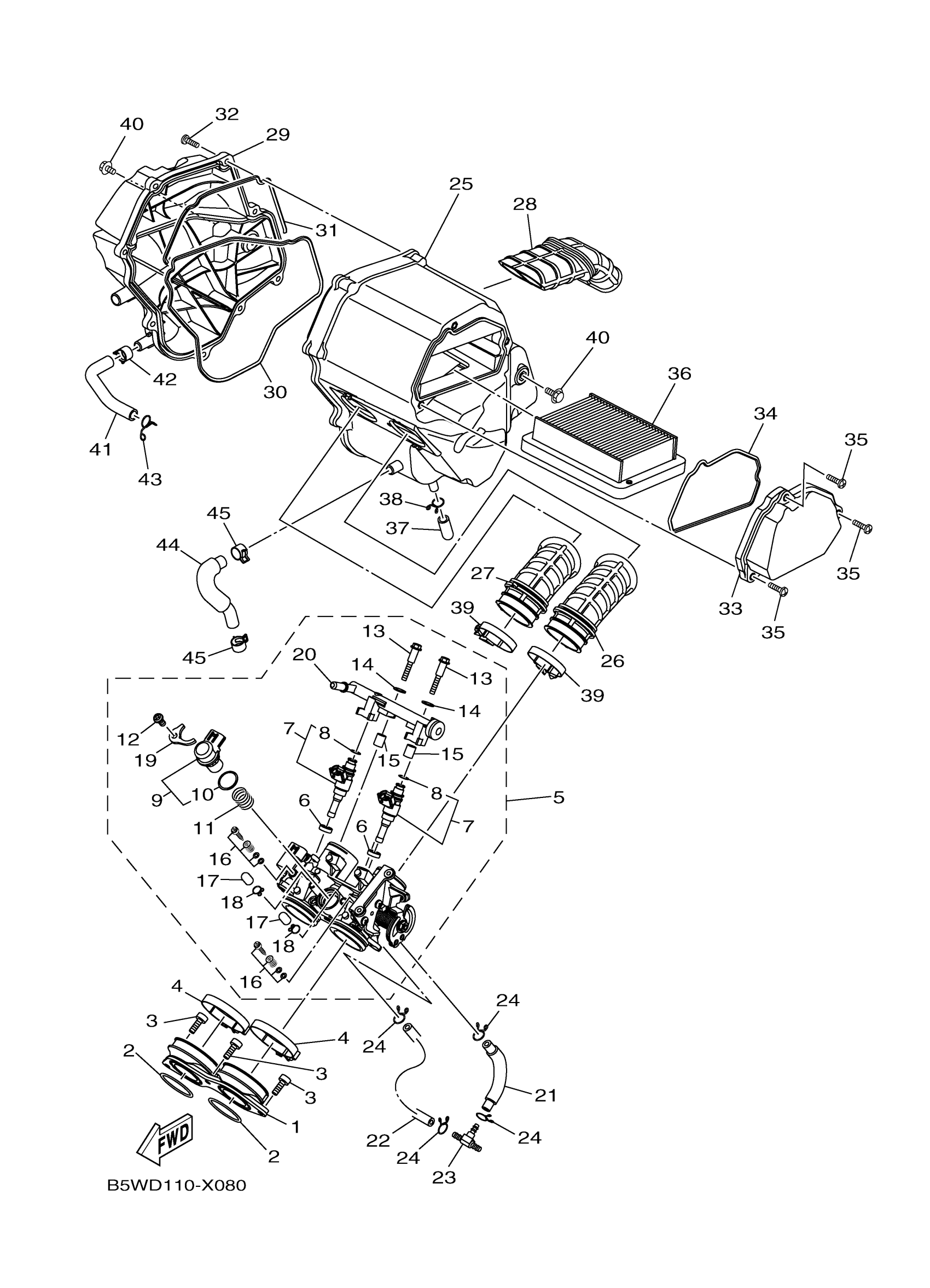

Find the part on the Intake diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT-03 (MT03PL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2MS-E3586-00-00

1

$57.26

In stock

2

O-RING(1FN)

93210-39700-00

1

$9.69

In stock

3

BOLT

91332-06016-00

—

$0.40

In stock

4

HOSE CLAMP ASSY

90450-55804-00

—

$2.65

In stock

5

THROTTLE BODY ASSY

2MS-E3750-02-00

—

$222.45

In stock

6

GASKET

1WD-E3556-00-00

1

$2.65

In stock

7

INJECTOR

1WD-E3761-00-00

1

$63.35

In stock

8

O-RING

5PS-14147-00-00

1

$10.95

In stock

9

STEPPING MOTOR

1WS-85801-02-00

1

$153.97

In stock

10

O-RING

54P-E416A-00-00

1

$6.43

In stock

11

SPRING, PLUNGER

1WS-14335-00-00

—

$9.52

In stock

12

SCREW, PAN

98517-06012-00

1

$3.14

In stock

13

BOLT 1

1WD-E3573-00-00

1

$1.22

In stock

14

WASHER

8GL-13571-00-00

1

$3.37

In stock

15

COLLAR

8HG-14534-00-00

1

$27.02

In stock

16

AIR SCREW SET

5JW-14104-00-00

—

$14.51

In stock

17

CAP

895-14169-00-00

—

$4.02

In stock

18

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

19

. PLATE

1WD-E4243-00-00

1

$4.18

In stock

20

PIPE

1WD-E3938-00-00

—

$71.99

In stock

21

PIPE (2MS1)

2MS-E4465-00-00

—
Out of stock

22

PIPE (2MS1)

2MS-E4466-00-00

—

$10.66

In stock

23

WAY 3

90413-06031-00

—

$8.22

In stock

24

CLIP

90467-090A2-00

—

$2.51

In stock

25

CASE, AIR CLEANER 1

1WD-E4411-00-00

1

$78.98

In stock

26

FUNNEL, AIR

2MS-E4469-00-00

1
Out of stock

27

FUNNEL 2

2MS-E446C-00-00

1
Out of stock

28

DUCT

1WD-E4437-00-00

1
Out of stock

29

CAP, CLEANER CASE 1

2MS-E4412-00-00

1
Out of stock

30

SEAL

1WD-E4452-00-00

—

$2.55

In stock

31

SEAL

1WD-E4457-00-00

1

$0.68

In stock

32

SCREW, TRUSS TAP.

97707-50025-00

—

$6.18

In stock

33

CAP, CLEANER CASE 2

1WD-E4422-00-00

—

$6.43

In stock

34

SEAL

1WD-E4462-00-00

—

$9.94

In stock

35

SCREW, BIND

98902-05020-00

—

$1.43

In stock

36

ELEMENT, AIR CLEANER

1WD-E4451-00-00

—

$24.54

In stock

37

PIPE, DRAIN

5TL-E443E-00-00

—
Out of stock

38

CLIP

90467-110A3-00

—

$4.23

In stock

39

BAND

54P-E3474-00-00

—

$9.94

In stock

40

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

41

HOSE, AIR

1WD-E3543-02-00

—

$2.77

In stock

42

CLIP

90467-13802-00

—

$2.62

In stock

43

CLIP (4X4)

90467-12052-00

—

$6.57

In stock

44

PIPE, BREATHER

2MS-E5373-02-00

1

$1.54

In stock

45

CLIP

90467-13802-00

—

$2.62

In stock
