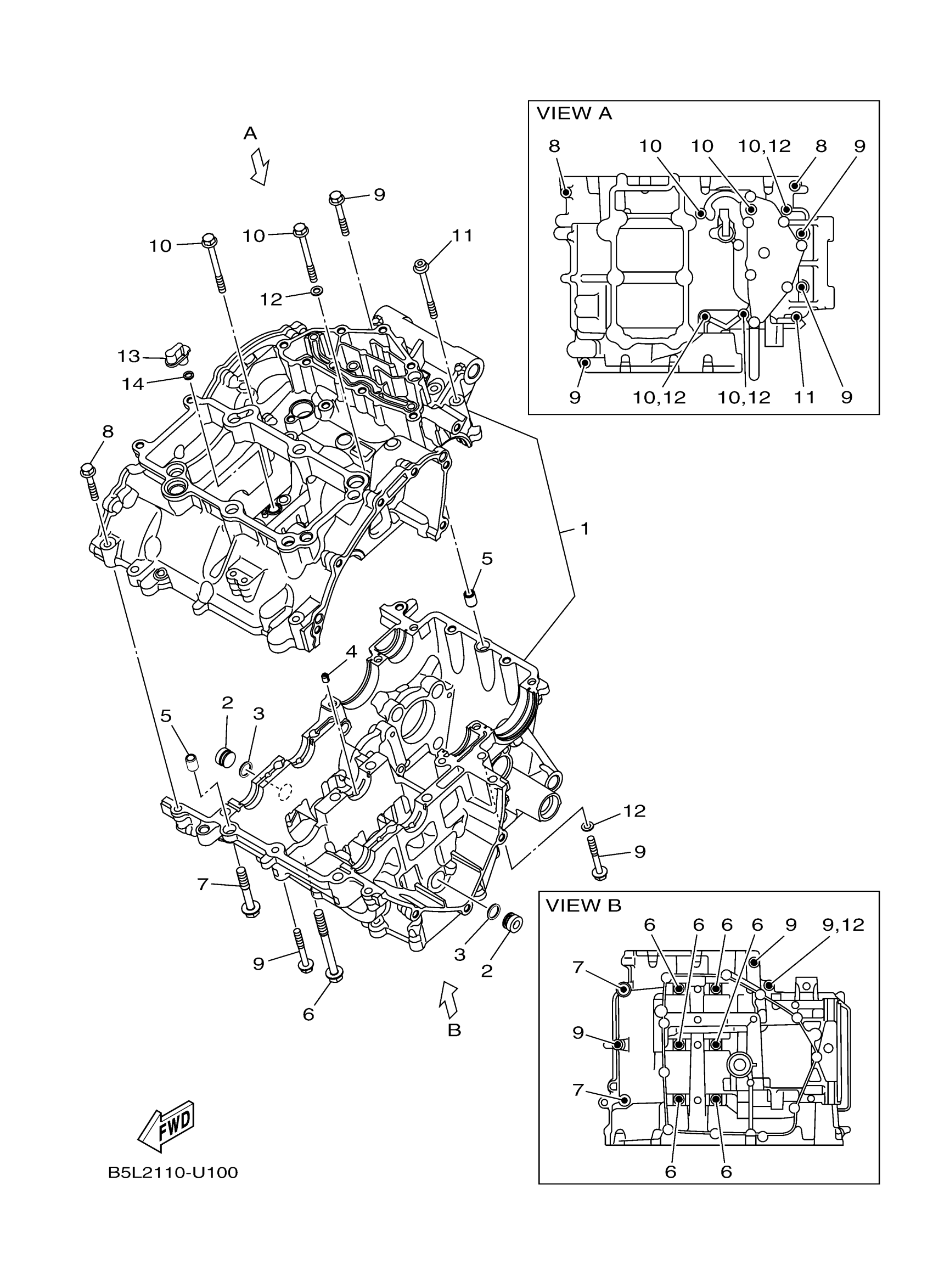

Find the part on the Crankcase diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT-03 (MT03PL) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY (2MS1)

1WD-E5150-20-00

1

$364.11

In stock

2

PLUG

90338-16262-00

1

$11.18

In stock

3

O-RING

93210-12803-00

—

$1.23

In stock

4

NOZZLE 2

1WD-E5148-00-00

1

$2.28

In stock

5

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

6

BOLT, FLANGE

90105-088F7-00

1

$26.22

In stock

7

BOLT, FLANGE

90105-088G0-00

1

$2.32

In stock

8

95812-06035

95812-06035-00

1

$5.35

In stock

9

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

10

BOLT, FLANGE

95812-06065-00

—

$5.14

In stock

11

BOLT, HEXAGON SOCKET HEAD

90110-06882-00

1

$30.37

In stock

12

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

13

NOZZLE 3

1WD-E5155-00-00

1

$8.49

In stock

14

O-RING (26H)

93210-06632-00

1

$6.68

In stock
