2022 Yamaha MT-03 (MT03NL) Shift Cam & Fork Diagram

← All diagrams

Find the part on the Shift Cam & Fork diagram for your 2022 Yamaha MT-03 (MT03NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

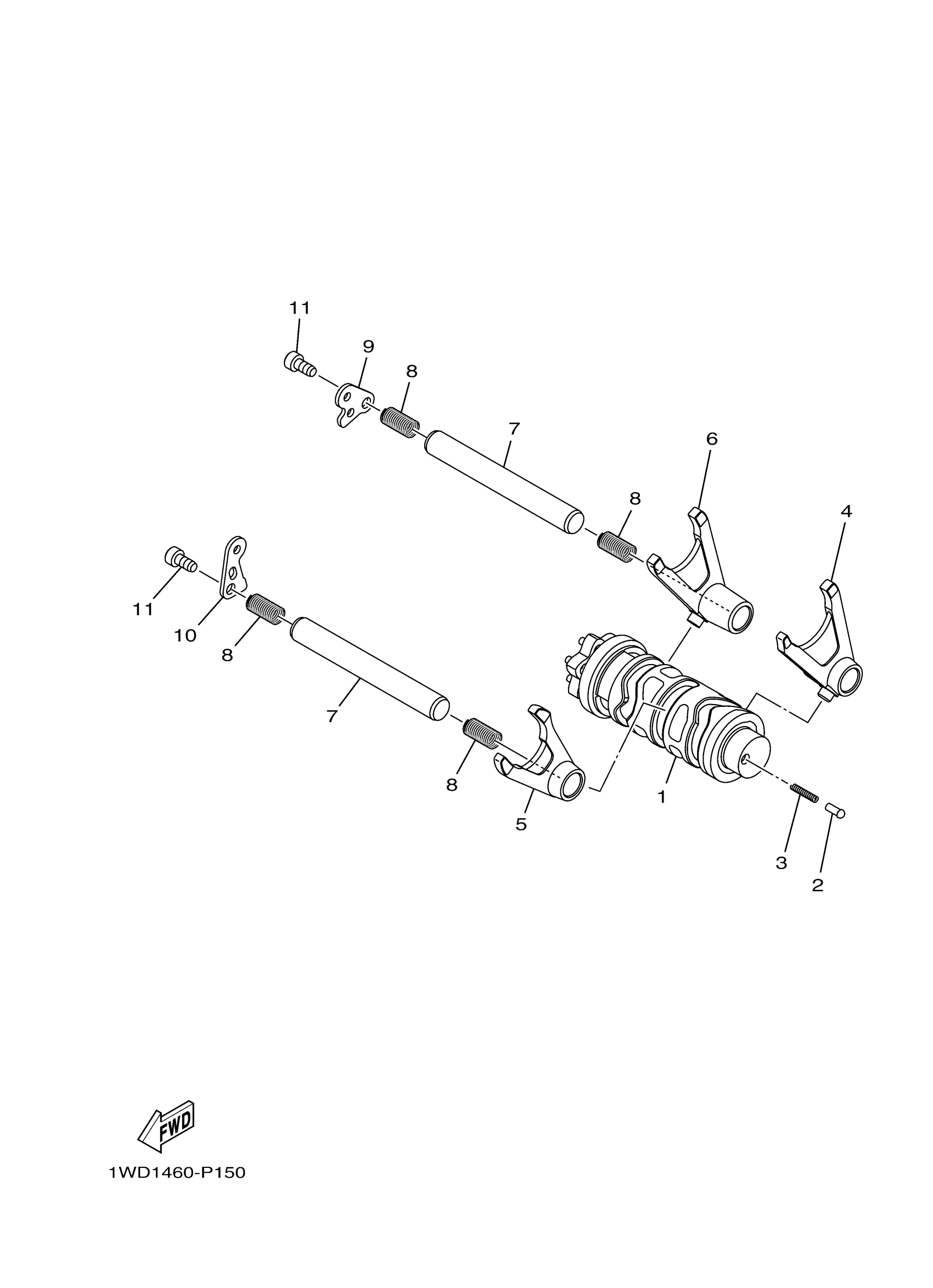

2022 Yamaha MT-03 (MT03NL) Shift Cam & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1WD-E8540-10-00

1
Out of stock

2

POINT, NEUTRAL

5TP-E8542-00-00

1
Out of stock

3

SPRING COMPRESSION278185450000

90501-06022-00

1
Out of stock

4

FORK, SHIFT 1

1WD-E8511-00-00

1
Out of stock

5

FORK, SHIFT 2

1WD-E8512-00-00

1
Out of stock

6

FORK, SHIFT 3

1WD-E8513-00-00

1
Out of stock

7

BAR, SHIFT FORK GUIDE 1

1WD-E8531-00-00

1
Out of stock

8

SPRING, COMPRESSION

90501-080A2-00

1
Out of stock

9

STOPPER, SHIFT BAR

1WD-E8536-00-00

—
Out of stock

10

PLATE, STOPPER 2

1WD-E8562-00-00

1
Out of stock

11

BOLT,SOCKET

91317-06012-00

1
Out of stock
