2022 Yamaha MT-03 (MT03NL) Electrical 3 Diagram

← All diagrams

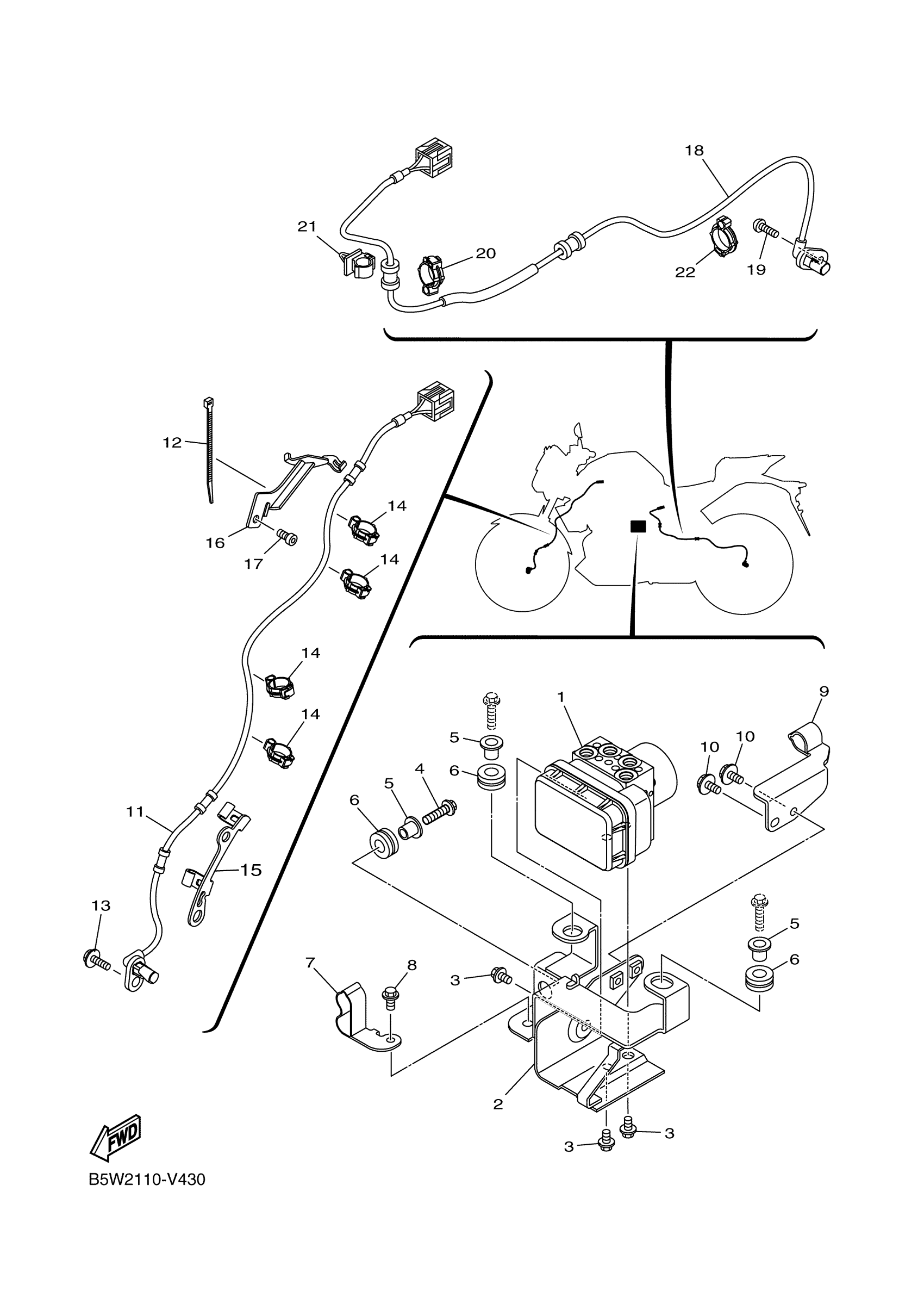

Find the part on the Electrical 3 diagram for your 2022 Yamaha MT-03 (MT03NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha MT-03 (MT03NL) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HYDRAULIC UNIT ASS

2WD-85930-08-00

1
Out of stock

2

BRACKET 1

B1X-F175T-00-00

1
Out of stock

3

BOLT, FLANGE

95022-06010-00

1
Out of stock

4

BOLT, FLANGE

95022-06025-00

1
Out of stock

5

COLLAR

90387-06M60-00

1
Out of stock

6

GROMET (3X3)

90480-14229-00

1
Out of stock

7

HOLDER, BRAKE HOSE

2WD-F5886-00-00

—
Out of stock

8

BOLT, FLANGE(4MY)

95027-06012-00

1
Out of stock

9

HOLDER, BRAKE HOSE 1

2WD-F5875-00-00

—
Out of stock

10

BOLT, FLANGE(4MY)

95027-06012-00

1
Out of stock

11

WHEEL SENSOR ASSY, FRONT

2WD-85970-01-00

—
Out of stock

12

CLAMP (5MX1)

90464-22800-00

—
Out of stock

13

BOLT, WASHER BASED(JA9)

90105-06696-00

1
Out of stock

14

CLAMP

90464-12013-00

1
Out of stock

15

WIRE, HOLDER 1

B5L-F3318-00-00

1
Out of stock

16

WIRE, HOLDER 2

B6W-F3319-00-00

—
Out of stock

17

BOLT,SOCKET

91317-06012-00

—
Out of stock

18

WHEEL SENSOR ASSY, REAR

2WD-85980-01-00

—
Out of stock

19

BOLT, BUTTON HEAD

92012-06016-00

—
Out of stock

20

CLAMP

90464-14803-00

1
Out of stock

21

CLAMP

90464-10800-00

—
Out of stock

22

CLAMP

90464-14803-00

1
Out of stock
