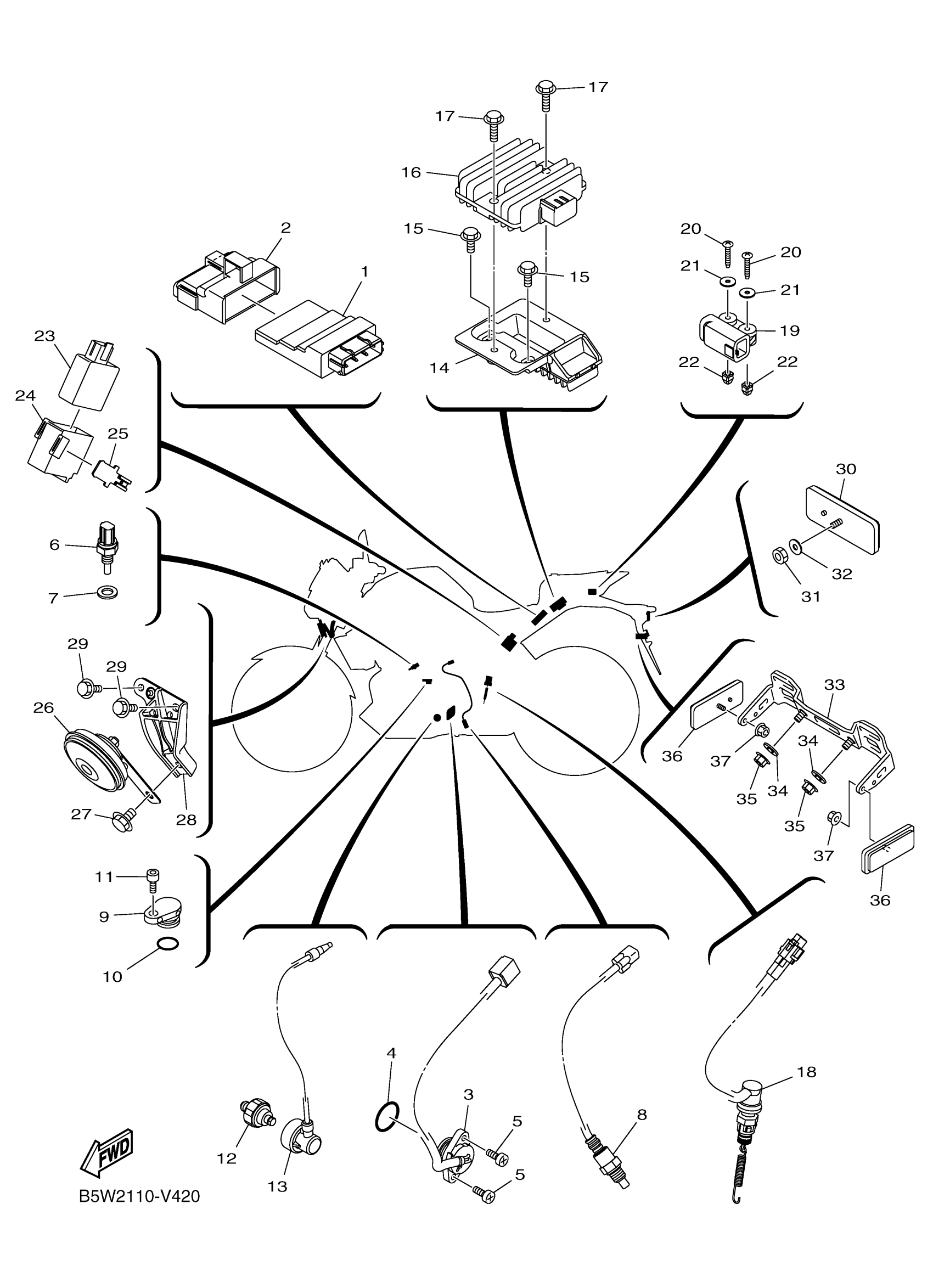

Find the part on the Electrical 2 diagram for your 2021 Yamaha MT-03 (MT03MGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT-03 (MT03MGY) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE CONTROL UNIT ASSY

B02-H591A-10-00

1
Out of stock

2

BAND

B9T-H5546-00-00

1
Out of stock

3

NEUTRAL SWITCH ASSY

1WD-H2540-00-00

—
Out of stock

4

O-RING (1S71)

93210-21801-00

1
Out of stock

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

1
Out of stock

6

THERMO UNIT

52B-H3591-00-00

1
Out of stock

7

GASKET

90430-10804-00

1
Out of stock

8

SENSOR OXYGEN

1WD-H592A-10-00

1
Out of stock

9

PLUG

2WD-E5189-00-00

—
Out of stock

10

O-RING (22U)

93210-15566-00

1
Out of stock

11

BOLT

91332-06016-00

—
Out of stock

12

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

1
Out of stock

13

LEAD WIRE ASSY

1WD-H1315-01-00

1
Out of stock

14

COVER

1WD-H1961-00-00

1
Out of stock

15

BOLT, FLANGE DEEP RECESS

95D02-06016-00

1
Out of stock

16

RECTIFIER & REGULATOR ASSY

1WD-H1960-00-00

—
Out of stock

17

BOLT, FLANGE DEEP RECESS

95D02-06025-00

—
Out of stock

18

STOP SWITCH ASSY

1WD-H2530-10-00

—
Out of stock

19

SENSOR, LEAN ANGLE

1WD-H2576-00-00

—
Out of stock

20

SCREW, ROUND TAPPING

90160-04009-00

—
Out of stock

21

WASHER, PLATE

90201-04028-00

—
Out of stock

22

NUT, ADJUSTING

4B4-84334-00-00

—
Out of stock

23

FLASHER CONT. UNIT ASSY

B9T-83400-00-00

—
Out of stock

24

BAND

B9T-H3836-00-00

—
Out of stock

25

BRACKET, FLASHER R

B9T-H3352-00-00

—
Out of stock

26

HORN

B9T-H3371-00-00

—
Out of stock

27

BOLT, FLANGE DEEP

95D07-08012-00

—
Out of stock

28

STAY, HORN

1WD-H3378-00-00

1
Out of stock

29

BOLT, FLANGE DEEP RECESS

95D07-06016-00

—
Out of stock

30

REAR REFLECTOR ASSY

3C1-H5130-00-00

—
Out of stock

31

NUT, U

95617-05100-00

—
Out of stock

32

WASHER, PLATE

90201-05043-00

—
Out of stock

33

BRACKET, LICENSE

2MS-H4751-00-00

—
Out of stock

34

WASHER, PLATE

90201-06055-00

1
Out of stock

35

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

36

REAR REFLECTOR ASSY

3C1-H5130-00-00

—
Out of stock

37

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock
