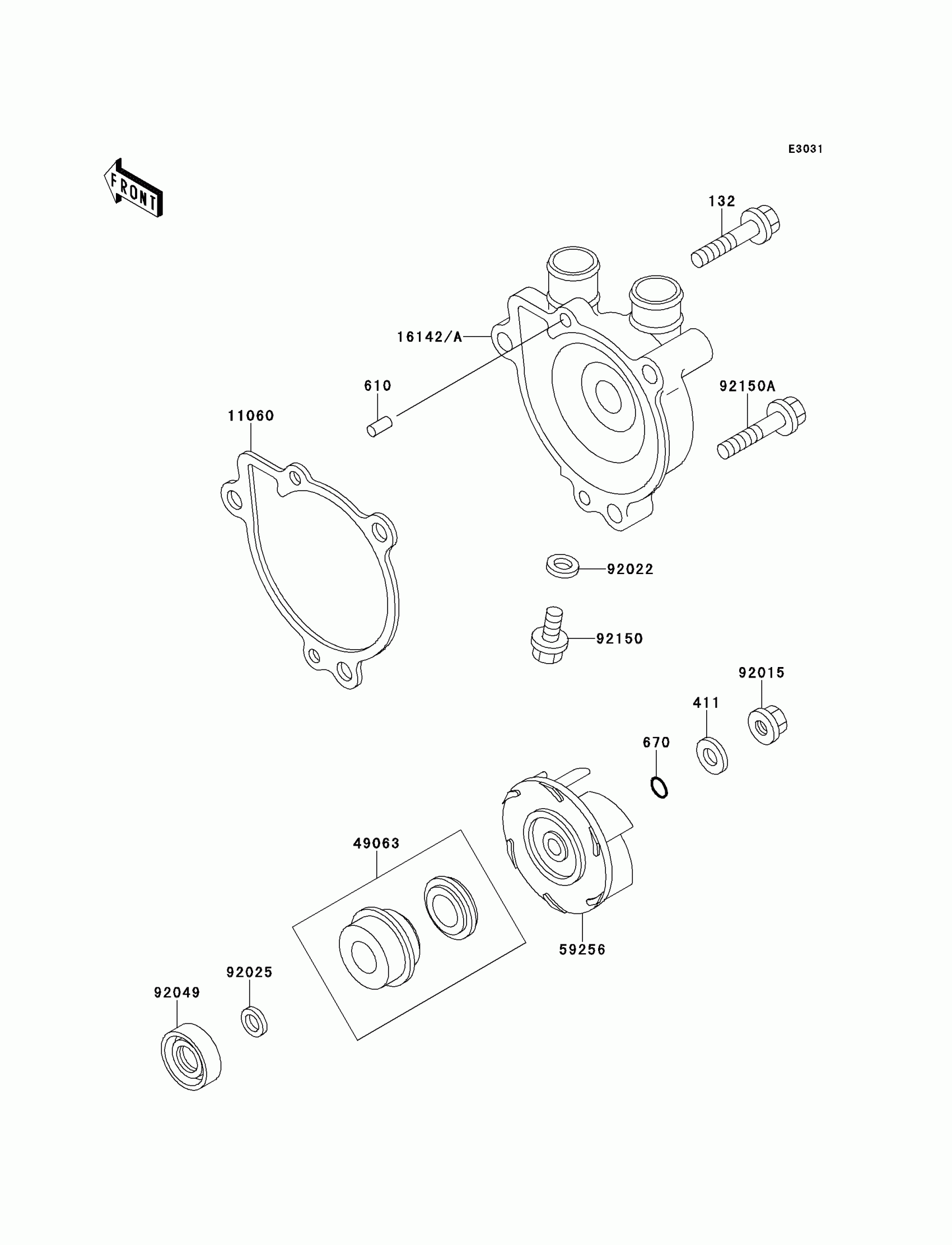

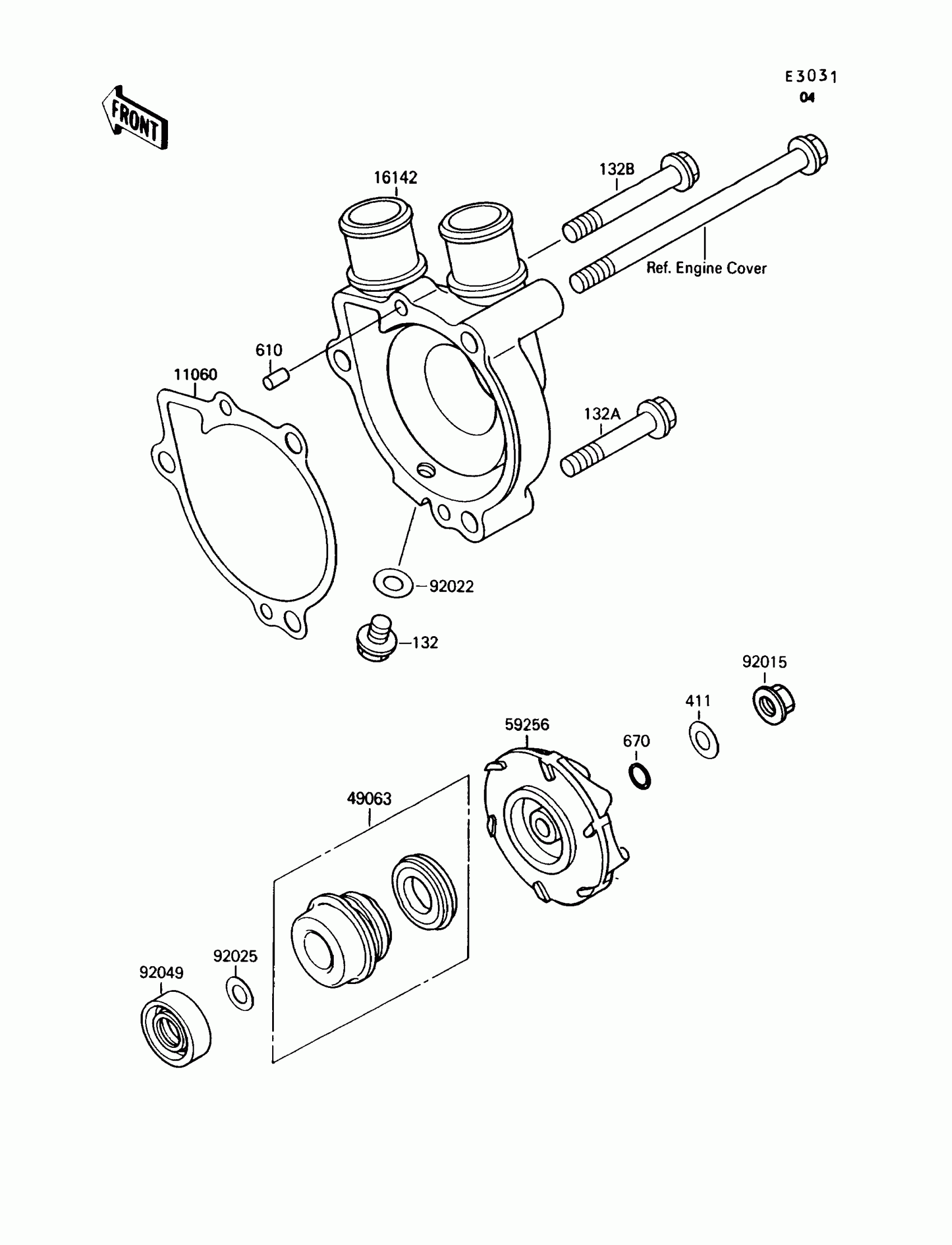

Kawasaki Mojave 250 Water Pump Diagram

Description

Price

11060

GASKET,PUMP COVER

11060-1241

$8.32

16142

COVER-PUMP

16142-1069

Unavailable

49063

SEAL-MECHANICAL

49063-1054

$13.09

59256

IMPELLER

59256-1055

$27.71

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.92

92025

SHIM,T=0.8

92025-1507

$2.59

92049

SEAL-OIL,SC10227

92049-1157

$7.38

132

BOLT-FLANGED-SMALL,6X8

132J0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

132B

BOLT-FLANGED-SMALL

132J0645

Unavailable

411

WASHER PLAIN

411F0600

$1.08

610

ROLLER,4X8

610A0408

$3.43

670

O RING,6MM

670B1506

$1.14
