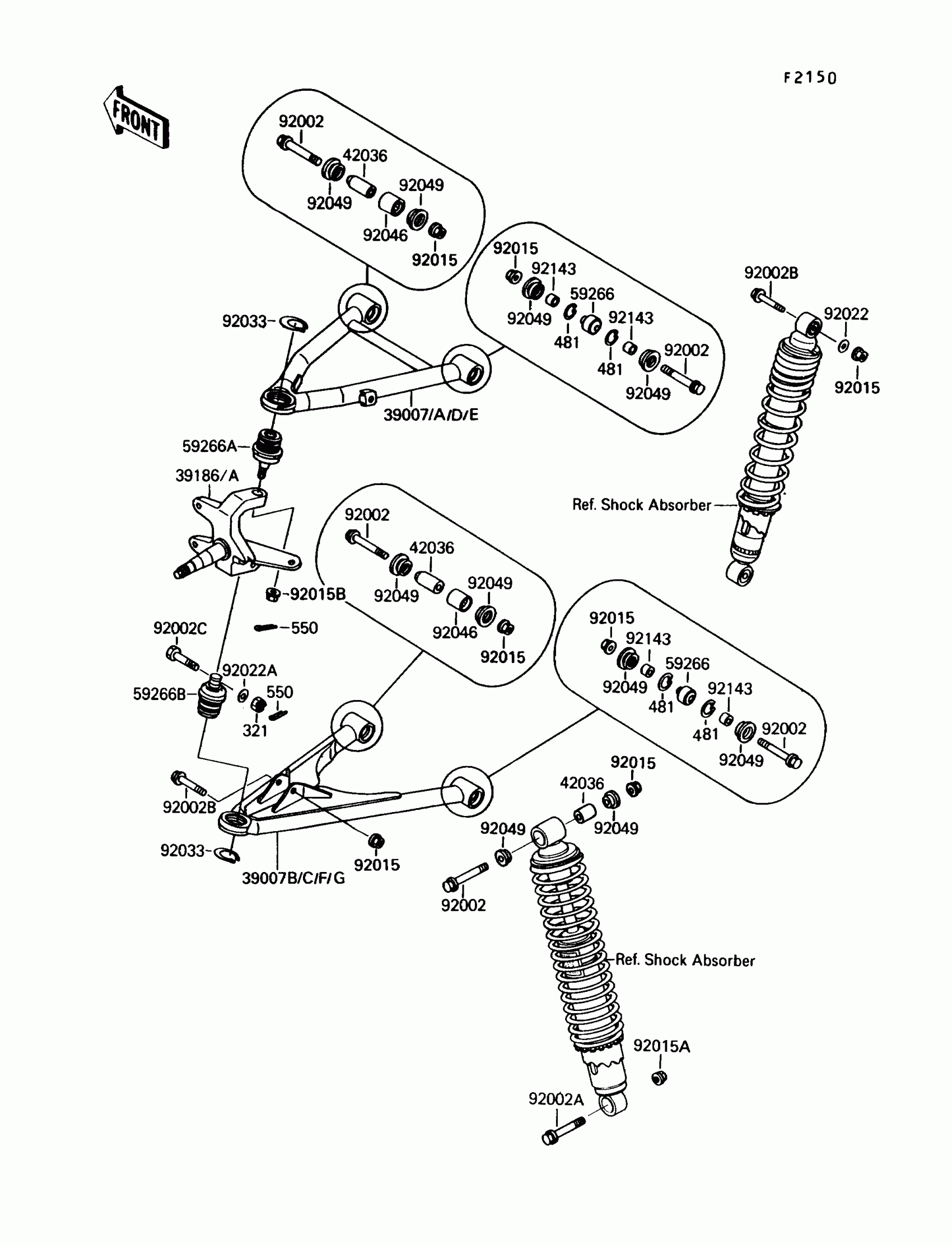

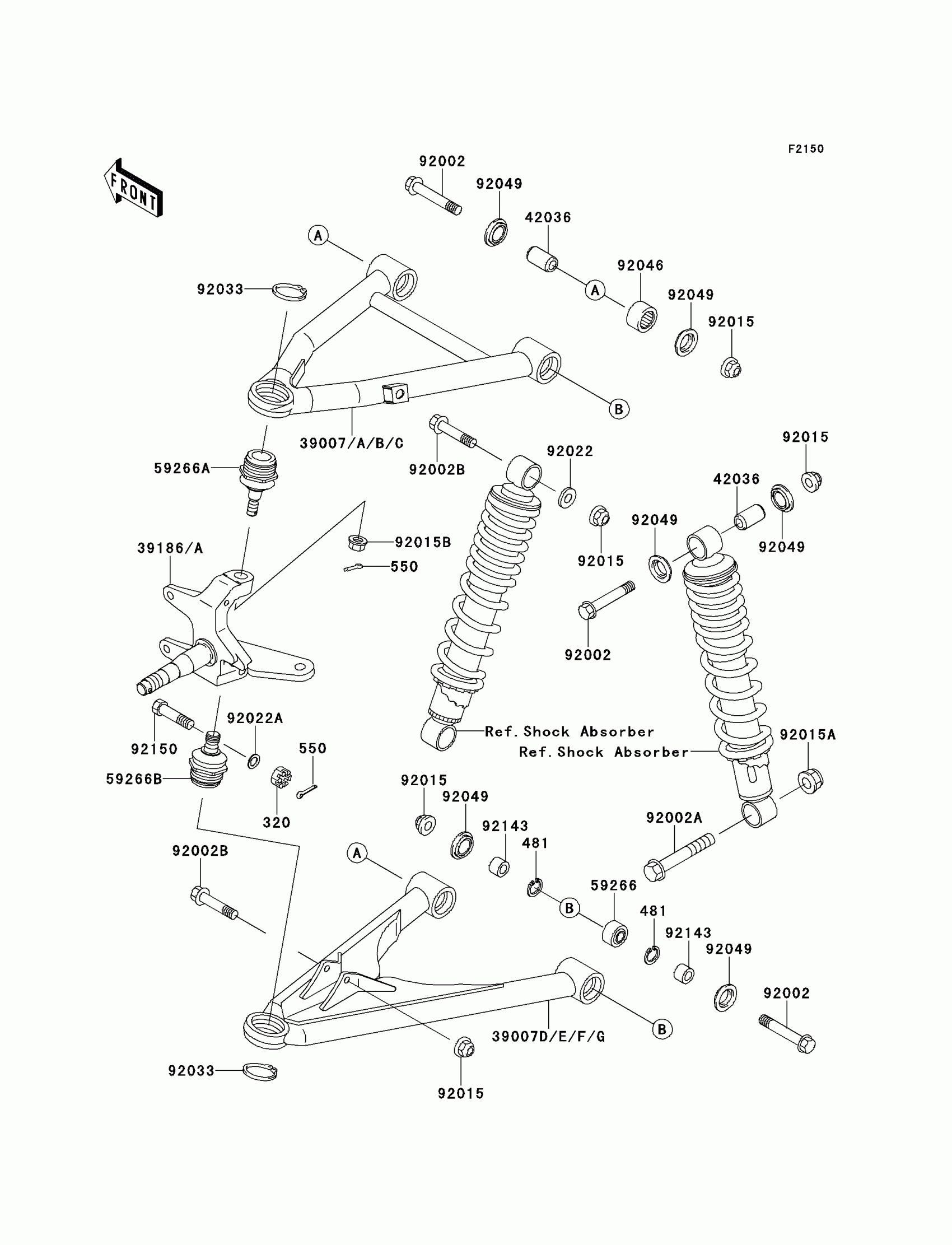

Kawasaki Mojave 250 Suspension Diagram

#

Description
Price

39007D

ARM-SUSP,LH,UPP,L.GREEN

39007-1220-CC

Unavailable

39007E

ARM-SUSP,RH,UPP,L.GREEN

39007-1221-CC

Unavailable

39007F

ARM-SUSP,FR,LH,LWR,L.GREEN

39007-1222-CC

Unavailable

39007G

ARM-SUSP,FR,RH,LWR,L.GREEN

39007-1223-CC

Unavailable

39186

KNUCKLE,LH

39186-1062

$307.37

39186A

KNUCKLE,RH

39186-1064

$307.37

42036

SLEEVE,10X17X40

42036-1183

$16.83

59266

JOINT-BALL

59266-1011

$60.17

59266A

JOINT-BALL

59266-1075

$99.07

59266B

JOINT-BALL

59266-1077

$104.32

92002

BOLT,FLANGED,10X61

92002-1738

$7.71

92002A

BOLT,FLANGED,12X78

92002-1739

$12.73

92002B

BOLT,FLANGED,10X46

92002-1740

$7.56

92002C

BOLT,10X41

92002-1741

Unavailable

92015

NUT,LOCK,10MM

92015-1597

$4.37

92015A

NUT,LOCK,12MM

92015-1617

$7.14

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$7.86

92022

WASHER,10X22X3.2

92022-176

$4.25

92022A

WASHER,10.2X16X1

92022-1829

$3.43

92033

RING-SNAP,30MM

92033-1218

$7.95

92046

BEARING-NEEDLE

92046-1046

$24.62

92049

SEAL-OIL,MHA17245.7F

92049-1223

$7.04

92143

COLLAR,10X17X12

92143-1010

$8.92

321

NUT-CASTLE

321H1000

Unavailable

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.58

550

PIN COTTER 2.0X15

550D2015

Unavailable
