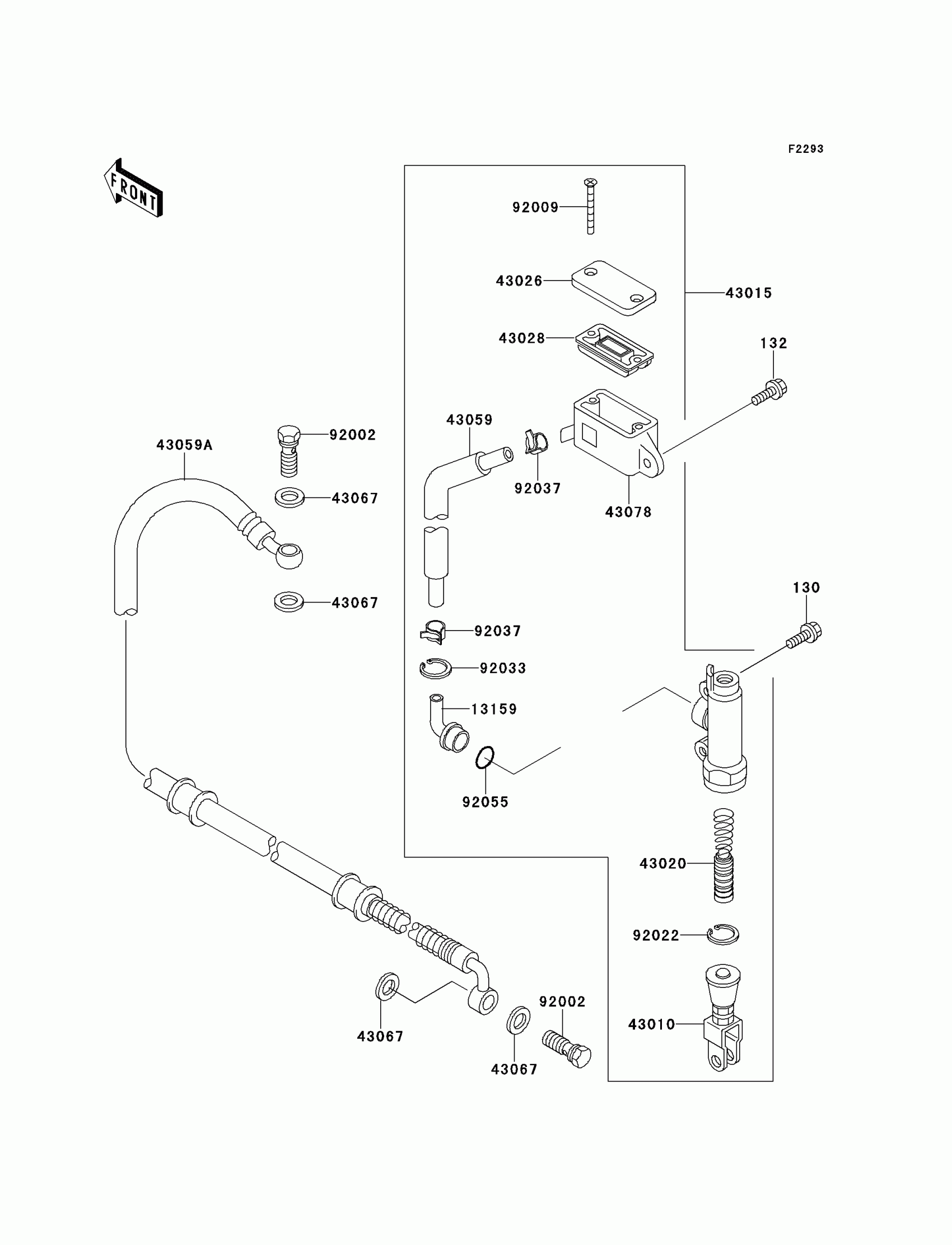

Kawasaki Mojave 250 Rear Master Cylinder Diagram

Description

Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE,RR

43010-1060

$71.93

43015

CYLINDER-ASSY-MASTER,RR

43015-1326

$422.29

43020

PISTON-COMP-BRAKE

43020-1063

$59.90

43026

CAP-BRAKE

43026-1022

$52.90

43028

DIAPHRAGM

43028-1061

$12.79

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1369

Unavailable

43059A

HOSE-BRAKE,RR

43059-1397

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.81

43078

RESERVOIR

43078-1078

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.35

92009

SCREW,5MM

92009-1409

$5.12

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.94

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

130

BOLT-FLANGED,8X14

130S0814

Unavailable

132

BOLT-FLANGED-SMALL

132G0614

Unavailable
