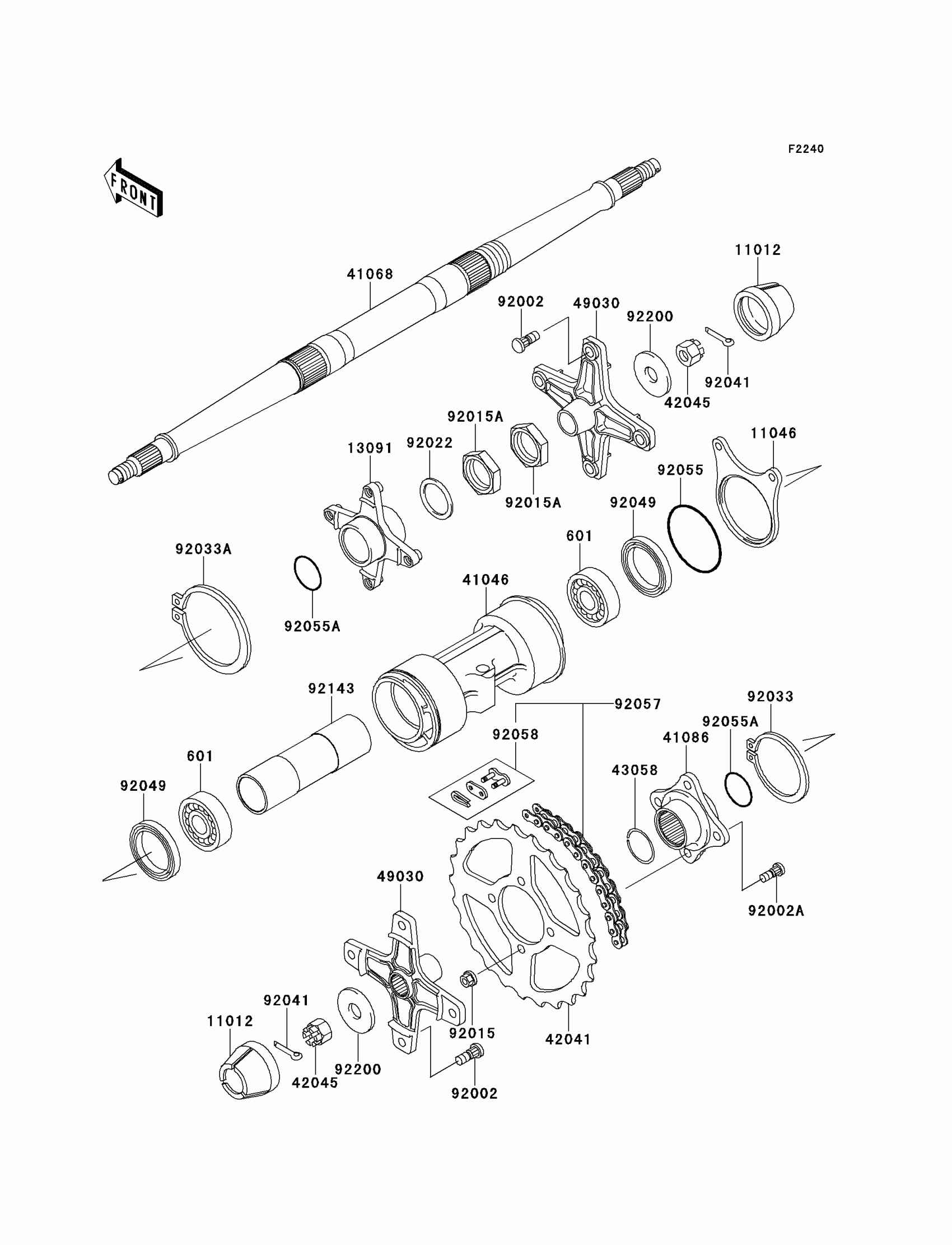

Kawasaki Mojave 250 Rear Hub Diagram

#

Description
Price

11012

CAP,WHEEL

11012-1519

Unavailable

11046

BRACKET,CALIPER

11046-1062

$59.02

13091

HOLDER,DISC PLATE

13091-1449

$124.79

41046

HOUSING-BEARING

41046-1086

Unavailable

41068

AXLE,RR

41068-1235

$765.04

41086

FLANGE,REAR SPROCKET

41086-1070

$119.54

42041

SPROCKET-HUB,43T

42041-1243

Unavailable

42045

NUT,CASTLE,18MM

42045-018

$7.31

43058

RING,SNAP

43058-1060

$5.10

49030

HUB,RR

49030-1078

$159.69

92002

BOLT,10X30

92002-1388

Unavailable

92002A

BOLT,10MM

92002-1459

$4.23

92015

NUT,FLANGED,10MM

92015-1335

$2.15

92015A

NUT,LOCK,37MM

92015-1545

$18.44

92022

WASHER,37.5X48X2.3

92022-1746

Unavailable

92033

RING-SNAP,95MM

92033-1216

$40.73

92033A

RING-SNAP,75MM

92033-1217

$23.97

92041

COTTER,4.0X35

92041-1053

$3.12

92049

SEAL-OIL

92049-1237

$15.24

92055

RING-O,76MM

92055-1213

$9.27

92055A

RING-O,38MM

92055-1317

Unavailable

92057

CHAIN,DRIVE,EK520SR-O2X90L

92057-1254

$251.31

92058

JOINT-CHAIN,DRIVE,EK520SR-O2

92058-1060

$9.90

92143

COLLAR,L=159

92143-1036

Unavailable

92200

WASHER,18.5X52X4.5

92200-1139

$6.44

601

BEARING-BALL,#6008UU

601A6008UU

$62.59
