Description

Price

11045

BRACKET

11045-1105

$73.37

21083

ARM

21083-1070

$67.85

41050

CAM-BRAKE,RR CALIPER

41050-1072

$136.02

41080

DISC,RR

41080-1200

$305.56

43020A

PISTON-COMP-BRAKE

43020-1102

$54.74

43041A

CALIPER-ASSY,RR

43041-1496

$509.44

43045

SHAFT-CALIPER

43045-1010

$19.49

43045A

SHAFT-CALIPER

43045-1051

$18.51

43049

PACKING,PISTON SEAL

43049-1023

$13.58

43049A

PACKING,PISTON SEAL

43049-1024

$8.31

43049B

PACKING

43049-1025

$4.80

43049C

PACKING

43049-1053

$3.58

43056

BREATHER

43056-1052

$11.32

43057

CAP-BREATHER

43057-1001

$3.89

43082

PAD-ASSY-BRAKE

43082-1066

$46.38

49006

BOOT,CALIPER

49006-1088

$9.20

49006A

BOOT,CALIPER

49006-1089

$5.88

49006B

BOOT,CALIPER

49006-1193

$8.22

49006C

BOOT,CALIPER

49006-1232

$11.83

92001

BOLT,PAD HOLDER

92001-1723

$7.64

92002

BOLT,SOCKET,8X20

92002-1736

$5.21

92002A

BOLT,FLANGED,8X13

92002-1737

$4.92

92002B

BOLT

92002-1772

$9.34

92022

WASHER,LOCK

92022-1372

$4.61

92022A

WASHER,WAVE

92022-1373

$3.53

92025

SHIM,PAD

92025-1344

$11.98

92055

RING-O

92055-1351

$5.66

92081

SPRING,PAD

92081-1502

$8.31

92143

COLLAR

92143-1202

$15.95

92144

SPRING

92144-1037

$11.83

92144A

SPRING,ADJUST

92144-1258

$14.05

92150

BOLT,ADJUST

92150-1080

$49.03

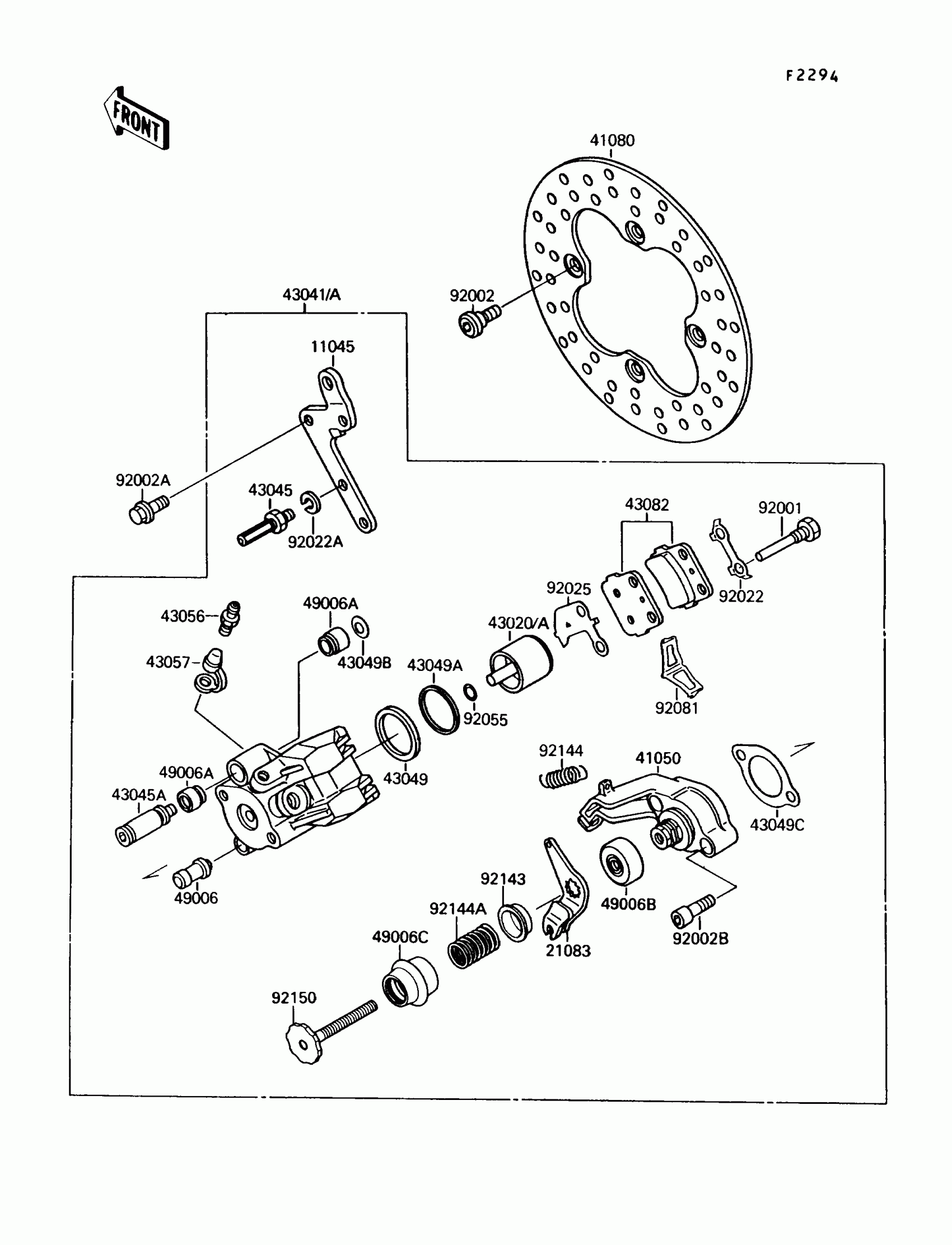

Kawasaki Mojave 250 Rear Caliper Diagram
