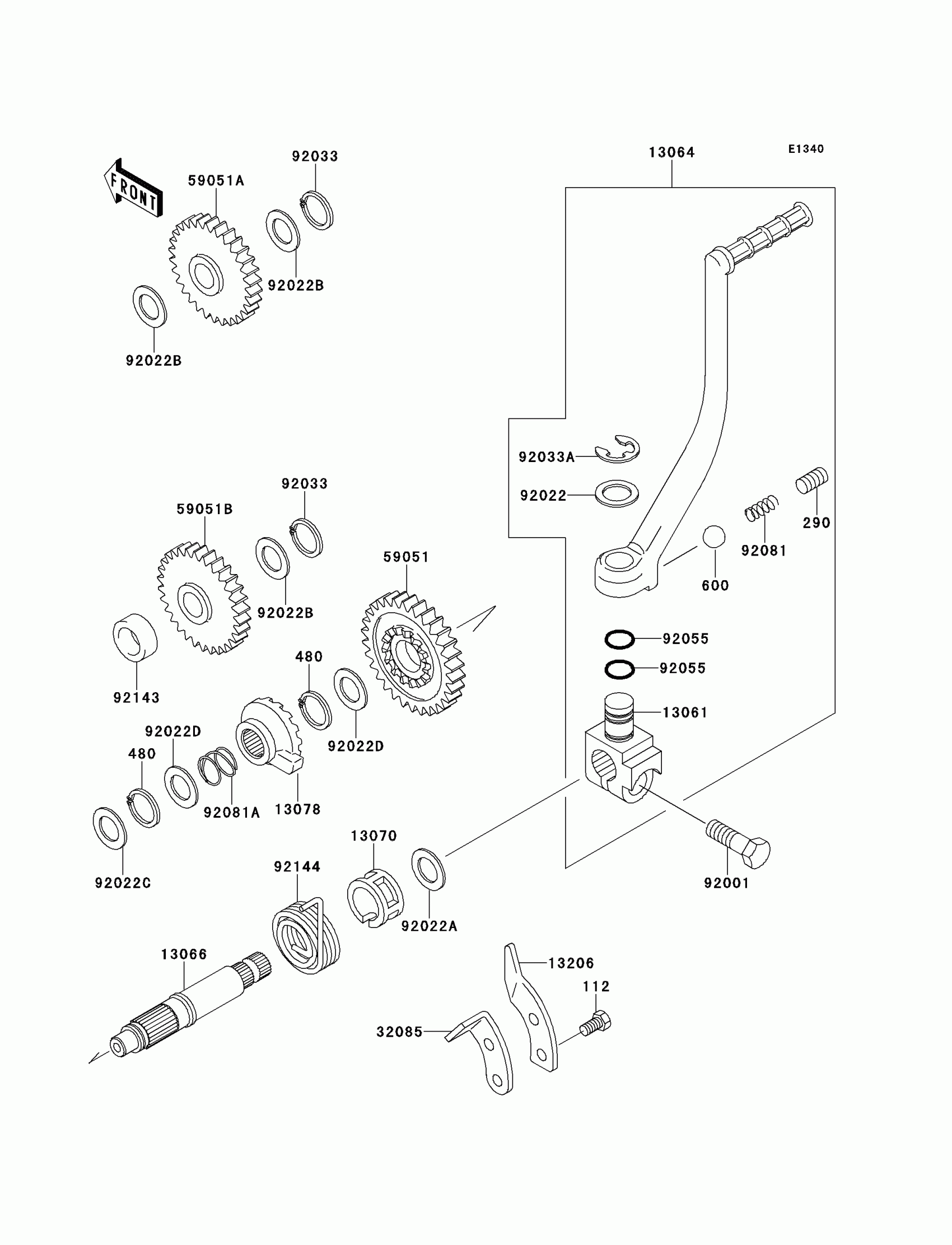

Kawasaki Mojave 250 Kickstarter Mechanism(-SF250A026491) Diagram

Description

Price

112

BOLT-UPSET

112G0618

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

600

BALL-STEEL,1/4

600A0800

$0.67

13061

BOSS,KICK PEDAL

13061-1189

$83.66

13064

LEVER-ASSY-KICK

13064-1127

Unavailable

13066

SHAFT-KICK

13066-1062

$118.13

13070

GUIDE,KICK SPRING

13070-011

$9.49

13078

RATCHET

13078-1053

$79.27

13206

GUIDE-KICK

13206-1056

$9.41

32085

STOPPER

32085-1237

$5.78

59051

GEAR-SPUR,KICKSTARTER,30T

59051-1328

Unavailable

59051A

GEAR-SPUR,REVERSE SHAFT,21T

59051-1329

$80.70

59051B

GEAR-SPUR,KICKSTARTER IDLE,25

59051-1330

Unavailable

92001

BOLT,8X28

92001-1042

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,18.5X23X1.2

92022-118

$4.17

92022B

WASHER,17.3X22X0.5

92022-1799

$3.12

92022C

WASHER,12.3X20X0.5

92022-269

$1.14

92022D

WASHER,16.8X22X0.5

92022-315

$4.93

92033

RING-SNAP

92033-032

$3.94

92033A

RING-SNAP,10MM

92033-1166

$3.10

92055

RING-O,10X1.5

92055-061

$3.80

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92143

COLLAR,17.1X24X9

92143-1330

Unavailable

92144

SPRING,KICKSTARTER

92144-1001

Unavailable
