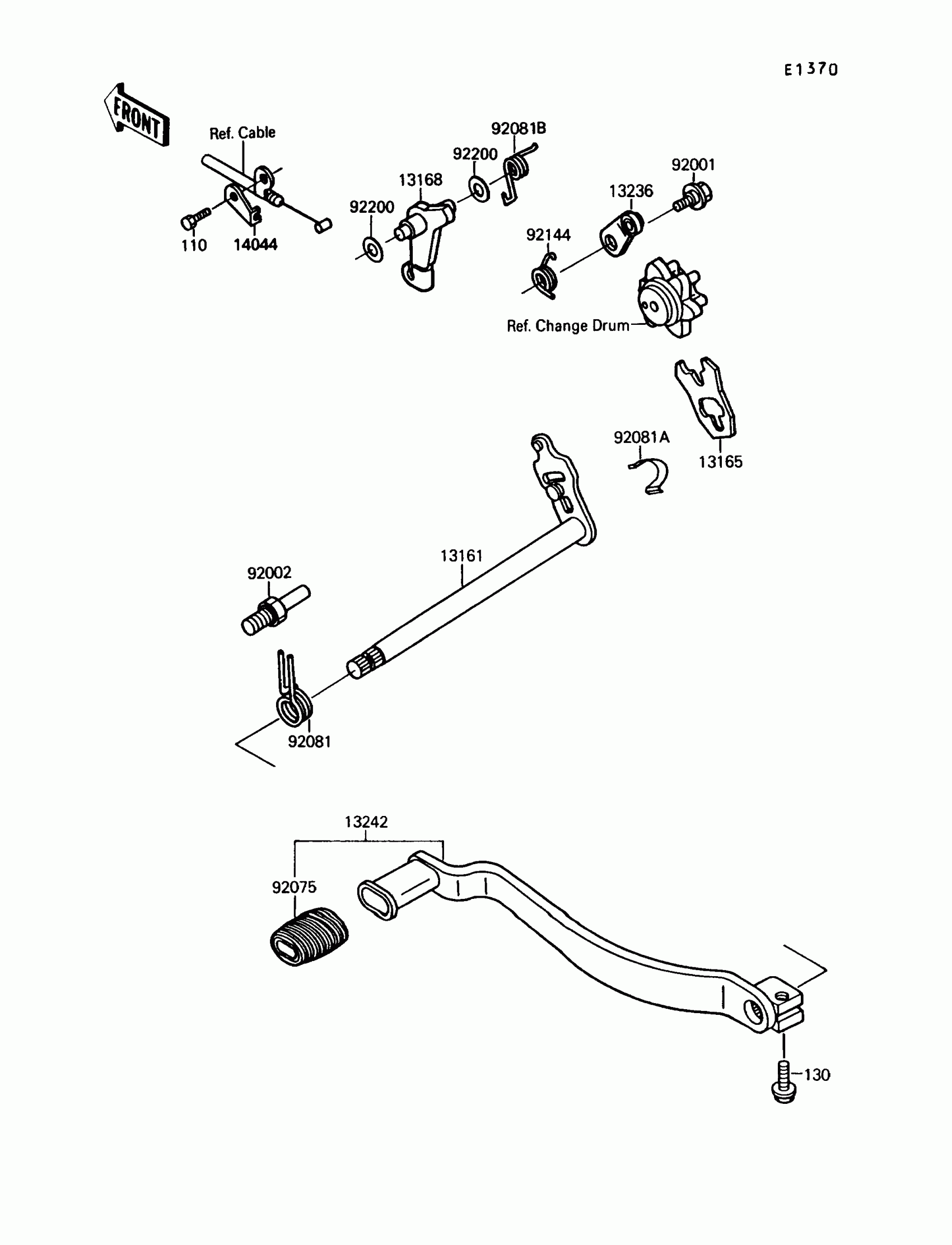

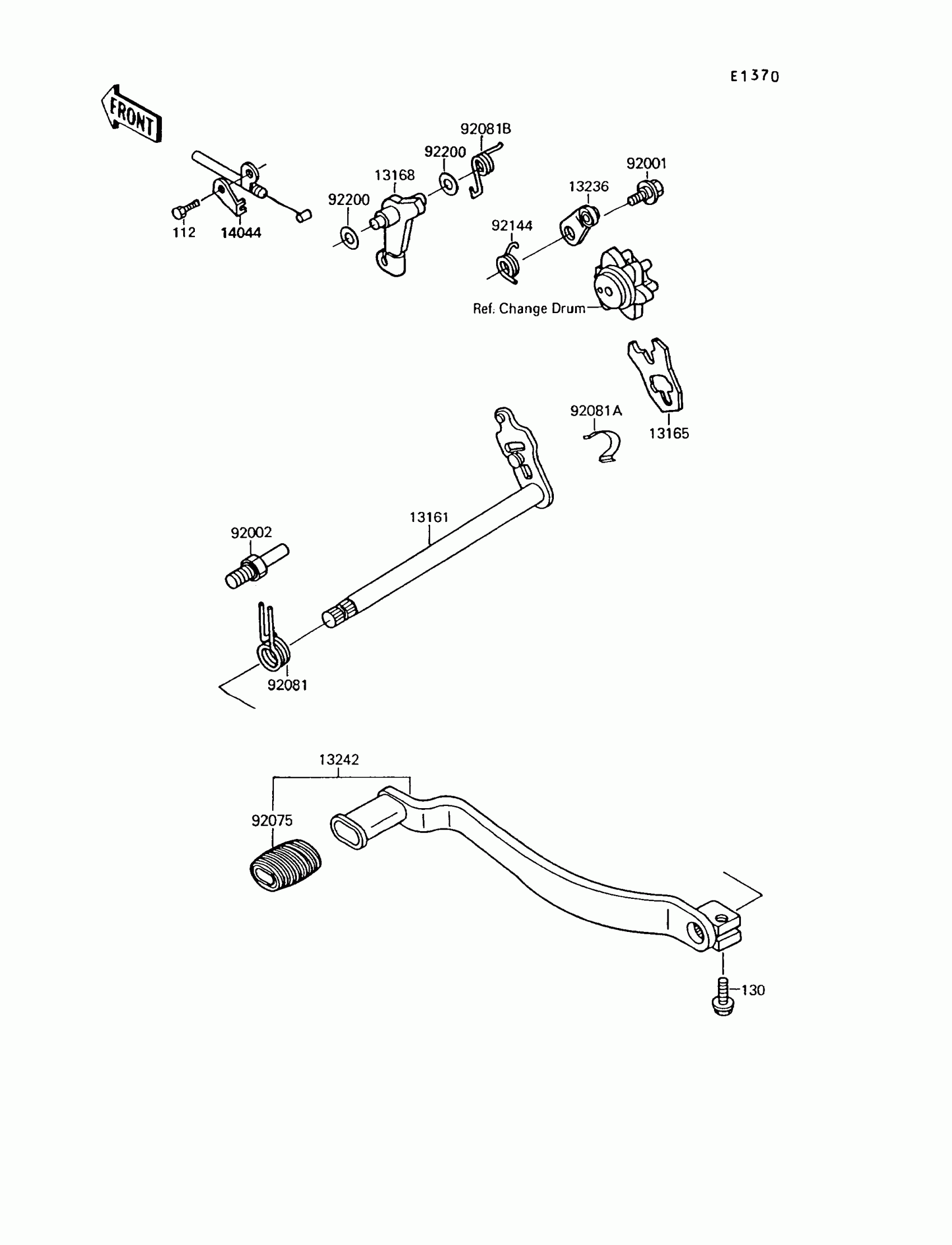

Kawasaki Mojave 250 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1133

Unavailable

13165

PAWL,CHANGE LEVER

13165-1034

$9.56

13168

LEVER,REVERSE

13168-1344

$46.38

13236

LEVER-COMP,CHANGE DRUM

13236-1117

$7.73

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1223

Unavailable

14044

HOLDER-CABLE

14044-1072

Unavailable

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92002

BOLT,RETURN SPRING

92002-1355

$9.94

92075

DAMPER

92075-1585

$9.15

92081

SPRING,CHANGE PEDAL RETURN

92081-1750

$10.93

92081A

SPRING,CHANGE LEVER

92081-1829

$6.98

92081B

SPRING,REVERSE LOCK

92081-1998

$5.98

92144

SPRING,POSITION LEVER

92144-1077

$7.76

92200

WASHER,8X13X0.5

92200-1039

$3.66

110

BOLT HEX HEAD 5X12

110B0512

Unavailable

130

BOLT-FLANGED,6X20

130S0620

Unavailable
