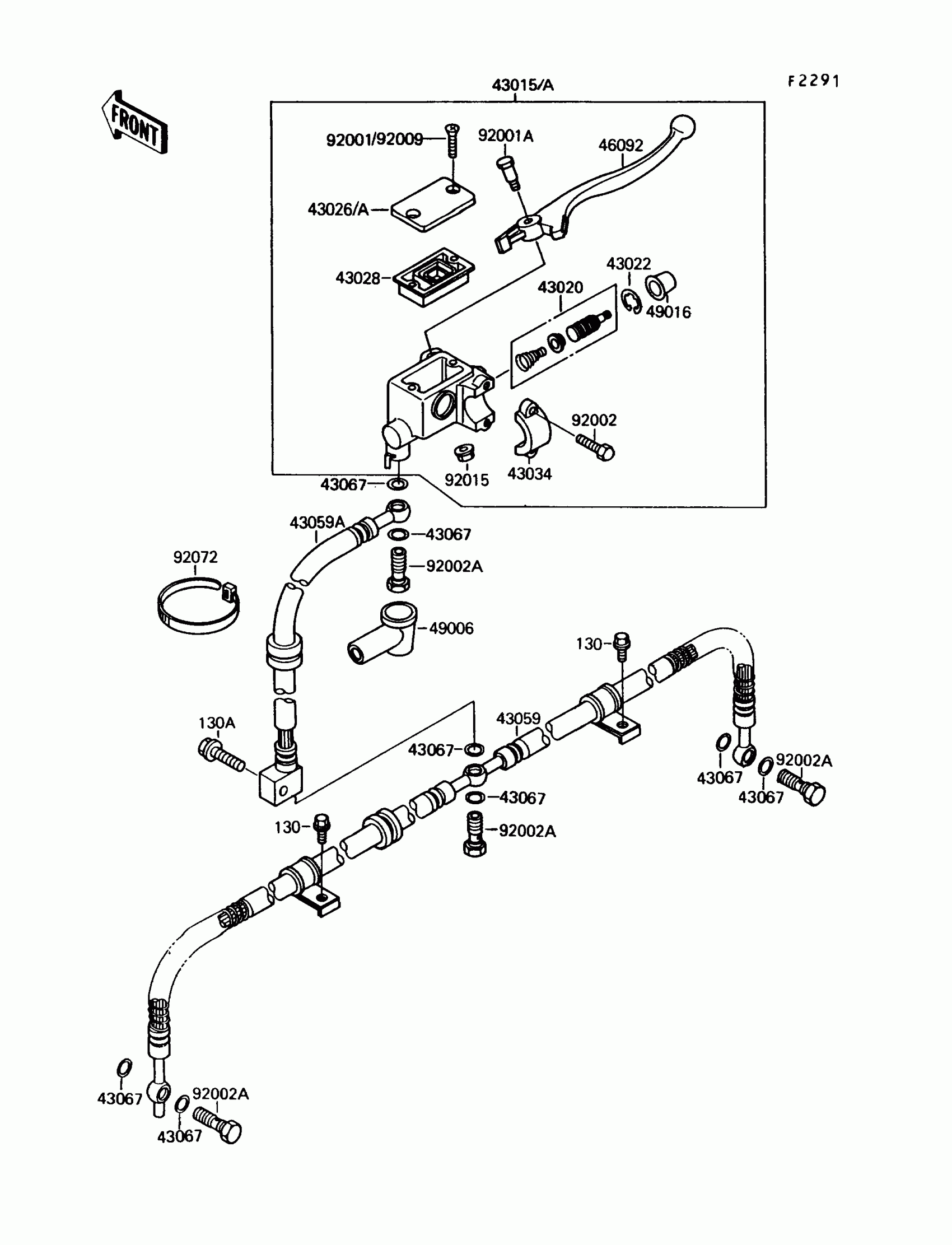

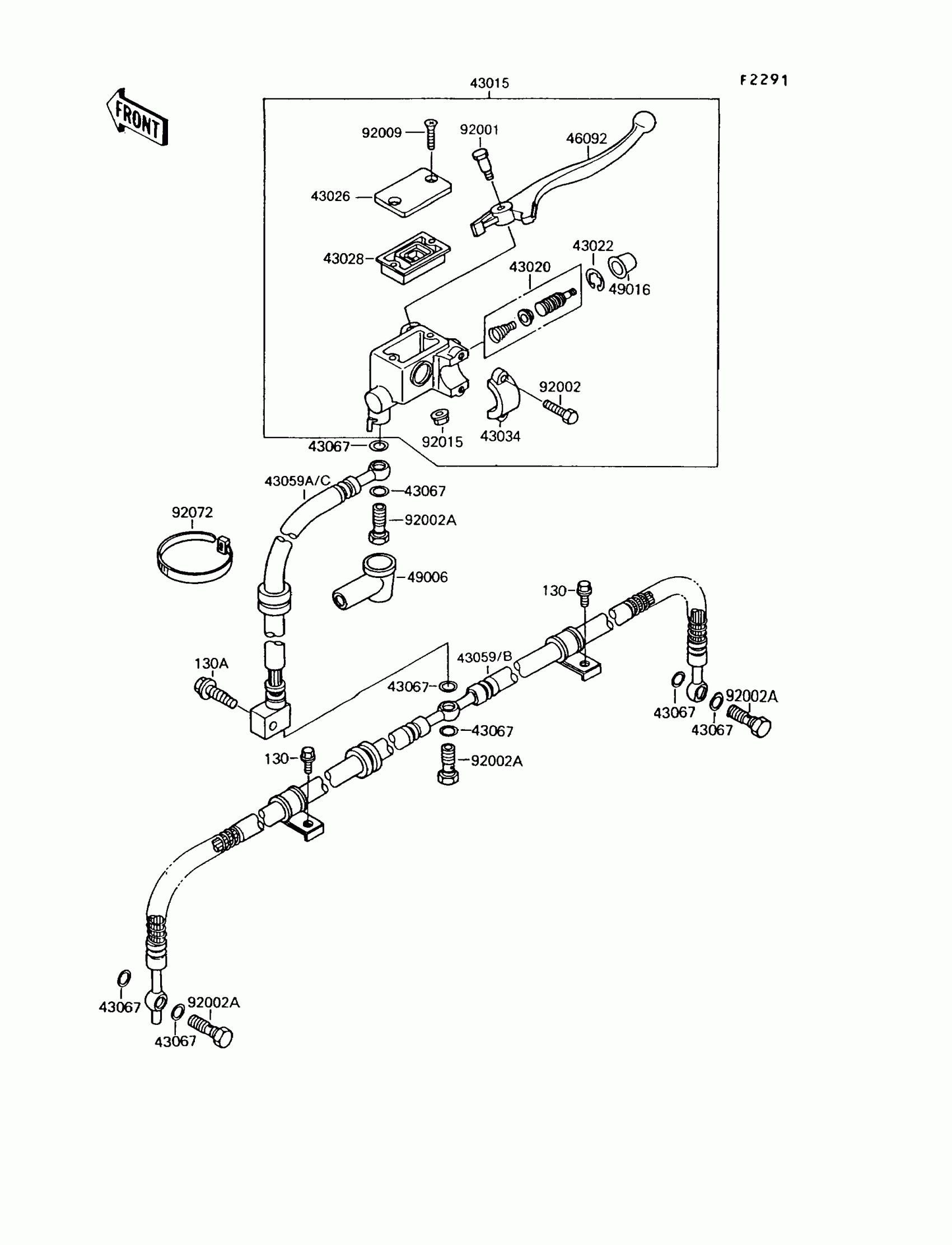

Kawasaki Mojave 250 Front Master Cylinder Diagram

Description

Price

43015A

CYLINDER-ASSY-MASTER,FR

43015-1489

$494.11

43020

PISTON-COMP-BRAKE,FR

43020-1056

$59.90

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026A

CAP-BRAKE

43026-1074

$23.33

43028

DIAPHRAGM

43028-1061

$12.79

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$15.29

43059

HOSE-BRAKE,FR

43059-1344

Unavailable

43059A

HOSE-BRAKE,FR

43059-1345

$87.08

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092

LEVER-GRIP,FRONT BRAKE

46092-1136

$25.58

49006

BOOT,DUST

49006-1040

$9.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92001A

BOLT,FRONT BRAKE LEVER

92001-1728

$11.26

92002

BOLT

92002-1860

$4.37

92002A

BOLT,OIL,L=23

92002-1888

$4.35

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92072

BAND,L=149

92072-031

$3.97

130

BOLT-FLANGED,6X10

130B0610

Unavailable

130A

BOLT-FLANGED,8X25

130G0825

Unavailable
