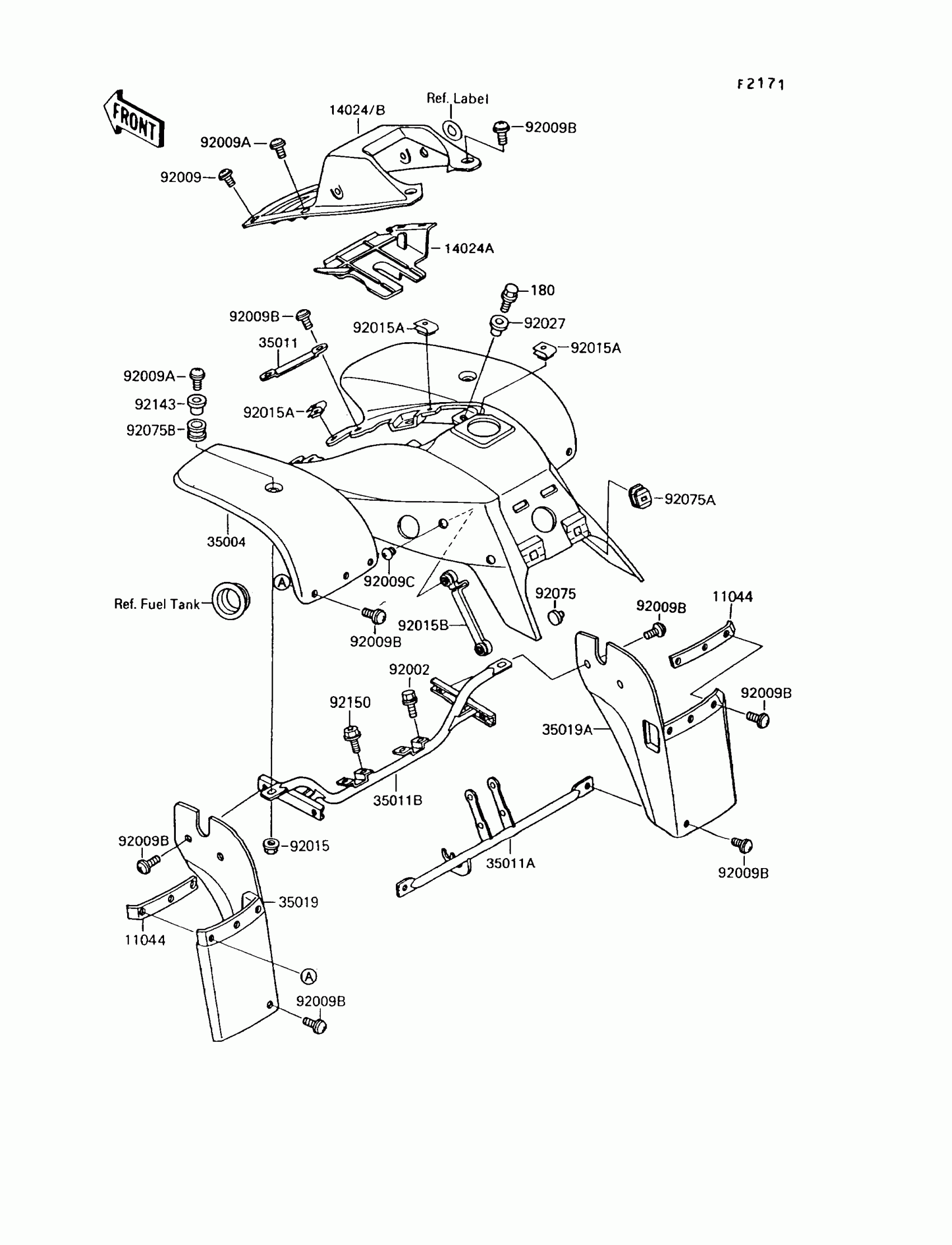

Kawasaki Mojave 250 Front Fender(s) Diagram

#

Description
Price

11044

BRACKET,FLAP

11044-1934

Unavailable

14024

COVER,FRONT FENDER,J.S.VIOLET

14024-1268-RE

Unavailable

14024A

COVER,FRONT FENDER,INNER

14024-1297

Unavailable

14024B

COVER,FRONT FENDER,J.S.VIOLET

14024-1442-RE

Unavailable

35004

FENDER-FRONT,P.WHITE

35004-1192-6F

Unavailable

35011

STAY,FRONT FENDER

35011-1324

Unavailable

35011A

STAY,FLAP,L.GREEN

35011-1637-CC

$35.42

35011B

STAY,FRONT FENDER,L.GREEN

35011-1642-CC

$44.73

35019

FLAP,LH

35019-1172

Unavailable

35019A

FLAP,RH

35019-1173

$24.51

92002

BOLT

92002-1626

Unavailable

92009

SCREW,6X18,BLACK

92009-1181

$2.29

92009A

SCREW,6X22,BLACK

92009-1256

$2.27

92009B

SCREW,6X14

92009-1288

$3.12

92009C

SCREW,16MM

92009-1508

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015A

NUT,CLAMP,6MM

92015-1678

$4.37

92015B

NUT

92015-1701

$11.92

92027

COLLAR,L=5.6

92027-1933

$4.58

92027

COLLAR,L=5.6

92027-1933

$4.58

92075

DAMPER,DUAL SEAT

92075-023

$3.90

92075A

DAMPER

92075-1834

$8.92

92075B

DAMPER,CASE

92075-222

$5.84

92143

COLLAR,L=9.6

92143-1016

$4.93

92150

BOLT,FLANGED,6X16

92150-1358

$3.92

180

BOLT-UPSET-WS,6X35

180D0635

Unavailable
