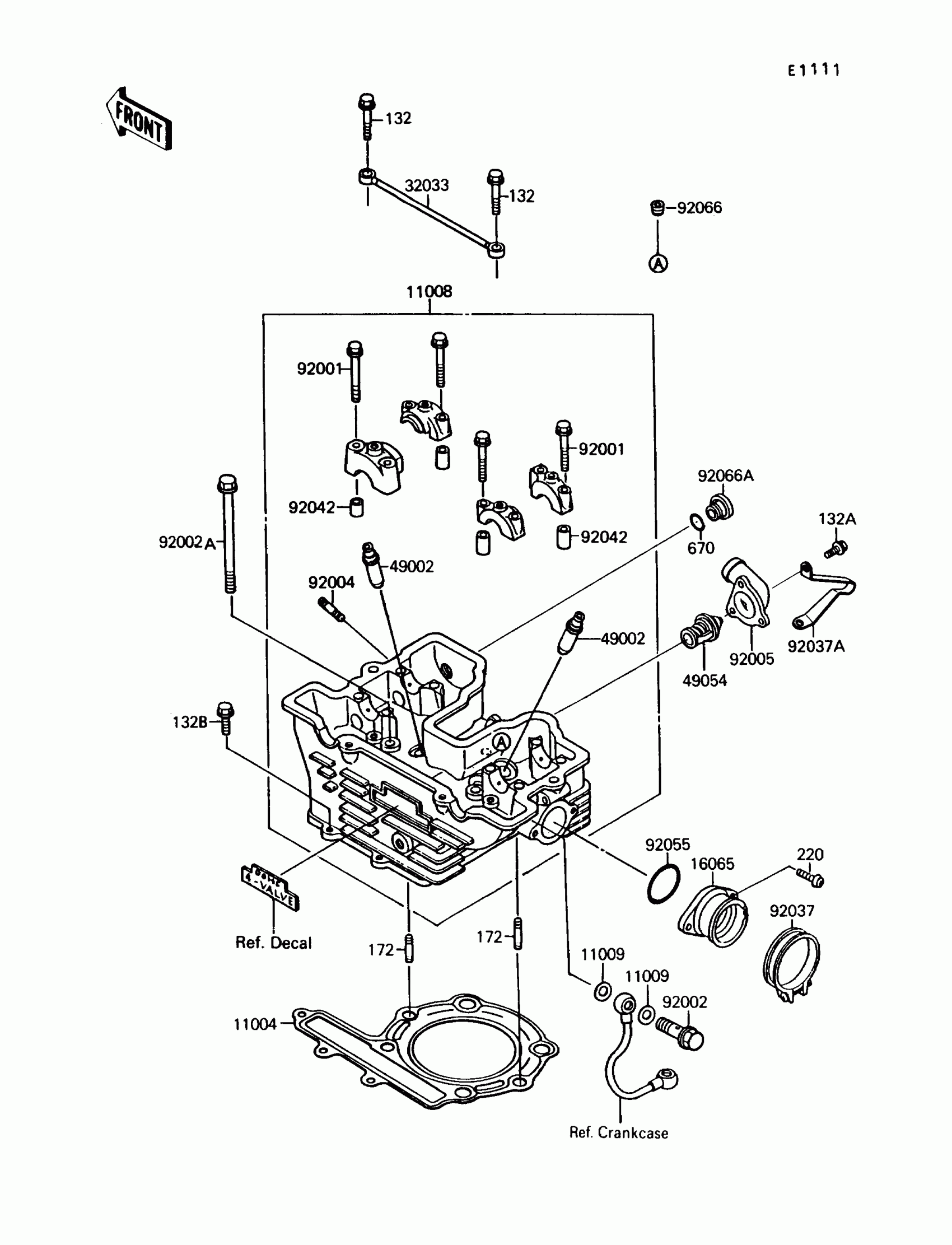

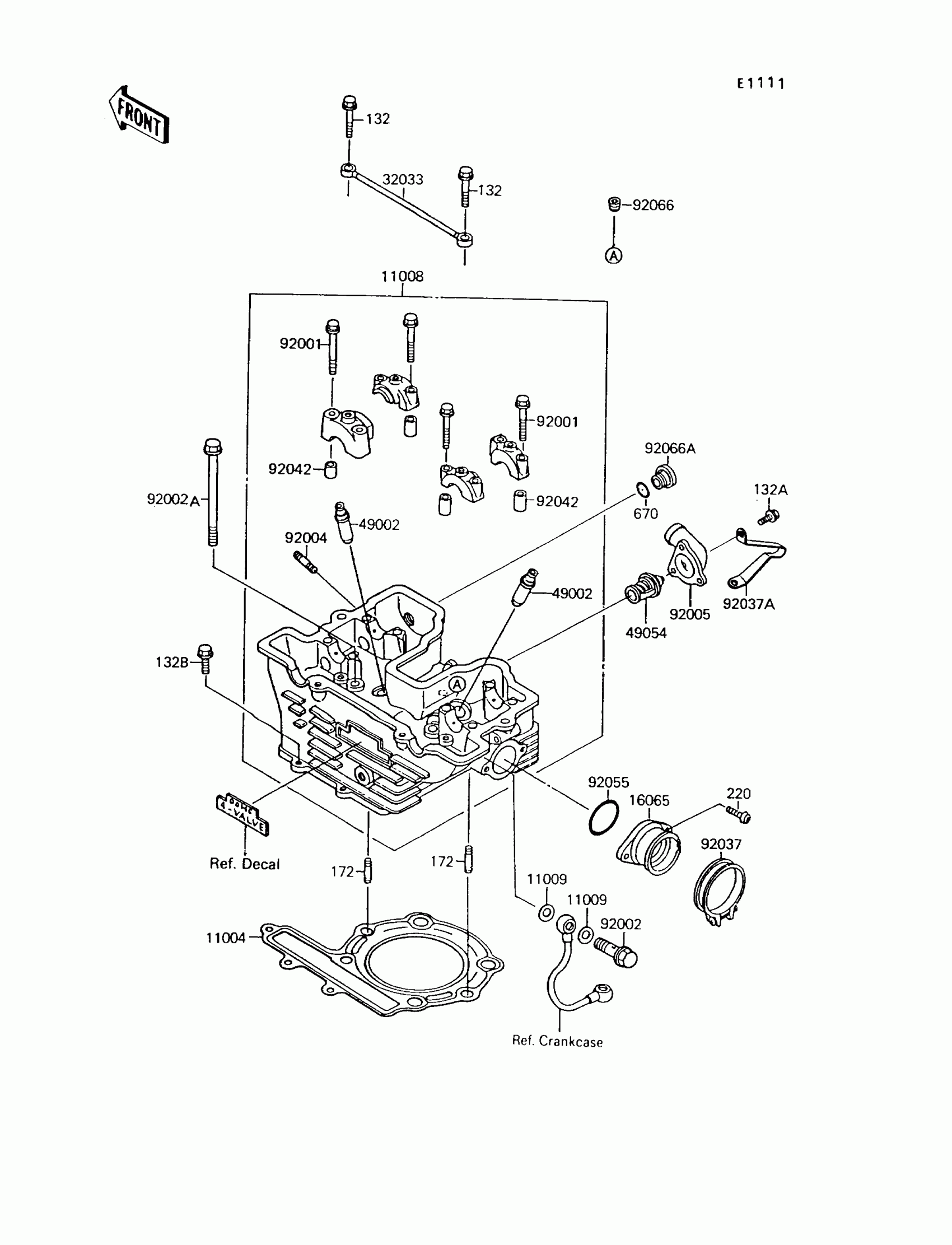

Kawasaki Mojave 250 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1121

$41.33

11008

HEAD-COMP-CYLINDER

11008-1189

$1,065.98

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

16065

HOLDER-CARBURETOR

16065-1143

Unavailable

32033

PIPE,OIL

32033-1402

$72.14

49002

GUIDE-VALVE

49002-1052

$38.19

49054

THERMOSTAT

49054-1003

$61.04

92001

BOLT,6X46

92001-1872

$4.31

92002

BOLT,BANJO,10X25

92002-1170

$9.51

92002A

BOLT,L=162

92002-1328

$22.14

92004

STUD,8X25

92004-1008

$2.56

92005

FITTING

92005-1121

$36.12

92037

CLAMP,ID=53,BLACK

92037-1304

$10.28

92037A

CLAMP,CLUTCH CABLE

92037-1984

$12.46

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92055

RING-O

92055-1255

$18.57

92066

PLUG,1/8X7

92066-1173

$6.89

92066A

PLUG,ROCKER SHAFT

92066-1188

$16.93

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

172

BOLT-STUD,8X22

172G0822

Unavailable

220

SCREW-PAN-CROS,6X16,BLACK

220C0616

Unavailable

670

O RING,20MM

670B2020

$1.49
