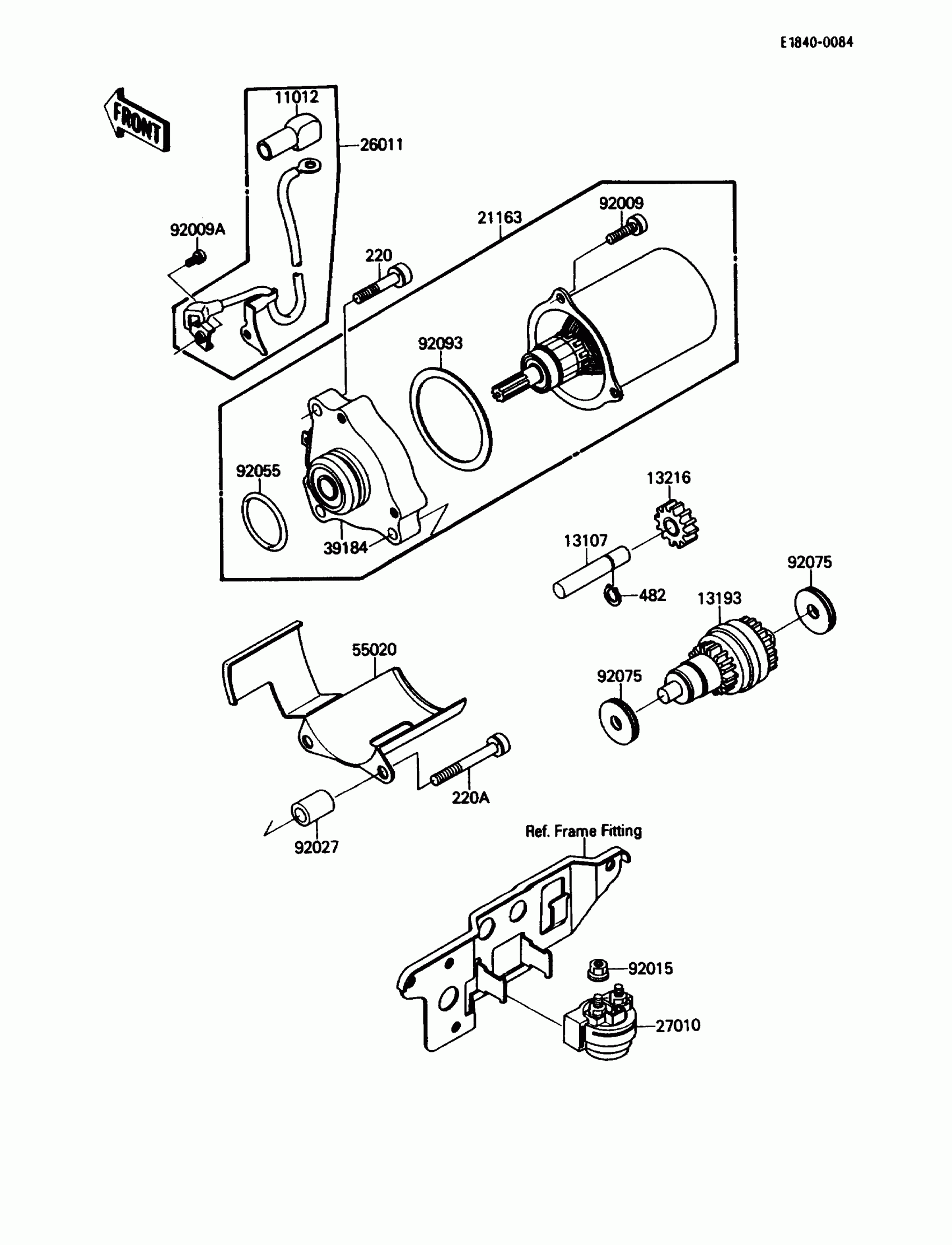

Kawasaki Mojave 110E Starter Motor Diagram

Description

Price

11012

CAP,TERMINAL

11012-1354

$9.85

13107

SHAFT,STARTER GEAR

13107-1027

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1010

Unavailable

13216

GEAR-COMP,26T

13216-1028

Unavailable

21163

STARTER-ELECTRIC

21163-1101

$551.21

26011

WIRE-LEAD,STARTER MOTOR

26011-1385

$24.86

27010

SWITCH,STARTER

27010-1075

$40.41

39184

BRACKET-ASSY

39184-1011

$87.85

55020

GUARD

55020-1255

$10.42

92009

SCREW,5X16

92009-1466

$2.00

92009A

SCREW,4X6

92009-1467

$1.58

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR

92027-1461

$2.20

92055

RING-O

92055-1276

$7.54

92075

DAMPER

92075-1415

$15.07

92093

SEAL,STARTER MOTOR

92093-1079

$4.39

220

SCREW-PAN-CROS

220X0625

Unavailable

220A

SCREW-PAN-CROS

220X0640

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65
