1988 Kawasaki Mojave 110E Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1988 Kawasaki Mojave 110E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

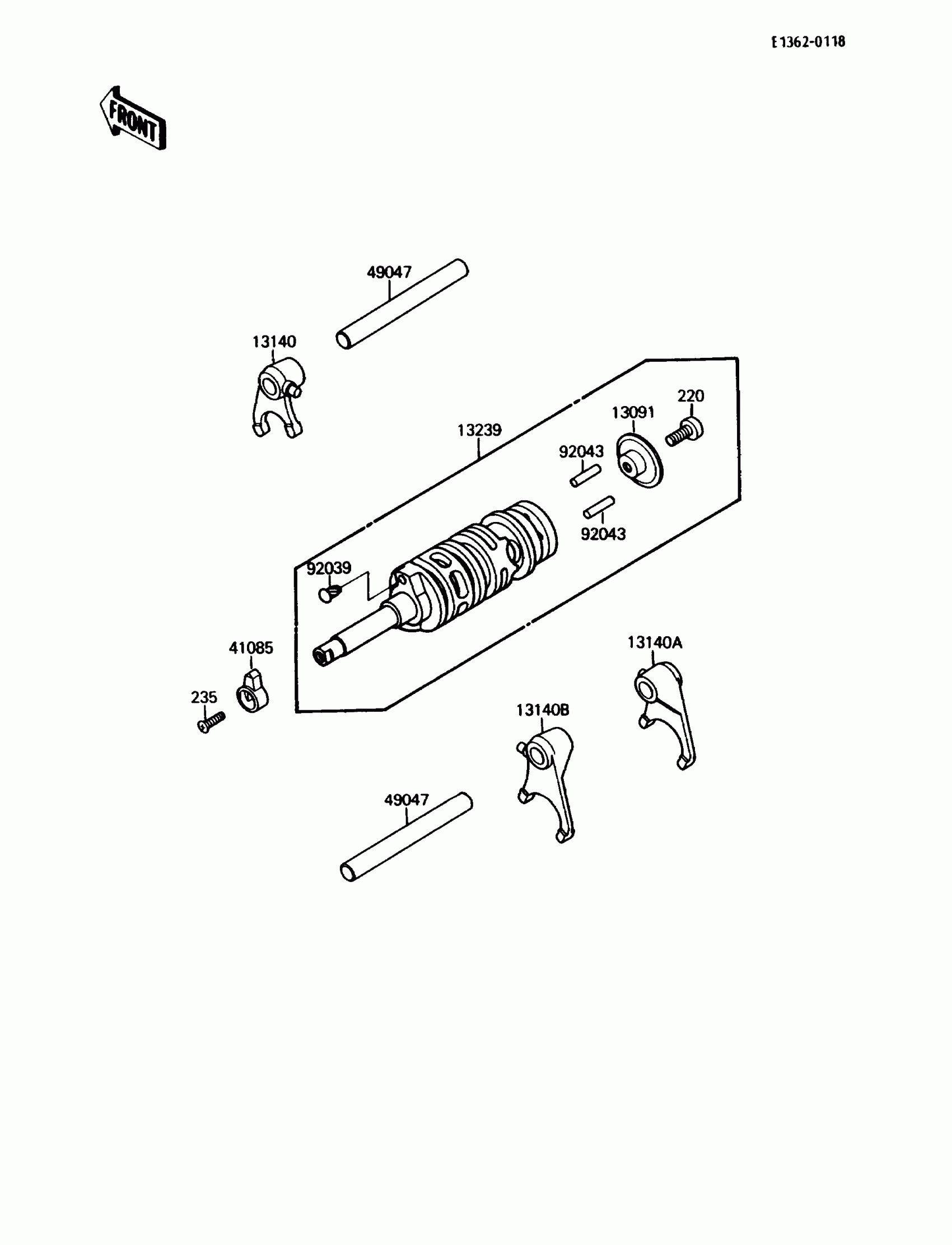

1988 Kawasaki Mojave 110E Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER

13091-1086

1
Out of stock

13140

FORK-SHIFT

13140-1108

1
Out of stock

13140A

FORK-SHIFT

13140-1119

1
Out of stock

13140B

FORK-SHIFT

13140-1130

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1136

1
Out of stock

41085

INDICATOR,CHANGE DRUM

41085-1004

1
Out of stock

49047

ROD-SHIFT,10X90

49047-1009

1
Out of stock

92039

RIVET

92099-001

1
Out of stock

92043

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0512

1
Out of stock
