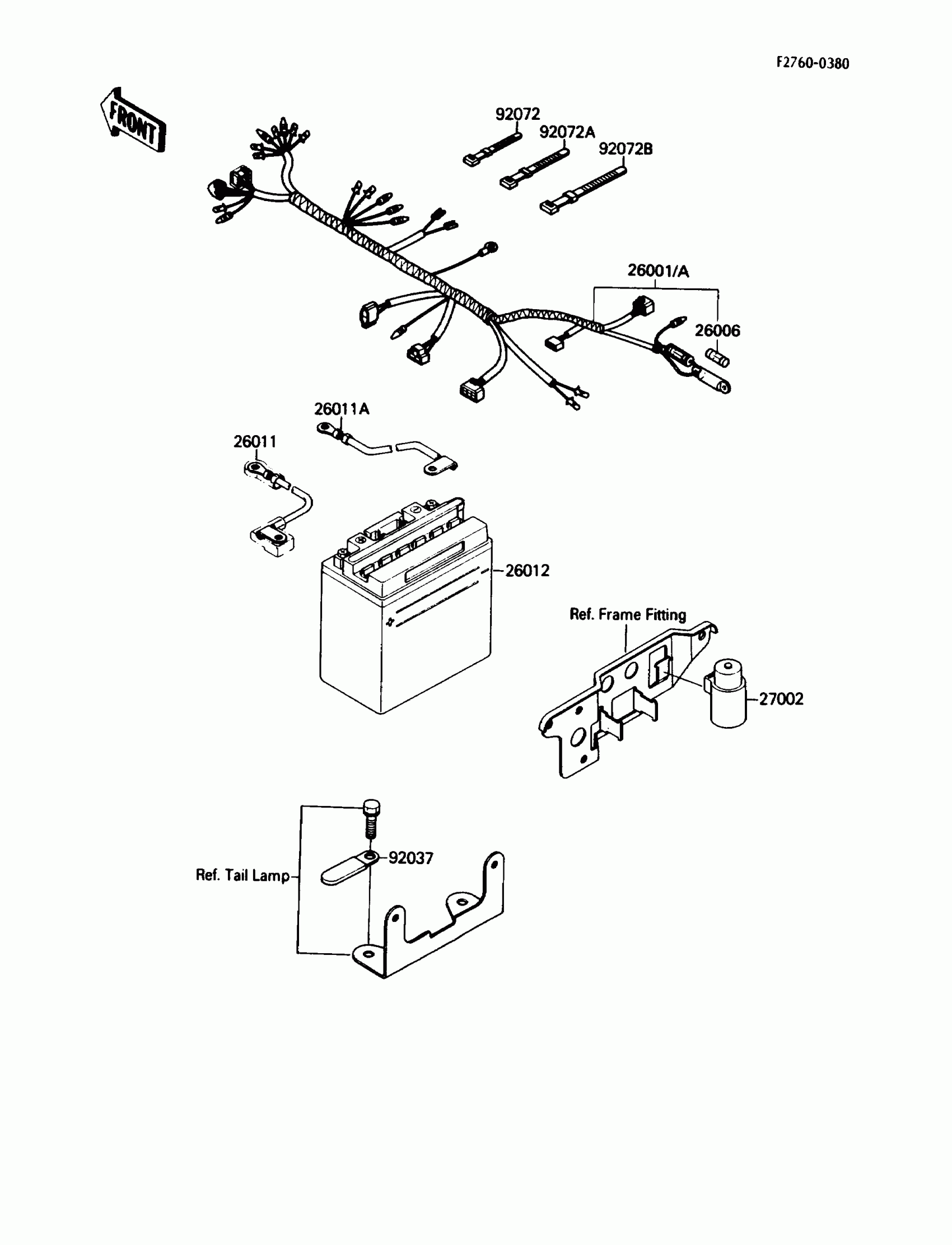

Kawasaki Mojave 110E Chassis Electrical Equipment Diagram

#

Description
Price

26001A

HARNESS,MAIN

26001-1877

$169.99

26006

FUSE,20A,L=25

26006-005

$3.86

26011

WIRE-LEAD,BATTERY(+)

26011-1362

$38.23

26011A

WIRE-LEAD,BATTERY(-)

26011-1363

$19.88

26012

FB BAT FB9L-A2K (K2)

26012-1127

$71.51

27002

RELAY-ASSY

27002-1051

$48.39

92037

CLAMP,L=45

92037-1539

$4.42

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=186

92072-056

$3.81
