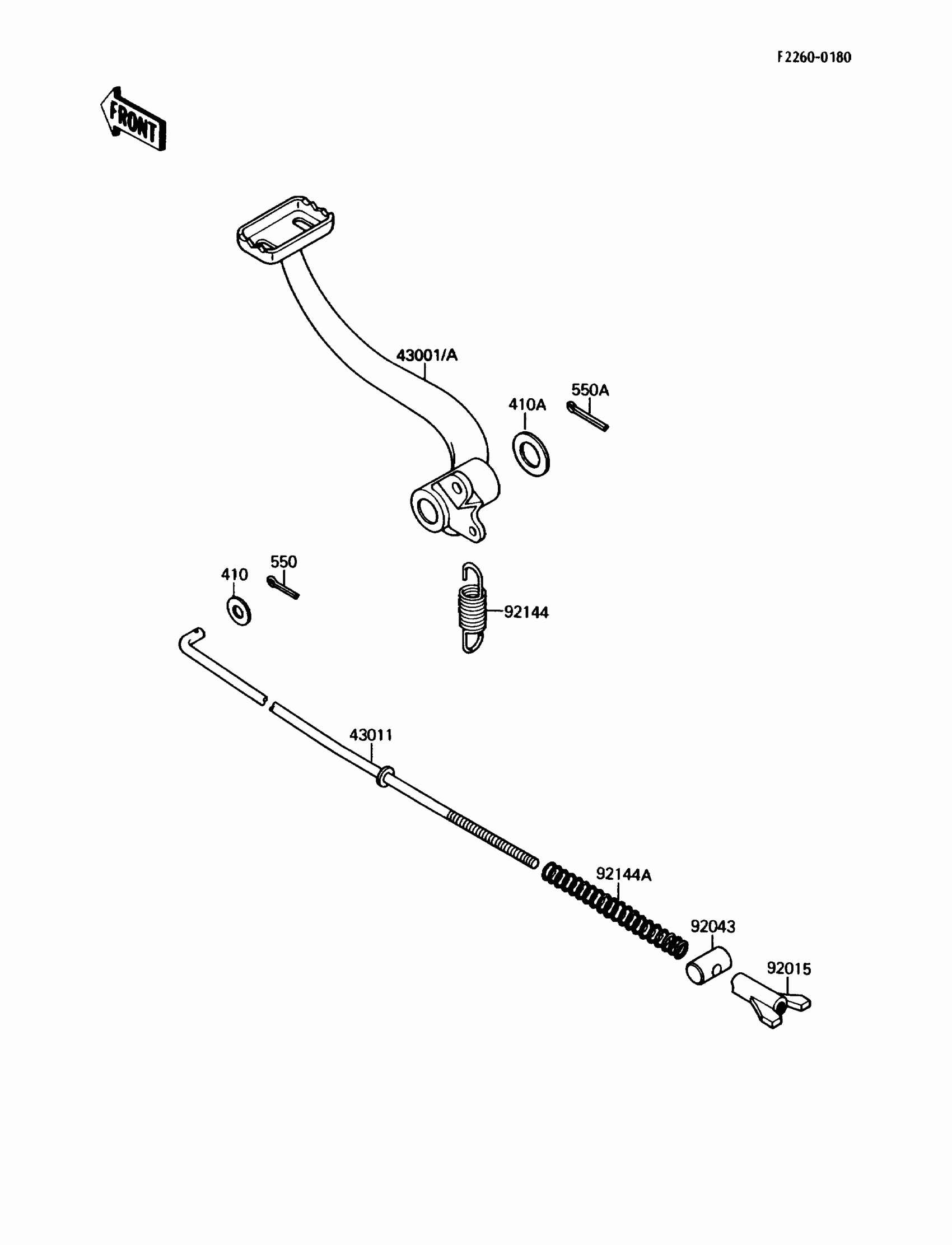

Kawasaki Mojave 110E Brake Pedal Diagram

#

Description

Price

43001A

LEVER-BRAKE,PEDAL

43001-1248

$25.25

43011

ROD-BRAKE

43011-1132

Unavailable

92015

NUT,WING,6MM

92015-1497

Unavailable

92043

PIN,12X20

92043-1280

Unavailable

92144

SPRING,BRAKE PEDAL RETURN

92144-1053

$9.47

92144A

SPRING,BRAKE ROD

92144-1122

$3.54

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X25

550D2525

Unavailable
