1997 Yamaha Mountain MAX 800 (MM800A) Engine Bracket Diagram

← All diagrams

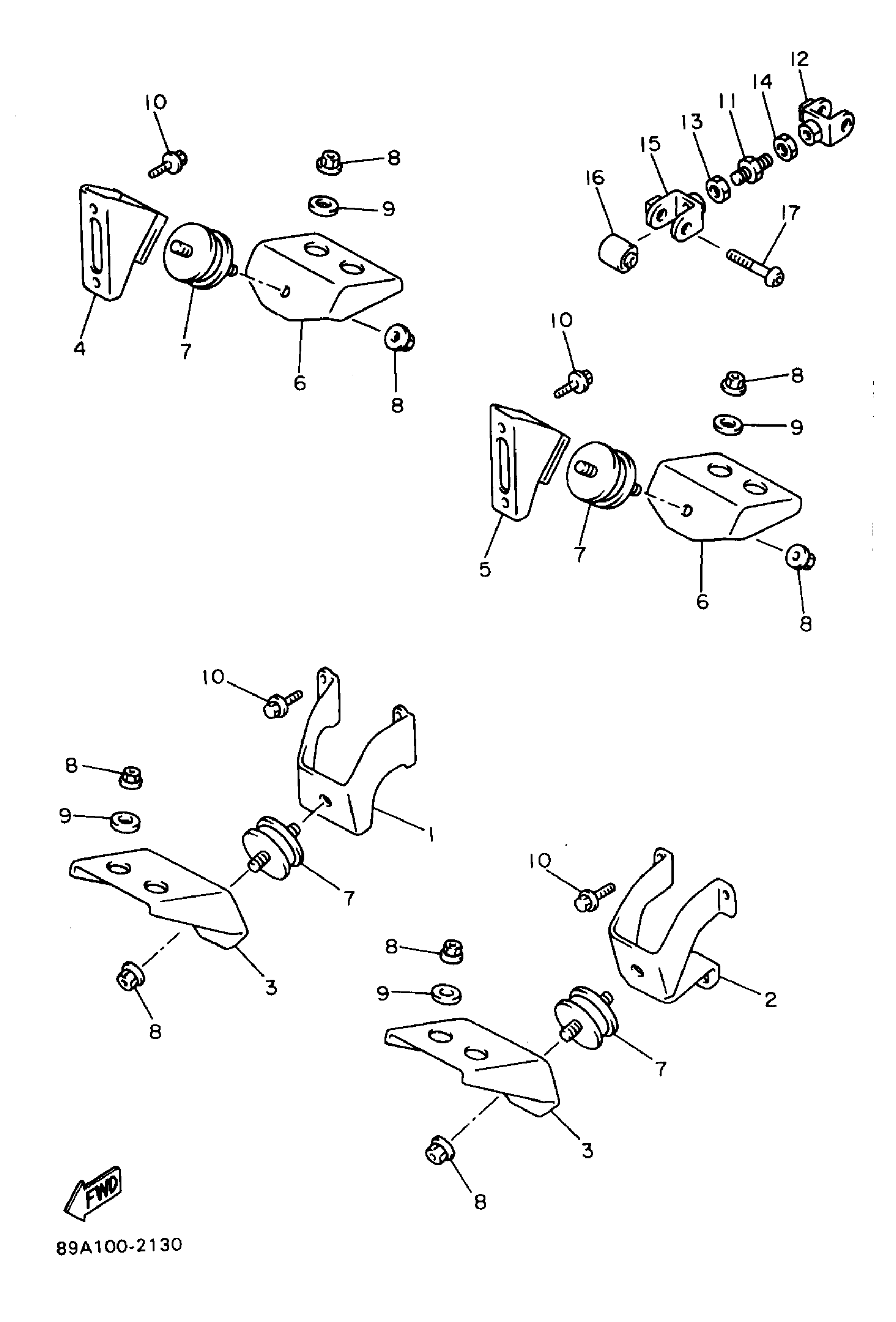

Find the part on the Engine Bracket diagram for your 1997 Yamaha Mountain MAX 800 (MM800A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Mountain MAX 800 (MM800A) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

89A-21415-00-00

1
Out of stock

2

BRACKET, FRONT UPPER 2

89A-21416-00-00

1
Out of stock

3

BRACKET, FRONT LOWER 1

89A-21417-00-00

1
Out of stock

4

BRACKET, REAR UPPER 1

89A-21425-00-00

1
Out of stock

5

BRACKET, REAR UPPER 2

89A-21426-00-00

1
Out of stock

6

BRACKET, REAR LOWER 1

89A-21427-00-00

1
Out of stock

7

DAMPER 2

8M6-21486-02-00

1
Out of stock

8

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

9

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

10

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

11

BOLT, ENGINE ADJUSTING

89A-21495-00-00

1
Out of stock

12

BRACKET 1

89A-2148U-00-00

1
Out of stock

13

BRACKET 2

89A-2148V-00-00

1
Out of stock

14

NUT(89A)

90170-12407-00

1

$8.57

In stock

15

NUT

90170-12406-00

1
Out of stock

16

DAMPER, RUBBER 1

89A-21485-00-00

1
Out of stock

17

BOLT, BUTTON HEAD

92017-10040-00

—

$5.69

In stock
