2001 Yamaha Mountain Max 700 (MM700F) Alternate Reverse Gear Kit Diagram

← All diagrams

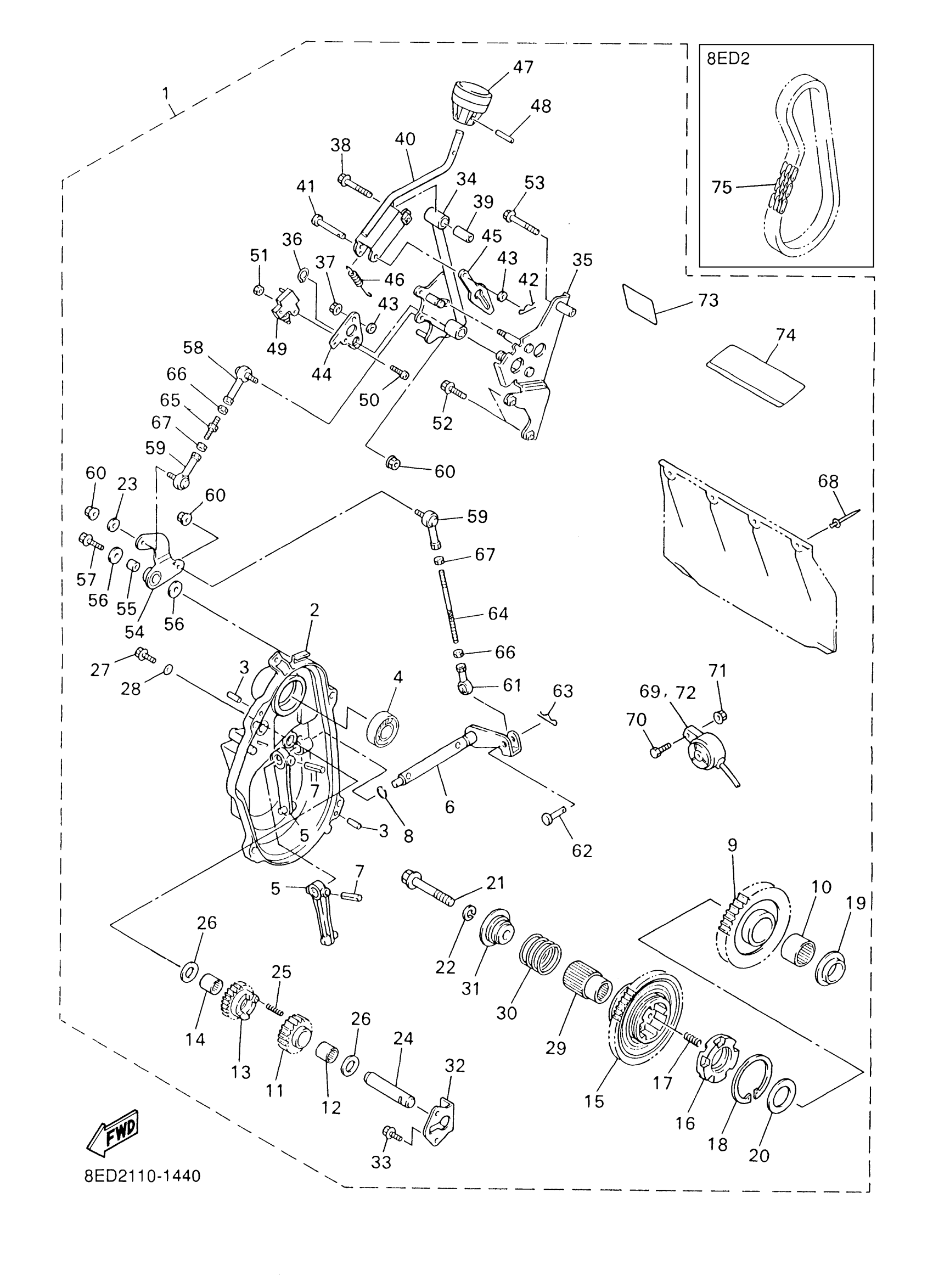

Find the part on the Alternate Reverse Gear Kit diagram for your 2001 Yamaha Mountain Max 700 (MM700F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha Mountain Max 700 (MM700F) Alternate Reverse Gear Kit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REVERSE GEAR KIT

8CR-47590-01-00

1
Out of stock

2

. CAP, HOUSING

8CW-47543-02-00

1
Out of stock

3

PIN, DOWEL (168)

93606-20044-00

1
Out of stock

4

BEARING(4ED)

93306-20468-00

1
Out of stock

5

FORK, SHIFT 1

8ER-18511-00-00

—
Out of stock

6

. SHAFT

8CW-18197-00-00

1
Out of stock

7

PIN, SPRING(8DA)

91609-50022-00

1
Out of stock

8

O-RING (328)

93210-12131-00

1
Out of stock

9

. SPROCKET, CHAIN DRIVEN (39T)

8CW-47587-90-00

1
Out of stock

10

BEARING, CYLINDRICAL(8DA)

93317-33179-00

1
Out of stock

11

SPROCKET, DRIVE

8DM-17692-00-00

1
Out of stock

12

BEARING, CYLINDRICAL(8DA)

93317-21578-00

1
Out of stock

13

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

1
Out of stock

14

BEARING, CYLINDRICAL(8DA)

93317-21578-00

1
Out of stock

15

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

1
Out of stock

16

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

—
Out of stock

17

SPRING, COMPRESSION(8DA)

90501-066J5-00

—
Out of stock

18

CIRCLIP(8DA)

93440-39175-00

—
Out of stock

19

COLLAR(8DA)

90387-2008G-00

—
Out of stock

20

WASHER, PLATE(8DA)

90201-320S3-00

—
Out of stock

21

BOLT, FLANGE(7LU)

95817-10070-00

—
Out of stock

22

WASHER(6TA)

92907-10100-00

—
Out of stock

23

WASHER, PLATE (8K2)

90201-06778-00

—
Out of stock

24

SHAFT, 1

8CW-1761A-00-00

—
Out of stock

25

SPRING COMPRESSION278185450000

90501-06022-00

—
Out of stock

26

WASHER PLATE (3L6)

90201-16245-00

—
Out of stock

27

BOLT, FLANGE

95817-06016-00

—
Out of stock

28

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

29

JOURNAL 1

8CW-47571-00-00

—
Out of stock

30

. SPRING, COMPRESSION

90501-326J6-00

1
Out of stock

31

COLLAR

8CW-47564-01-00

—
Out of stock

32

PLATE

8CW-47591-00-00

—
Out of stock

33

BOLT, FLANGE

95817-06016-00

—
Out of stock

34

. ARM, SHIFT

8CW-18112-01-00

1
Out of stock

35

GUIDE, PLATE STOPPER

8CW-18161-01-00

—
Out of stock

36

CIRCLIP(10Y)

99009-12400-00

—
Out of stock

37

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

38

BOLT, FLANGE

95817-06035-00

—
Out of stock

39

. COLLAR

90387-06605-00

1
Out of stock

40

LEVER, SHIFT 4

8CW-18152-01-00

—
Out of stock

41

PIN, CLEVIS (2F9)

91701-06035-00

—
Out of stock

42

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

43

WASHER(6TA)

92907-06200-00

—
Out of stock

44

PLATE, SHIFT ARM

8CW-1811A-00-00

—
Out of stock

45

. GUIDE, SHIFT RETURN SPRING

8CW-18153-00-00

1
Out of stock

46

SPRING, TENSION (36X)

90506-14343-00

—
Out of stock

47

KNOB, SHIFT LEVER

8CL-18174-00-00

—
Out of stock

48

PIN,SPRING (648)

91690-40022-00

—
Out of stock

49

SWITCH

J51-82817-00-00

—
Out of stock

50

. SCREW, BIND

98907-04016-00

1
Out of stock

51

NUT, U (7LY)

95617-04100-00

—
Out of stock

52

BOLT, FLANGE

95817-06025-00

—
Out of stock

53

BOLT, FLANGE

95817-06040-00

—
Out of stock

54

LEVER

8CW-18198-00-00

—
Out of stock

55

COLLAR

90387-06197-00

—
Out of stock

56

WASHER, PLATE(36Y)

90201-063J2-00

—
Out of stock

57

BOLT, FLANGE

95817-06025-00

—
Out of stock

58

JOINT, UNIVERSAL 2

J45-23845-00-00

—
Out of stock

59

JOINT 2

88T-18157-00-00

—
Out of stock

60

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

61

JOINT 1

8CW-18156-00-00

—
Out of stock

62

PIN, COTTER (1W2)

91701-06022-00

—
Out of stock

63

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

64

JOINT, ROD 1

88T-18116-01-00

—
Out of stock

65

ROD, SHIFT

26H-18115-00-00

—
Out of stock

66

NUT, HEXAGON

95314-06600-00

—
Out of stock

67

NUT (2H9)

90170-06228-00

—
Out of stock

68

RIVET, BLIND

90267-48018-00

—
Out of stock

69

. BUZZER

8CR-83383-00-00

1
Out of stock

70

BOLT(3JK)

97027-05020-00

—
Out of stock

71

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

72

BUZZER

8CW-83383-00-00

—
Out of stock

73

LABEL, WARNING 3

8DY-77763-00-00

1
Out of stock

74

. LABEL, WARNING

8DY-77761-00-00

1
Out of stock

75

CHAIN (68L)

94860-0206-8

1
Out of stock
