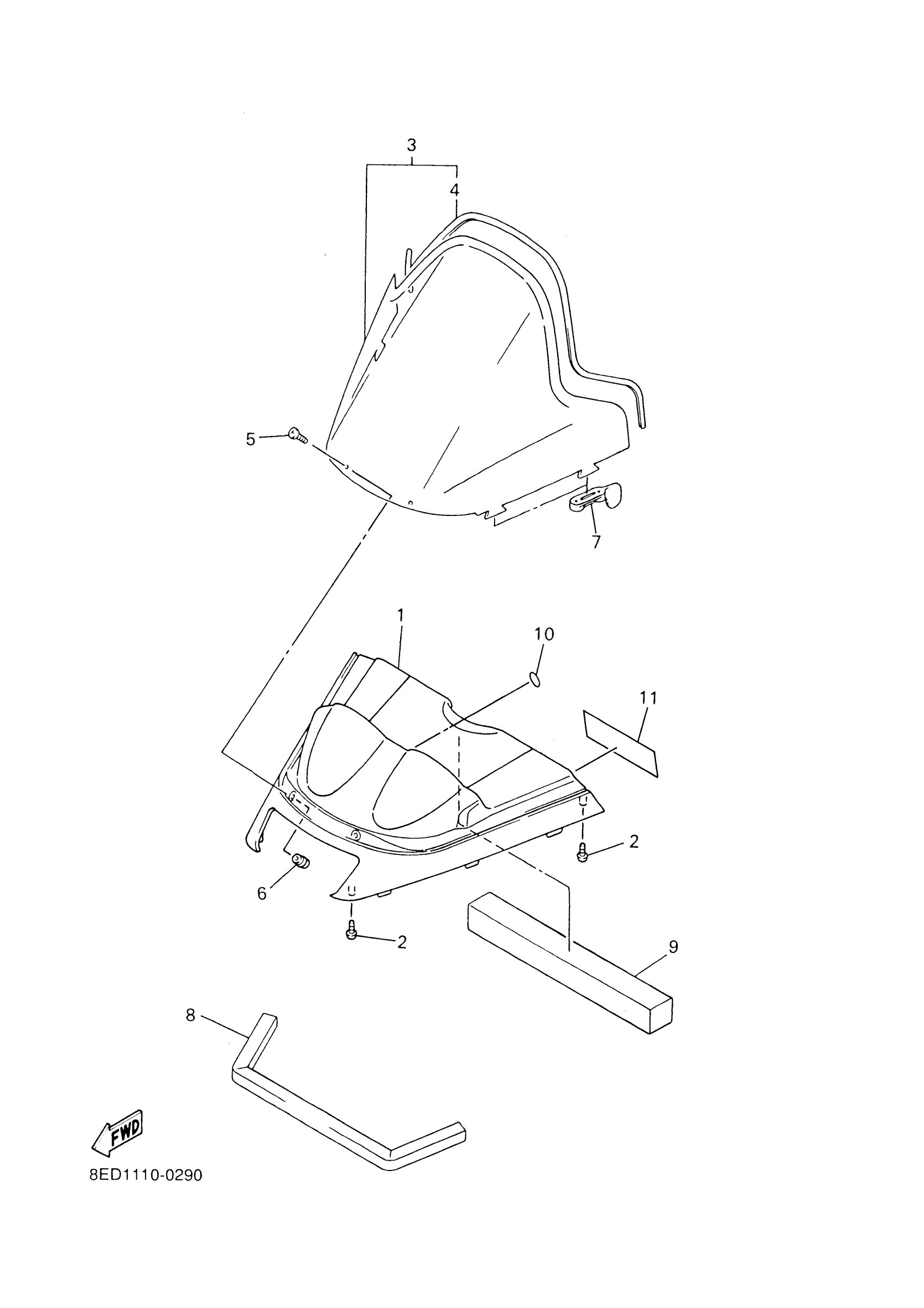

Yamaha MM700D (MOUNTAIN MAX) 8ED1 2000 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8DF-77251-01-00

Unavailable

1

COVER, HEADLIGHT

8DF-77251-10-00

Unavailable

2

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

3

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

3

WINDSHIELD COMP.

8CR-77210-10-00

Unavailable

4

TRIM,UPPER

87K-77213-00-00

Unavailable

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.66

6

NUT(1KT)

90179-05523-00

$4.33

7

FASTNER

82H-77223-00-00

$7.13

8

DAMPER, NOISE 19

8CR-77279-00-00

Unavailable

9

SHIELD, NOISE 2

8CR-2199J-00-00

$28.15

10

EMBLEM

4XV-2341B-00-00

$21.57

11

LABEL, WARNING 1

8DS-77761-00-00

Unavailable
