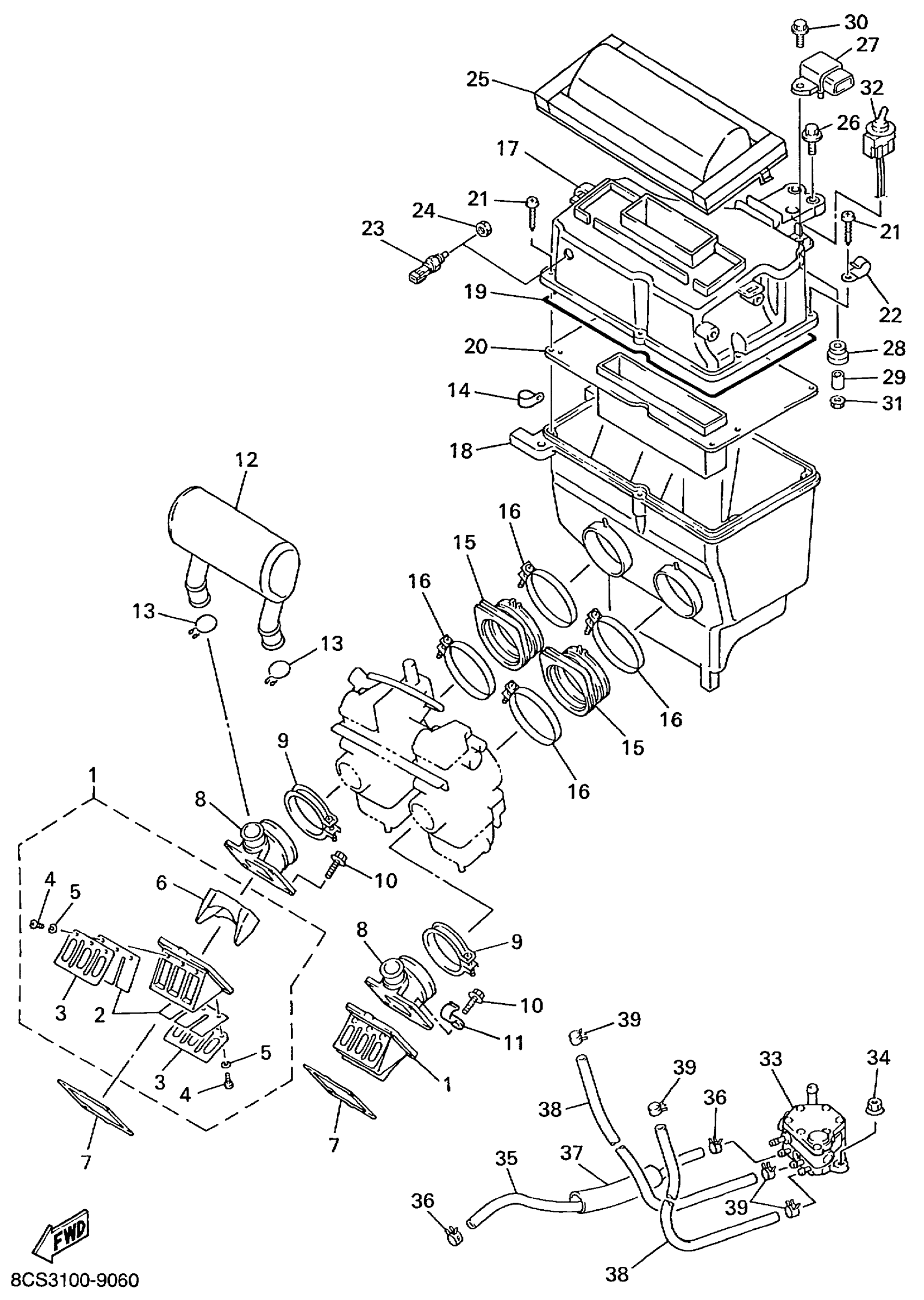

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

4DA-13610-01-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$26.43

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.54

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

80L-13621-01-00

$9.80

8

MANIFOLD, INTAKE

8CR-13555-00-00

Unavailable

9

BAND

86M-13575-00-00

$16.45

10

BOLT, FLANGE

95817-06020-00

$2.69

11

CLAMP (4G0)

90462-08078-00

$5.17

12

CHAMBER, AIR

8CR-13581-00-00

$29.94

13

CLIP(8V0)

90467-24096-00

$6.38

14

CLAMP(4MX)

90465-06376-00

$7.08

15

JOINT, AIR CLEANER 1

8CR-14453-00-00

Unavailable

16

CLAMP, HOSE (29L)

90460-68230-00

$12.54

17

SILENCER, INTAKE 1

8CW-14431-01-00

$27.11

18

SILENCER, INTAKE 2

8CR-14441-01-00

Unavailable

19

SEAL

51Y-14462-00-00

$11.61

20

PLATE

8CR-14477-00-00

Unavailable

21

SCREW, TAPPING(82M)

90167-05043-00

$5.62

22

CLAMP

90465-08028-00

$4.62

23

THERMO UNIT

8CC-83591-00-00

Unavailable

24

NUT

90179-12628-00

Unavailable

25

ELEMENT ASSY, AIR CLEANER

8CR-14450-00-00

$29.29

26

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.80

27

SENSOR, PRESSURE

8CC-82380-00-00

Unavailable

28

GROMMET

90480-16113-00

Unavailable

29

COLLAR

90387-061K9-00

$1.08

30

BOLT, FLANGE

95817-06025-00

$1.46

31

NUT, FLANGE(4MV)

95707-06500-00

$0.78

32

FUEL SWITCH COMP

8CC-8399Y-00-00

Unavailable

33

FUEL PUMP ASSY

8CR-24410-01-00

$190.38

34

NUT, FLANGE(4MV)

95707-06500-00

$0.78

35

HOSE (L400)

90445-116K9-00

$19.08

36

CLIP (7K7)

90467-11044-00

$5.10

37

HOSE (L150)

90445-226J7-00

Unavailable

38

HOSE (L420)

90445-092K1-00

$10.63

39

CLIP (8A1)

90467-09026-00

$2.72
