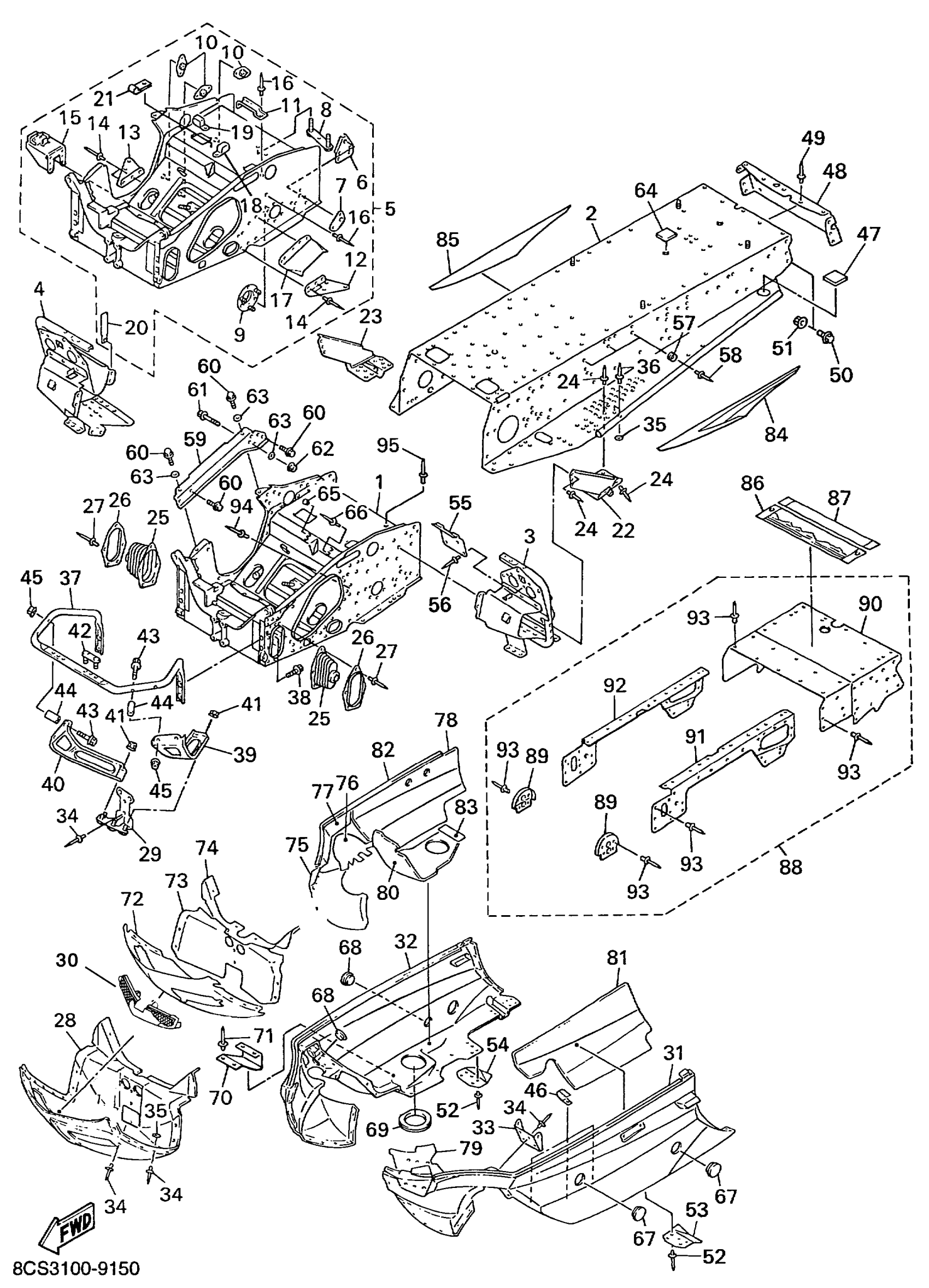

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8CR-21940-07-00

$2,844.99

2

REAR FRAME COMP.

8CR-21950-07-00

$1,484.99

3

FOOTREST COMP. 1

8CR-21960-08-00

Unavailable

4

FOOTREST COMP. 2

8CR-21970-08-00

Unavailable

5

FRAME CONNECTION KIT

8CR-W2195-03-00

Unavailable

6

BRACKET, MAIN TRACK 1

8CR-21943-01-00

$3.54

7

BRACKET, MAIN TRACK 2

8CR-21953-00-00

$1.78

8

BRACKET 3

8CR-2196F-00-00

$5.80

9

. HOUSING, REINF SUB-ASSY (LH)

8CR-21920-00-00

Unavailable

10

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

11

CLAMP, FUEL PIPE

8CR-21977-00-00

$3.29

12

PANEL, SUB FRAME 6

8CR-21917-00-00

$20.57

13

PANEL, SUB-FRAME 7

8CR-21918-00-00

$20.57

14

RIVET, BLIND

90267-48016-00

$7.85

15

STAY, MUFFER

8CR-2194J-00-00

$61.74

16

RIVET, BLIND(8CR)

90267-47186-00

$2.31

17

COVER 2

8CR-2198G-00-00

$16.65

18

CLAMP(83R)

90461-08113-00

$10.48

19

CLAMP(8CR)

90461-06142-00

Unavailable

20

CLAMP

90462-10236-00

$8.97

21

CLAMP

90461-10148-00

$8.78

22

PIPE, PIVOT 1

8DF-21941-00-00

Unavailable

23

PIPE, PIVOT 2

8DF-21951-00-00

$53.55

24

RIVET

90269-07080-00

$3.37

25

COVER 1

8CR-2198F-00-00

Unavailable

26

PLATE, STRG BRACKET 1

8CR-2195E-00-00

Unavailable

27

RIVET, BLIND

90267-47197-00

$1.56

28

PANEL, SUB FRAME 1

8CR-21912-01-00

Unavailable

29

PLATE, BACK UP

8CR-23788-11-00

Unavailable

30

STAY 4

8CR-77128-00-00

Unavailable

31

FRAME UNDER 1

8CR-2196A-03-00

Unavailable

32

FRAME, UNDER 2

8CR-2196E-03-00

Unavailable

33

BRACKET, GUARD FITTING

8CR-21972-00-00

Unavailable

34

RIVET, BLIND

90267-48018-00

Unavailable

35

WASHER PLATE 829771780000

90201-05033-00

$7.09

36

RIVET, BLIND(8CH)

90267-47187-00

$1.84

37

BUMPER, FRONT 2

8CR-77512-00-00

$89.51

38

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

39

BRACKET, FRONT

8CR-21949-10-00

$20.51

40

BRACKET, FRONT BUMPER

8CR-21959-10-00

Unavailable

41

NUT, SELF-LOCKING

90185-08169-00

$7.09

42

BRACKET, 5

8CR-2196M-00-00

$4.98

43

BOLT, FLANGE

95817-08040-00

$5.43

44

COLLAR(8CR)

90387-0810F-00

Unavailable

45

NUT, FLANGE(JN5)

95707-08500-00

$1.49

46

CLAMP(4MX)

90465-06376-00

$7.08

47

COVER 3

8CR-2198J-00-00

$3.11

48

REINEFORCEMENT, FRAME REAR 1

8CR-21923-02-00

Unavailable

49

RIVET, BLIND(8CR)

90267-47186-00

$2.31

50

BOLT, SMALL FLANGE

95027-08016-00

$6.68

51

NUT, FLANGE(JN5)

95707-08500-00

$1.49

52

RIVET, BLIND

90267-48018-00

Unavailable

53

PROTECTOR, FRAME

8CR-21978-00-00

$22.77

54

PROTECTOR, FRAME

8CR-2197B-00-00

$22.54

55

HOOK

8CR-21973-00-00

Unavailable

56

RIVET, BLIND(8CR)

90267-47186-00

$2.31

57

BUTT0N

81K-2471F-00-00

Unavailable

58

RIVET, BLIND(81K)

90267-40135-00

Unavailable

59

REINEFORCEMENT, FRAME REAR 1

8CR-21921-01-00

Unavailable

60

BOLT, FLANGE

95817-10020-00

$5.10

61

BOLT,FLANGE

95817-10065-00

$4.72

62

NUT, FLANGE(8AB)

95707-10500-00

$1.66

63

WASHER, PLAIN(3BM)

92907-10200-00

$3.58

64

COVER 3

8CR-2198J-00-00

$3.11

65

PLUG (17J)

90338-10132-00

$2.63

66

RIVET, BLIND

90267-48177-00

$1.71

67

PLUG (8H8)

90338-44093-00

$13.91

68

PLUG(8CJ)

90338-30256-00

$7.15

69

SPACER

8DF-21998-10-00

$23.63

70

PROTECTOR, FRAME 3

8CS-2197C-00-00

Unavailable

71

RIVET, BLIND

90267-48018-00

Unavailable

72

LINING, SHROUD 1

8CR-77261-00-00

Unavailable

73

LINING, SHROUD 2

8CR-77262-00-00

$28.62

74

LINING, SHROUD 3

8CR-77263-00-00

Unavailable

75

LINING, SHROUD 4

8CR-77264-00-00

$27.25

76

LINING, SHROUD 5

8CR-77265-00-00

Unavailable

77

LINING, SHROUD 6

8CR-77266-00-00

Unavailable

78

LINING, SHROUD 7

8CR-77267-01-00

$27.68

79

LINING,SHROUD 8

8CR-77268-00-00

$20.60

80

LINING, SHROUD 9

8CR-77269-00-00

Unavailable

81

DAMPER, NOISE 11

8CR-77271-00-00

Unavailable

82

TAPE, 5

8CR-7717J-00-00

Unavailable

83

TRIM 1

8CR-77165-00-00

$2.42

84

EMBLEM 1

8CS-77351-20-00

Unavailable

85

EMBLEM 2

8CS-77352-20-00

Unavailable

86

EMBLEM 1

8CY-77141-10-00

Unavailable

87

LABEL, WARNING 2

8CY-77762-00-00

Unavailable

88

PANEL, SUB-FRAME KIT

8CW-W2196-02-00

$451.89

89

PANEL,SUB-FRAME5

8CW-21916-02-00

$287.49

90

BRACKET, MAIN TRACK 1

8CW-21943-00-00

$4.11

91

PATCH 4

8CW-21964-02-00

Unavailable

92

PATCH 5

8CW-21965-02-00

Unavailable

93

RIVET, BLIND(8CR)

90267-47186-00

$2.31

94

RIVET, BLIND

90267-48177-00

$1.71

95

RIVET, BLIND(8CR)

90267-47186-00

$2.31
