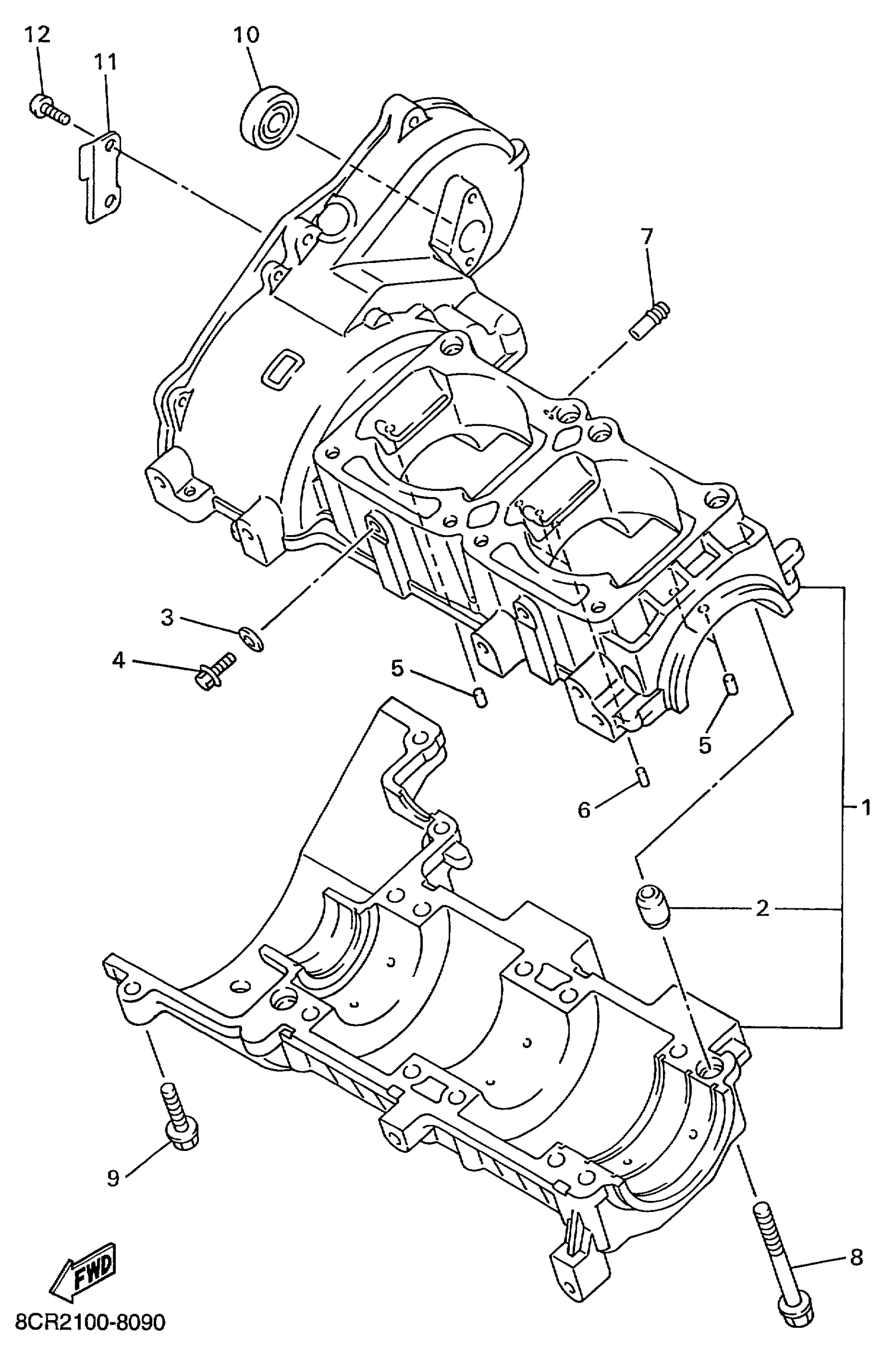

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8CR-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.12

3

WASHER, PLATE 3411117500

90201-08087-00

$3.13

4

BOLT, SMALL FLANGE

95027-08016-00

$6.68

5

PIN, DOWEL (8H1)

93604-07141-00

$1.35

6

PIN (2H7)

93603-10049-00

$2.52

7

JOINT, BREATHER

J38-11116-00-00

$2.77

8

BOLT, FLANGE(JF2)

95817-08080-00

$3.37

9

BOLT, FLANGE

95817-08035-00

$6.68

10

BEARING(82M)

93306-20117-00

$29.07

11

CLAMP

90461-12145-00

Unavailable

12

SCREW, PAN

98517-06012-00

$3.14
